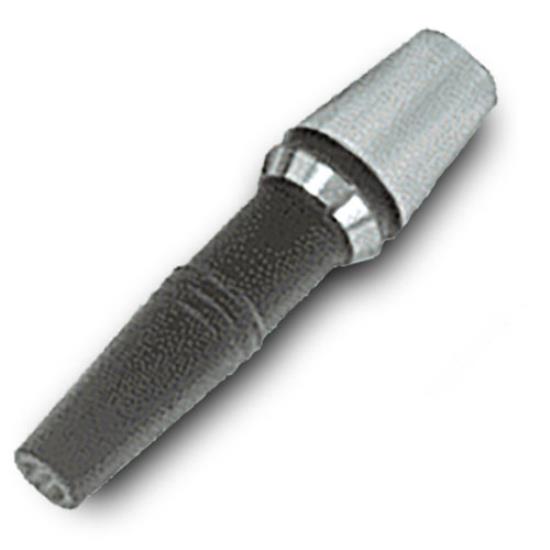

Er32srk6x85 Rotary Tooling Shrinkin Iso Item #Er32srk6x85 Ingersoll Part #4502530 Dcon - Bore Diameter : 6.00 Mm. Bd - Body Diameter : 11.00 Mm. Lb - Body Length: 69.50 Mm. Bhta - Body Half Taper Angle: 4.0. Ccms - Connection Code Machine Side: Er32. Cnsc - Coolant Entry Style Code: 1. Cxsc - Coolant Exit Style Code: 1. Lbx - Body Length Max.: 85.00 Mm. Lscn - Clamping Length Min.: 18.00 Mm. Lscx - Clamping Length Max.: 26.00 Mm. Bdx - Body Diameter Max.: 20.80 Mm.

• ER Series Integral Collet
• Thermal Shrink Adaption (Metric)
• 100 Bar Max
• For use with Carbide Shank tooling ONLY
• *See Notes below
