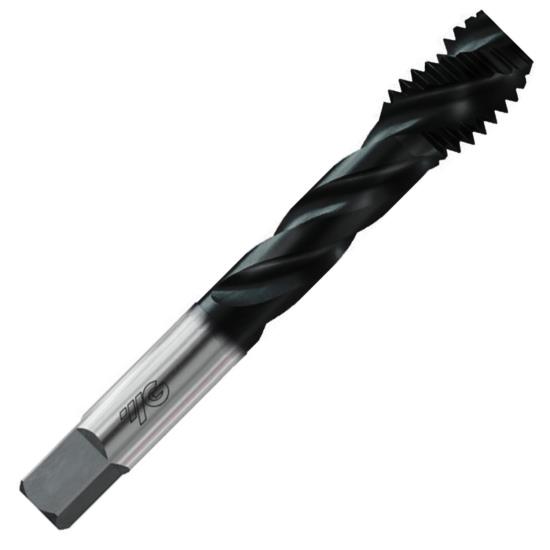

M12 x 1.75 D6, 2 Flute, 50° Spiral Flute Modified Bottoming CNC Tap, YG TAP ALU, HSS-E With Hardslick Coating For Aluminum & Die Cast

M12 x 1.75 D6, 2 Flute, 50° Spiral Flute Modified Bottoming CNC Tap, YG TAP ALU, HSS-E With Hardslick Coating For Aluminum & Die Cast M12 x 1.75 D6, 2 Flute, 50° Spiral Flute Modified Bottoming CNC Tap, YG TAP ALU, HSS-E With Hardslick Coating For Aluminum & Die Cast M12 x 1.75 D6, 2 Flute, 50° Spiral Flute Modified Bottoming CNC Tap, YG TAP ALU, HSS-E With Hardslick Coating For Aluminum & Die Cast
YG-1 TOOL CO.
BX506
BX506
BX506
M12 x 1.75
Weight: 0.105 LBS
Brand: YG-1 TOOL CO.
$86.86
(31% off)
$60.32
each
Add To My Favorites Coupon Available
Technical Details & Downloads

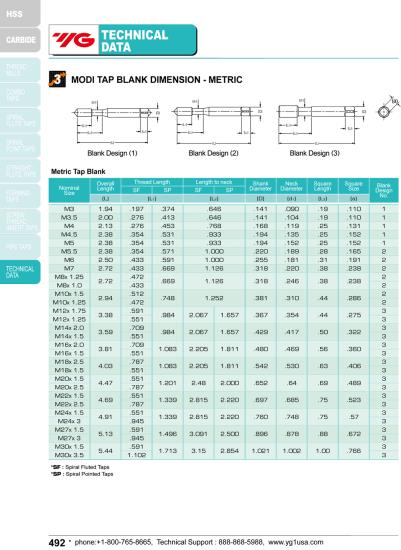

Technical/Extra Information Catalog Page Catalog Page
Product Description

Yg-1 Yg Tap Alu Series Bx: Cnc Tap For Aluminum Wrought Alloys And Die Cast Aluminum. Taps Are Produced Premium Hss-E (5% Cobalt Hss) And Come With Hardslick Coating. Taps Are Right Hand Cut, Right Hand Thread With 50° Right Hand Spiral, Spiral Flute, Modified Bottoming Style Tap With 2-3 Pitch Lead Threads Are Primarily Applicable For Tapping Blind Holes At Depths To 2.5Xd. Uscti Shank Cnc Tap With No Coolant Hole - Size: M12 X 1.75 D6, 2 Flute

  • YG-1 YG TAP ALU Series BX: CNC Tap For Aluminum Wrought Alloys, Die Cast
  • Made from Premium HSS-E (5% Cobalt HSS) With Hardslick Coating
  • Right Hand Cut, Right Hand Thread with 50° Right Hand Spiral Flute
  • Spiral Flute Modified Bottoming Style with 2-3 Pitch Lead threads
  • Primarily applicable for tapping Blind Holes at depths to 2.5xD
  • USCTI Shank CNC Tap With No Coolant Hole

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$75.00 Economy (5 - 7 days)**
(This deal only applies to our Local Florida in stock items)		 $0.00 5 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
13
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
BX506
Thread Size
M12 x 1.75
Number Of Flutes
2
Helix Angle
50°
Type Of Tap
CNC Tap
Thread Direction
Right Hand
Thread Limit
D6
Thread Type
Metric
Tap Shank Type
USCTI Shank CNC Tap
Type Of Hole To Tap
Blind Hole
Tool Coating
Hardslick Coated
Tool Substrate Material
HSS-E (5% Cobalt HSS)
Primary Application
Aluminum Wrought Alloys, Die Cast
Hand Cutting Direction
Right Hand
Country of Origin
Korea, Republic of
Hand Helix Direction
Right Hand
Series
BX
Style
Modified Bottoming
Flute End Type
Spiral Flute
Thread Chamfer
2-3 Pitch Lead
Model
YG TAP ALU
Size
0.4724" M12 x 1.75
Type
CNC Tap
Coolant Through
No Coolant Hole
Max Depth Of Thread
2.5xD
