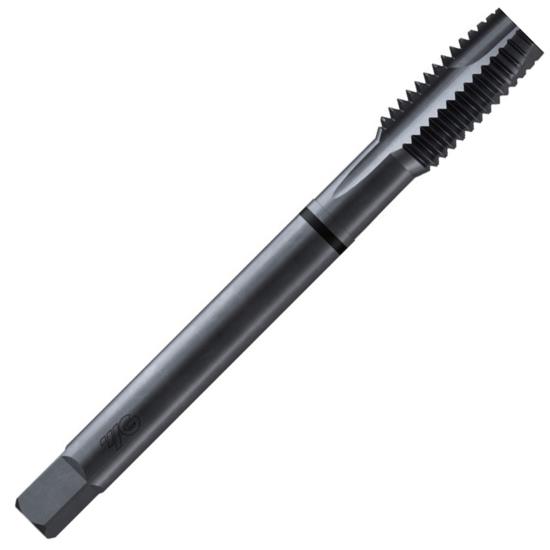

4-48 H2, 2 Flute Sprial Point Plug DIN Length-ANSI Shank CNC Tap, COMBO TAP, HSS-E With Steam Oxide Finish For Multi-Purpose
4-48 H2, 2 Flute Sprial Point Plug DIN Length-ANSI Shank CNC Tap, COMBO TAP, HSS-E With Steam Oxide Finish For Multi-Purpose
4-48 H2, 2 Flute Sprial Point Plug DIN Length-ANSI Shank CNC Tap, COMBO TAP, HSS-E With Steam Oxide Finish For Multi-Purpose
TC182S
TC182S
TC182S
4-48 0.1120 DIN LENGTH
Weight: 0.012 LBS
Brand: YG-1 TOOL CO.
$24.29
(31% off)
$16.87
each
Factory
0
Additional Product Details
Technical Details
- Manufacturer
- YG-1 TOOL CO.
- Manufacturer Part Number
- TC182S
- Thread Size
- 4-48 0.1120
- Number Of Flutes
- 2
- Helix Angle
- N/A
- Type Of Tap
- CNC Tap
- Thread Direction
- Right Hand
- Thread Limit
- H2
- Thread Type
- UN
- Tap Shank Type
- DIN Length USCTI Shank CNC Tap
- Type Of Hole To Tap
- Through Hole
- Tool Coating
- Steam Oxide Finish
- Tool Substrate Material
- HSS-E (5% Cobalt HSS)
- Primary Application
- Universal Multi-Purpose
- Hand Cutting Direction
- Right Hand
- Country of Origin
- Korea, Republic of
- Hand Helix Direction
- N/A
- Series
- TC-S
- Style
- Plug
- Flute End Type
- Spiral Point
- Thread Chamfer
- 4-5 Pitch Lead
- Model
- COMBO TAP
- Size
- 0.1120" 4-48 DIN LENGTH
- Type
- CNC Tap, DIN Length
- Coolant Through
- No Coolant Hole
- Max Depth Of Thread
- 3.0xD
