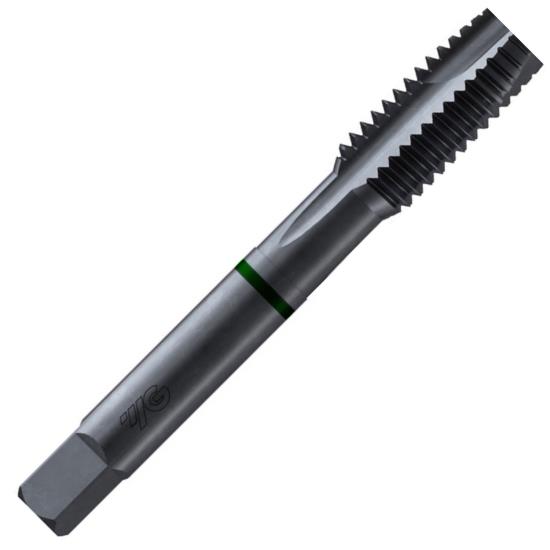

1-8 H6, 3 Flute Spiral Point Plug CNC Tap, COMBO TAP STAINLESS, HSS-E With Steam Oxide Finish For Free-Machining Stainless Steels to 23HRc

YG-1 TOOL CO.

TCF786S

1-8 1.0000

Weight: 0.758 LBS

Brand: YG-1 TOOL CO.

$172.78

(30% off)

$121.17

each

Add To My Favorites

Technical Details & Downloads

Technical/Extra Information

Product Description

Yg-1 Spiral Flute Combo Tap Stainless Is Specifically Designed For Tapping Free-Machining Stainless Steels Up To 23Hrc. Yg-1'S Patented Geometry Is Designed To Provide Smoother Tapping With Excellent Chip Evacuation, While Reducing Tap Breakage And Ensuring Accurate Thread Depth And Quality By Eliminating Loose Threads Due To Tap Over And Under Feeding. It's Optimized Flank Geometry Reduces Cutting Forces And Tap Wear, Extending Tool Life And Providing Constant Thread Quality And Process Reliability Even In Less Rigid Maching Conditions.

YG-1 COMBO TAP STAINLESS Series TCF-S: CNC Tap For Free-Machining Stainless <23HRc
Made from Premium HSS-E (5% Cobalt HSS) With Steam Oxide Finish
Right Hand Cut, Right Hand Thread with Spiral Point
Spiral Point Plug Style with 4-5 Pitch Lead threads
Primarily applicable for tapping Through Holes at depths to 3.0xD
USCTI Shank CNC Tap With No Coolant Hole

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of

YG-1 TOOL CO. Brand Home

Shipping & Delivery Options

VERNON HILLS, ILLINOIS, USA

Suncoast Shipping Deals

Min. order amount	Shipping Option	Special Rate	Max Weight
$399.00	UPS Ground 1 – 4 Business days (Lower 48 States)	$0.00	10 LBS
$75.00	Economy (5 - 7 days)** (This deal only applies to our Local Florida in stock items)	$0.00	5 LBS
$25.00	UPS Ground 1 – 4 Business days (Lower 48 States)	$8.99	15 LBS
$499.00	UPS Blue 2 Business Days	$9.99	7 LBS
$399.00	UPS Blue 2 Business Days	$13.99	5 LBS
$50.00	UPS Blue 2 Business Days	$15.99	6 LBS
$50.00	UPS Red by 10:30am 1 Business Day	$31.99	2 LBS

$25.00 MINIMUM ORDER

If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day

Factory Stock

Additional Product Details

Technical Details

Manufacturer: YG-1 TOOL CO.
Manufacturer Part Number: TCF786S
Thread Size: 1-8 1.0000
Number Of Flutes: 3
Helix Angle: N/A
Type Of Tap: CNC Tap
Thread Direction: Right Hand
Thread Limit: H6
Thread Type: UN
Tap Shank Type: USCTI Shank CNC Tap
Type Of Hole To Tap: Through Hole
Tool Coating: Steam Oxide Finish
Tool Substrate Material: HSS-E (5% Cobalt HSS)
Primary Application: Free-Machining Stainless <23HRc
Hand Cutting Direction: Right Hand
Country of Origin: Korea, Republic of
Hand Helix Direction: N/A
Series: TCF-S
Style: Plug
Flute End Type: Spiral Point
Thread Chamfer: 4-5 Pitch Lead
Model: COMBO TAP STAINLESS
Size: 1.0000" 1-8
Type: CNC Tap
Coolant Through: No Coolant Hole
Max Depth Of Thread: 3.0xD

1-8 H6, 3 Flute Spiral Point Plug CNC Tap, COMBO TAP STAINLESS, HSS-E With Steam Oxide Finish For Free-Machining Stainless Steels to 23HRc
