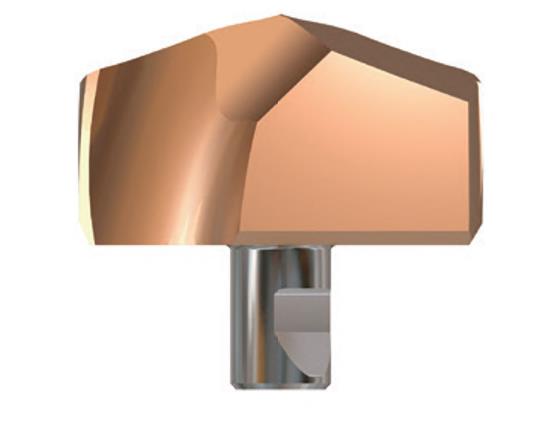

14.10mm (0.5551") i-One Drill Carbide Insert (Series S14-1) With AlCrN Based H-Coating For Hi-Performance Drilling Steels & Cast Iron. 5.0mm Insert Thickness. YG-1 Part # Y141H1410

14.10mm (0.5551") i-One Drill Carbide Insert (Series S14-1) With AlCrN Based H-Coating For Hi-Performance Drilling Steels & Cast Iron. 5.0mm Insert Thickness. YG-1 Part # Y141H1410
YG-1 TOOL CO.
Y141H1410
Y141H1410
Y141H1410
14.10mm (0.5551"), Series S14-1
Uses Screw # TX1415P7
Weight: 0.025 LBS
Brand: YG-1 TOOL CO.
$120.35
(30% off)
$84.40
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information Catalog Page Catalog Page
Product Description

14.10Mm (0.5551") I-One Drill Carbide Insert (Series S14-1) With Alcrn Based H-Coating For Hi-Performance Drilling Steels & Cast Iron. 5.0Mm Insert Thickness. Yg-1 Part # Y141h1410

  • Drill Inserts are Not Included With The i-One Drill Holder, Inserts Are Sold Separately
  • Micro grain carbide inserts with AlCrN Based multi-layered H-coating are made for drilling general steels and cast iron
  • Multi layered ‘H’-coating reduces the cracking and provides higher shear strength while achieving excellent oxidation resistance and hot hardness
  • Optimized point geometry of i-ONE Drills ensures centering ability and smoother cutting
  • Self Centering 140° point by Radius Thinning and Chip Breaking
  • Ground Negative land on cutting edge for Reliable Tool Life
  • Secure & Quick clamping system

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
28
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
Y141H1410
Drill Point Angle
140°
Tool Coating
H-Coating, AlCrN
Tool Substrate Material
Carbide
Primary Application
Most Steel Materials and Cast Iron
Country of Origin
Korea, Republic of
Series
Series S14-1
Screw Type
Uses Screw # TX1415P7
Size
0.5551" 14.10mm
Type
i-One Drill
