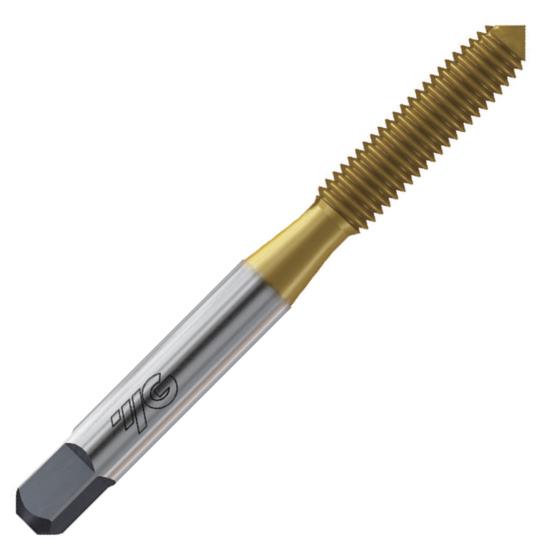

9/16-18 H10 Thread Roll Form Plug CNC Tap, 4 Lobe, HSS-E With TiN Coating For Multi-Purpose

9/16-18 H10 Thread Roll Form Plug CNC Tap, 4 Lobe, HSS-E With TiN Coating For Multi-Purpose 9/16-18 H10 Thread Roll Form Plug CNC Tap, 4 Lobe, HSS-E With TiN Coating For Multi-Purpose 9/16-18 H10 Thread Roll Form Plug CNC Tap, 4 Lobe, HSS-E With TiN Coating For Multi-Purpose
YG-1 TOOL CO.
Z1620
Z1620
Z1620
9/16-18 0.5625 FORM
Weight: 0.153 LBS
Brand: YG-1 TOOL CO.
$100.01
(31% off)
$69.45
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information Catalog Page Catalog Page
Product Description

Yg-1 Yg Tap Forming Series Z1: Forming Tap For Multi-Purpose Use. Taps Are Produced From Premium Hss-E (5% Cobalt Hss) And Come With Tin Coating. Taps Are Right Hand Cut, Right Hand Thread Fluteless Thread Forming Tap. Fluteless Plug Style Taps With 4-5 Pitch Lead Threads Are Primarily Applicable For Tapping Through Holes At Depths To 3.0Xd. Uscti Shank Standard Form Tap With No Oil Groove

  • YG-1 YG TAP FORMING Series Z1: Forming Tap For Multi-Purpose Use
  • Made from Premium HSS-E (5% Cobalt HSS) With TiN Coating
  • Right Hand Cut, Right Hand Thread Fluteless Thread Forming Tap
  • Fluteless Plug Style with 4-5 Pitch Lead threads
  • Primarily applicable for tapping Through Holes at depths to 3.0xD
  • USCTI Shank Standard Form Tap With No Oil Groove

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
26
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
Z1620
Thread Size
9/16-18 0.5625
Number Of Flutes
4
Helix Angle
N/A
Type Of Tap
Forming Tap
Thread Direction
Right Hand
Thread Limit
H10
Thread Type
UN
Tap Shank Type
USCTI Shank Standard Form Tap
Type Of Hole To Tap
Through Hole
Tool Coating
TiN Coated
Tool Substrate Material
HSS-E (5% Cobalt HSS)
Primary Application
Multi-Purpose
Hand Cutting Direction
Right Hand
Country of Origin
Korea, Republic of
Hand Helix Direction
N/A
Series
Z1
Style
Plug
Flute End Type
Fluteless
Thread Chamfer
4-5 Pitch Lead
Model
YG TAP FORMING
Size
0.5625" 9/16-18 FORM
Type
Standard Forming Tap
Coolant Through
No Oil Groove
Max Depth Of Thread
3.0xD
