0.9055" - 0.9248" Range Series F-3 (3XD) i-Dream Drill Holder, Coolant Fed - 2-23/32" Max Drill Depth x 1" Shank x 0.8819" Drill Body Diameter x 6-7/64" Overall Length. YG-1 Part # ZF0303

In observance of Independence Day, this vendor will be closed on Friday, July 3rd. Orders and shipping may be delayed. Normal business will resume on Monday, July 6th.
0.9055" - 0.9248" Range Series F-3 (3XD) i-Dream Drill Holder, Coolant Fed - 2-23/32" Max Drill Depth x 1" Shank x 0.8819" Drill Body Diameter x 6-7/64" Overall Length. YG-1 Part # ZF0303 0.9055" - 0.9248" Range Series F-3 (3XD) i-Dream Drill Holder, Coolant Fed - 2-23/32" Max Drill Depth x 1" Shank x 0.8819" Drill Body Diameter x 6-7/64" Overall Length. YG-1 Part # ZF0303 0.9055" - 0.9248" Range Series F-3 (3XD) i-Dream Drill Holder, Coolant Fed - 2-23/32" Max Drill Depth x 1" Shank x 0.8819" Drill Body Diameter x 6-7/64" Overall Length. YG-1 Part # ZF0303
YG-1 TOOL CO.
ZF0303
ZF0303
ZF0303
0.9055" - 0.9248", Series F-3
Weight: 1.097 LBS
Brand: YG-1 TOOL CO.
$394.85
(30% off)
$276.91
each
Add To My Favorites Coupon Available
Technical Details & Downloads

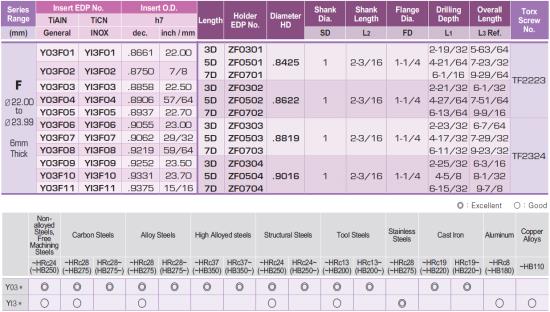

Technical/Extra Information Catalog Page Catalog Page
Product Description

0.9055" - 0.9248" Range Series F-3 (3Xd) I-Dream Drill Holder, Coolant Fed - 2-23/32" Max Drill Depth X 1" Shank X 0.8819" Drill Body Diameter X 6-7/64" Overall Length. Yg-1 Part # Zf0303

  • YG-1 i-Dream Drill Holders are made from a special alloy steel that maintains its hardness and toughness under high temperatures with generous coolant holes for effective coolant flow.
  • They come standard with an innovative surface treatment that improves wear resistance and reduces corrosion.
  • The High Performance flute design allows maximum chip evacuation and minimum interference.
  • A Secure and accurate insert seat results in accurate repeatability and maximum concentricity.
  • Drill Inserts are Not Included With The i-Dream Drill Holder, Inserts Are Sold Separately
  • TiAlN Coated Inserts For Multi-Purpose Use Are Good For Most Types of Steel and Cast Iron.
  • INOX TiCN Coated Inserts Are For Tough, Ductile Materials and Stainless Steels - A light, sharp cutting edge minimizes cutting forces and reduces build-up.

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$75.00 Economy (5 - 7 days)**
(This deal only applies to our Local Florida in stock items)		 $0.00 5 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
22
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
ZF0303
Body Diameter
0.8819" Drill Body Diameter
Length Of Flute
2.7188"
Overall Length
6.1094"
Shank Diameter
1.0000"
Number Of Flutes
2
Drill Type
Indexable i-Dream Drill
Tool Coating
Nickel Based
Tool Substrate Material
Special Alloy Steel
Hand Cutting Direction
Right Hand Cut
Country of Origin
Korea, Republic of
Hand Helix Direction
Right Hand Helix
Series
Series F-3
Style
Spiral Flute
Screw Type
Uses Screw # TF2324
Size
0.9055" - 0.9248" (Series F-3)
Type
i-Dream Drill
Shank Type
Flanged Shank
LOC Multiple
3XD
Shank Length
2.1875"
Coolant Through
With Coolant Holes
Flange Diameter
1.2500"
