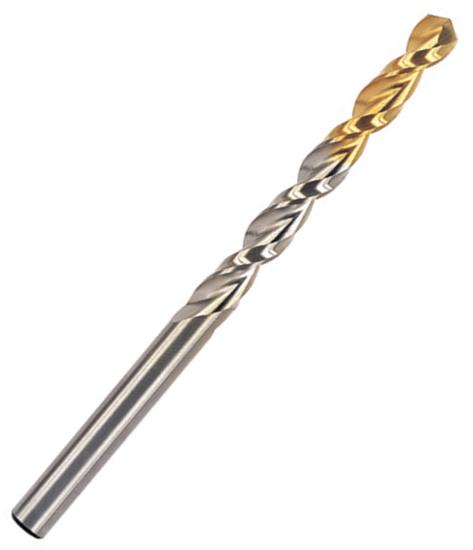

6.9mm Diameter 2 Flute YG Parabolic Flute Jobber Length TiN Coated Tip Gold-P Drill, HSS-Co5% (M35 Cobalt), 130° Split Point, Straight Shank, 69mm Flute Length, 109mm OAL

6.9mm Diameter 2 Flute YG Parabolic Flute Jobber Length TiN Coated Tip Gold-P Drill, HSS-Co5% (M35 Cobalt), 130° Split Point, Straight Shank, 69mm Flute Length, 109mm OAL 6.9mm Diameter 2 Flute YG Parabolic Flute Jobber Length TiN Coated Tip Gold-P Drill, HSS-Co5% (M35 Cobalt), 130° Split Point, Straight Shank, 69mm Flute Length, 109mm OAL 6.9mm Diameter 2 Flute YG Parabolic Flute Jobber Length TiN Coated Tip Gold-P Drill, HSS-Co5% (M35 Cobalt), 130° Split Point, Straight Shank, 69mm Flute Length, 109mm OAL 6.9mm Diameter 2 Flute YG Parabolic Flute Jobber Length TiN Coated Tip Gold-P Drill, HSS-Co5% (M35 Cobalt), 130° Split Point, Straight Shank, 69mm Flute Length, 109mm OAL 6.9mm Diameter 2 Flute YG Parabolic Flute Jobber Length TiN Coated Tip Gold-P Drill, HSS-Co5% (M35 Cobalt), 130° Split Point, Straight Shank, 69mm Flute Length, 109mm OAL 6.9mm Diameter 2 Flute YG Parabolic Flute Jobber Length TiN Coated Tip Gold-P Drill, HSS-Co5% (M35 Cobalt), 130° Split Point, Straight Shank, 69mm Flute Length, 109mm OAL
YG-1 TOOL CO.
DLGP506069
DLGP506069
0.2717" 6.9mm
Weight: 0.071 LBS
Brand: YG-1 TOOL CO.
$8.90
(25% off)
$6.69
Each
Add To My Favorites
Pricing Details
Quantity Price
1-9 $8.90/Each
10 + $6.69/Each
Technical Details & Downloads
Technical/Extra Information Catalog Page Catalog Page
Product Description

This Yg-1 Drill Bit Is A High-Speed Steel Cobalt (Hss-Co5%) Jobber-Length Drill Bit With A Straight Shank And A Gold-P Finish. The Gold-P Finish Enhances Durability And Reduces Friction During Drilling Operations.

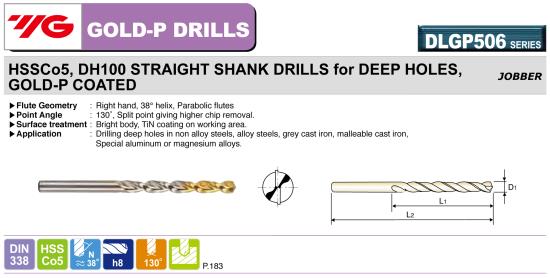

  • YG parabolic flute jobber length HSS-Co5% (M35 Cobalt) straight shank Gold-P drills
  • Bright drill body with TiN coating on the working area for a competitively priced drill with the same performance as full TiN coating
  • Right hand spiral, 38° helix parabolic flutes, 130° split point
  • For drilling deep holes in non alloy steels, alloy steels, grey cast iron, malleable cast iron and special aluminum or magnesium alloys
  • Improved chip removal in most materials, especially in deep drilling applications.

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
  • UPS
  • USPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$75.00 Economy (5 - 7 days)**
(This deal only applies to our Local Florida in stock items)		 $0.00 5 LBS
No Minimum UPS Blue 2 Business Days $15.99 8 LBS
$50.00 UPS Blue 2 Business Days $19.99 10 LBS
$50.00 UPS Blue 2 Business Days $32.99 15 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
UPS Ships till 5:30 p.m. & USPS ships till 4 p.m. Eastern Standard Time for same day shipping Monday-Friday except on holidays.
Any backorders for orders placed online will be shipped with no additional freight charges.
Florida Stock
11
Add to Cart
Factory Stock
100
$6.69
each
Add to Cart
More Info

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
DLGP506069
Length Of Flute
2.5984"
Overall Length
4.291"
Shank Diameter
Equals Drill Diameter
Number Of Flutes
2
Drill Point Angle
130°
Drill Type
Jobber Length Drill
Helix Angle
38°
Tool Coating
TiN
Tool Substrate Material
HSS-Co5% M35 Cobalt
Primary Application
General Purpose
Hand Cutting Direction
Right Hand
Inch Or Metric
Metric
Country of Origin
Korea, Republic of
Series
Gold-P Drill
Single Or Double End
Single End
Shank Type
Straight Shank
Drill Diameter
0.2717" 6.9mm
Coolant Through
Without Coolant Holes
