Tool-Flo Flo-Lock Top-Notch Style & Lay-Down Threading Inserts
Shop Tool-Flo Flo-Lock Top-Notch style inserts and lay-down threading inserts at Suncoast Precision Tools, along with matching toolholders and replacement parts. Compare Flo-Lock threading and grooving geometries, or select lay-down inserts by thread form, pitch, hand and grade. Also explore Flo-Cut, miniature boring tools, thread mills and other Tool-Flo systems. Choose a product family below to find tooling for your application.
Flo-Lock Top-Notch Style Inserts
Flo-Lock is Tool-Flo's name for its Top-Notch style threading and grooving tooling. The system includes notch inserts and holders for internal and external applications. Choose a threading insert for the required thread form, or compare square and full-radius grooving geometries. Match insert size, hand and clamping system to the holder, then check groove width, corner radius and depth of cut against the part drawing.

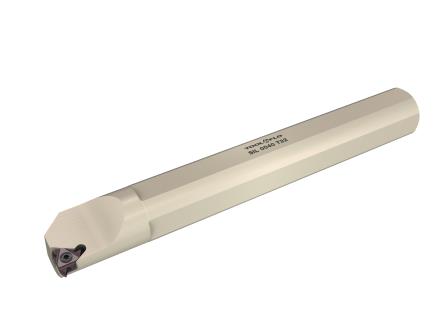

Lay-Down Threading Inserts & Holders
Shop Tool-Flo lay-down threading inserts for internal and external thread turning, with standard and L-style holders and inserts listed separately. Match the thread form, pitch or threads per inch, insert size and cutting hand to the job. Compare the available grades, coatings and chipbreaker geometries, then confirm the insert and holder combination. Use the product specifications to distinguish similar designations before replacing an existing insert.
Flo-Cut, Cut-Off & Deep Grooving Tools
Find Flo-Cut grooving inserts and holders, FC Series cut-off tooling and VDG-style deep grooving tools. Select the tool family for the operation and required cutting depth, then compare cutting width, corner radius and insert geometry. Grooving and parting systems use specific seats, clamps and support components; confirm the complete holder and insert combination before ordering replacements.

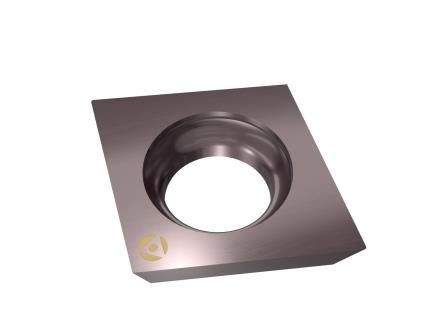

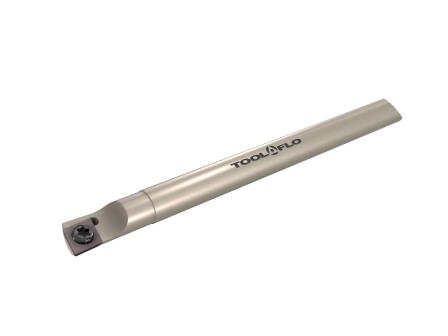

BANTAM, Micro-Cut & Flo-Swiss Tooling
BANTAM indexable internal tooling serves small-bore boring, grooving and threading applications. Micro-Cut provides solid carbide internal tools and matching holders, while Flo-Swiss covers miniature external machining on Swiss-type machines. Check minimum bore, working reach, shank size and cutting hand against the part and machine. Select the exact tool style for boring, grooving, threading or the required external profile.
Thread Mills, Groove Mills & Rigid-Lock
Compare solid carbide thread mills with indexable thread milling inserts and holders. Groove milling uses its own cutter and insert families for the specified groove profile. Rigid-Lock indexable end mills include ball-nose and flat-bottom designs for suitable milling applications. Match the cutter body, insert style and size, then check cutting diameter, reach and work-material recommendations for the selected tool.
On-Edge, Vee Bottom & Poly-Vee Systems
On-Edge and Vee Bottom threading and grooving systems provide additional insert and holder configurations for the required operation. Poly-Vee tooling is selected by the specified groove profile, pitch and number of teeth. Compare the insert designation with the matching holder and part drawing. Similar cutting widths do not establish compatibility between different tool families or seating styles.

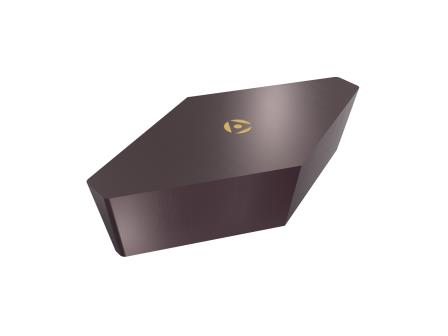

API, Chaser Threading & Profiling Tools
Browse API ring grooving, pipe scarfing, Flo-Tech chaser threading and Flo-Lock notch profiling tools. Match the ring groove geometry, scarfing radius or profiling insert to the required part feature. For chasers, check thread form, pitch, taper, tooth count and any set or sequence designation. Confirm dimensions, cutting orientation and holder compatibility using the individual product specification and catalog drawing.
Interchangeable Shanks & Tool-Flo Replacement Parts
Find standard and anti-vibration shanks for compatible interchangeable heads, along with Tool-Flo replacement parts and Flo-Lock holder components. Check the head connection, shank diameter and permitted reach before choosing a shank. For clamps, screws, seats and other service parts, use the exact holder model and the catalog parts listing to identify the correct replacement.
Choose by Thread, Groove Geometry, Grade & Coating
Start with the Tool-Flo product family, then use the filters available within that category. Threading selections can include Thread Type, Threads Per Inch, Thread Pitch, Hand, Grade and Tool Coating. Flo-Lock grooving filters include Groove Width, Top Corner Radius, Depth Of Cut and Single Or Double End. Holder categories can include Minimum Bore, Shank Diameter and Overall Length. Review the individual product specifications to confirm the complete combination.
Tool-Flo Tool Selection Questions
- Are Flo-Lock inserts the Top-Notch style?
- Yes. Flo-Lock is Tool-Flo's name for its Top-Notch style threading and grooving inserts and holders. When replacing an insert, confirm the exact size, hand, geometry and holder compatibility. The family name alone does not identify the correct replacement for every holder.
- What should I check for internal or external machining?
- Select the application listed for the tool. For internal work, check minimum bore and working reach as well as the cutting geometry. For external work, check the holder orientation, available clearance and permitted cutting depth. Confirm cutting hand from the product specification rather than relying on a representative image.
- What is the difference between thread turning and thread milling?
- Thread turning uses a threading insert on a lathe to follow the thread pitch as the workpiece rotates. Thread milling uses a rotating cutter and a programmed toolpath on a suitable machine. Choose the tool family for your machine and process, and verify the thread form, pitch, diameter range and required reach.
- How do I choose thread pitch and groove dimensions?
- Match the thread standard and pitch or threads per inch to the drawing. For grooving, check width, depth and corner radius; for Poly-Vee tooling, also confirm groove pitch and tooth count. Keep inch and metric dimensions consistent and review the catalog drawing for any additional clearance or profile requirements.
- Which Tool-Flo grade and coating should I select?
- Choose the grade and coating recommended for the work material and cutting conditions in the applicable Tool-Flo catalog. Consider the operation, interrupted or continuous cut and required edge geometry. A coating name alone does not establish material suitability, and not every grade is available in every insert style.
- How can I find a replacement from an existing part number?
- Enter the Tool-Flo part number or insert designation in the vendor search, or browse the matching product family above. The interactive catalogs also provide product-family tables, dimensions and technical information. Compare the complete designation, including size, hand, geometry and grade suffixes. For holder components, check the spare-parts table for that exact holder model before ordering.
