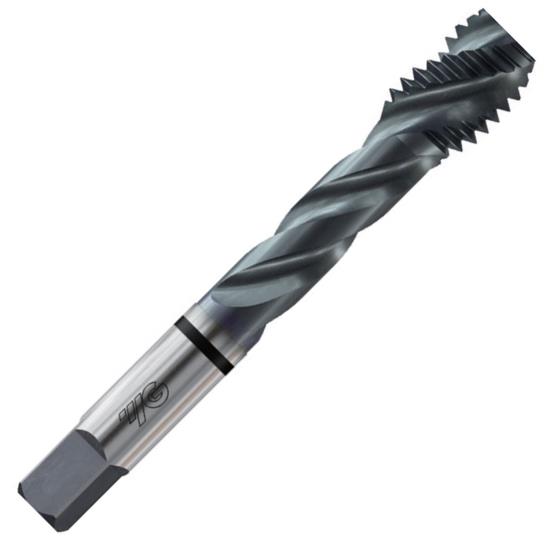

M22 x 2.5 D7, 4 Flute, 40° Spiral Flute Modified Bottoming CNC Tap, COMBO TAP, HSS-E With TiCN Coating For Multi-Purpose

M22 x 2.5 D7, 4 Flute, 40° Spiral Flute Modified Bottoming CNC Tap, COMBO TAP, HSS-E With TiCN Coating For Multi-Purpose M22 x 2.5 D7, 4 Flute, 40° Spiral Flute Modified Bottoming CNC Tap, COMBO TAP, HSS-E With TiCN Coating For Multi-Purpose M22 x 2.5 D7, 4 Flute, 40° Spiral Flute Modified Bottoming CNC Tap, COMBO TAP, HSS-E With TiCN Coating For Multi-Purpose
YG-1 TOOL CO.
T5747C
T5747C
T5747C
M22 x 2.5
Weight: 0.526 LBS
Brand: YG-1 TOOL CO.
$175.84
(61% off)
$68.08
Available
Add To My Favorites Coupon Available
Technical Details & Downloads

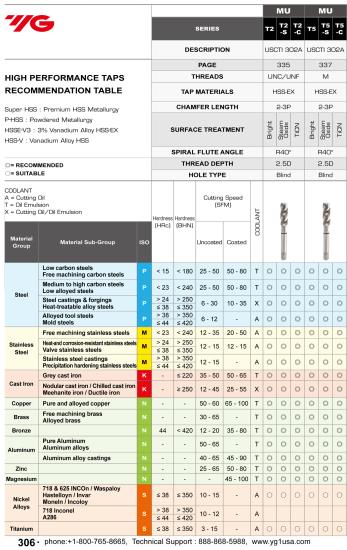

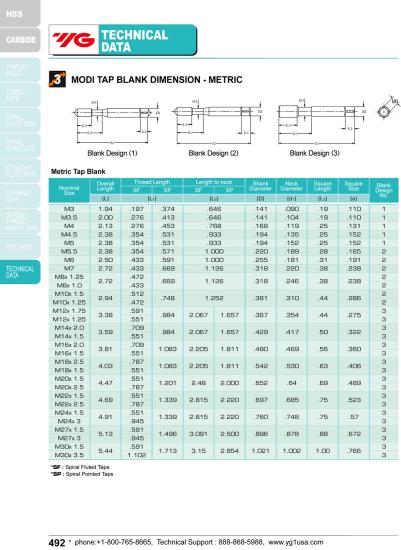

Technical/Extra Information Catalog Page Catalog Page
Product Description

Yg-1 Combo Tap For Multi-Purpose Tapping In A Wide Variety Of Ductile Materials Including Steels, Stainless Steels, Cast Iron And Non-Ferrous Metals. Yg-1'S Patented Geometry Is Designed To Provide Smoother Tapping With Excellent Chip Evacuation, While Reducing Tap Breakage And Ensuring Accurate Thread Depth And Quality By Eliminating Loose Threads Due To Tap Over And Under Feeding. It's Optimized Flank Geometry Reduces Cutting Forces And Tap Wear, Extending Tool Life And Providing Constant Thread Quality And Process Reliability Even In Less Rigid Maching Conditions.

  • YG-1 COMBO TAP Series T5-C: Metric CNC Tap For Universal Multi-Purpose Use
  • Made from Premium HSS-E (5% Cobalt HSS) With TiCN Coating
  • Right Hand Cut, Right Hand Thread with 40° Right Hand Spiral Flute
  • Spiral Flute Modified Bottoming Style with 2-3 Pitch Lead threads
  • Primarily applicable for tapping Blind Holes at depths to 2.5xD
  • USCTI Shank CNC Tap With No Coolant Hole

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
  • UPS
  • USPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$75.00 Economy (5 - 7 days)**
(This deal only applies to our Local Florida in stock items)		 $0.00 5 LBS
No Minimum UPS Blue 2 Business Days $15.99 8 LBS
$50.00 UPS Blue 2 Business Days $19.99 10 LBS
$50.00 UPS Blue 2 Business Days $32.99 15 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
UPS Ships till 5:30 p.m. & USPS ships till 4 p.m. Eastern Standard Time for same day shipping Monday-Friday except on holidays.
Any backorders for orders placed online will be shipped with no additional freight charges.
Florida Stock
1
Add to Cart
Factory Stock
14
$125.60
each
Add to Cart
More Info

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
T5747C
Thread Size
M22 x 2.5
Number Of Flutes
4
Helix Angle
40°
Type Of Tap
CNC Tap
Thread Direction
Right Hand
Thread Limit
D7
Thread Type
Metric
Tap Shank Type
USCTI Shank CNC Tap
Type Of Hole To Tap
Blind Hole
Tool Coating
TiCN Coated
Tool Substrate Material
HSS-E (5% Cobalt HSS)
Primary Application
Universal Multi-Purpose
Hand Cutting Direction
Right Hand
Country of Origin
Korea, Republic of
Hand Helix Direction
Right Hand
Series
T5-C
Style
Modified Bottoming
Flute End Type
Spiral Flute
Thread Chamfer
2-3 Pitch Lead
Model
YG-1 COMBO TAP
Size
0.8661" M22 x 2.5
Type
CNC Tap
Coolant Through
No Coolant Hole
Max Depth Of Thread
2.5xD
