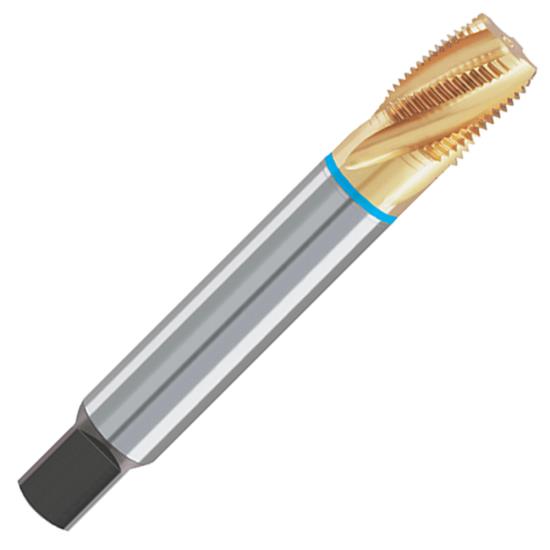

Guhring 1-11-1/2 NPT Spiral Flute Semi-Bottom CNC Cut Tap, 5 Flutes, HSS-E (5% Cobalt HSS), TiN Coated, No Coolant Hole. HP Blue Ring Tap For Stainless Steels

GUHRING INC.

9010880341800

1088 34.180

1-11-1/2 1.0000 NPT

UPC: 4049844066014

Weight: 1.4109568 LBS

Brand: GUHRING INC.

$187.87

(10% off)

$168.96

each

Add To My Favorites

Technical Details & Downloads

Technical/Extra Information Catalog Page Series 1088 Details

Product Description

Guhring High Performance Blue Ring Cut Taps. Primarily Applicable For Thread Cutting Stainless Steel. Series 1088 For Producing Right Hand Npt Threads Per Tolerance Class Npt. Tap Shank Made Per Guhring Standard. Produced From Premium Hss-E (5% Cobalt Hss) Substrate, Tin Coated Finish. Plain Cylindrical Shank Cnc Cut Taps, No Coolant Hole, Spiral Flute Semi-Bottoming Style, 25° Helix Angle, 2-3 Pitch Lead Threads And 4 Flutes. Primarily Used For Threading Blind Or Through Holes.

Guhring High Performance Blue Ring Thread Cutting Tap, Series 1088:
Made From Premium HSS-E (5% Cobalt HSS) with TiN Coated Finish
Tap Shank Per Guhring Standard With Plain Cylindrical Shank and No Coolant Hole
Thread Limit Per Tolerance Class NPT For Producing Right Hand NPT Threads
Spiral Flute Semi-Bottoming Style With 25° Helix Angle, 2-3 Pitch Lead Threads and 5 Flutes For Tapping Blind or Through Holes
Primarily Applicable For Use In (M) Stainless Steels
Also Suitable For Limited Use In (P) Steels
Guhring Series 1088, Order Code 34.180, Part Number 9010880341800

This item is part of our complete offering of Guhring Cutting Tools, trusted worldwide for premium engineering, advanced coating technology, and high-performance CNC machining solutions. Explore Guhring Hole Making & Drilling Tools for precision drilling and finishing, Guhring Milling Tools & Carbide End Mills for high-efficiency material removal, Guhring Taps & Threading Tools for accurate thread production, and Guhring Reamers for tight tolerance hole finishing. You can also browse Guhring Grooving Systems and Guhring Tool Holding & Clamping Systems to build complete machining setups with maximum rigidity and consistency. Visit our main Guhring Cutting Tools page to compare sizes, coatings, geometries, and performance options to find the right tool for your application.

Made in Germany

GUHRING INC. Brand Home

Shipping & Delivery Options

BROOKFIELD, WISCONSIN, USA

Suncoast Shipping Deals

Min. order amount	Shipping Option	Special Rate	Max Weight
$100.00	UPS Blue 2 Business Days	$19.99	4 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.

$40.00 MINIMUM ORDER

If Ordered by 3:30pm Eastern Standard Time Guhring will Ship Same Business Day

Wisconsin Stock

Additional Product Details

Technical Details

Manufacturer: GUHRING INC.
Manufacturer Part Number: 9010880341800
Thread Size: 1-11-1/2 1.0000 NPT
Overall Length: 170.00mm
Shank Diameter: 25.00mm
Number Of Flutes: 5
Helix Angle: 25°
Type Of Tap: CNC Cut Tap
Thread Direction: Right Hand
Thread Limit: NPT
Thread Type: NPT
Tap Shank Type: Guhring Std
Type Of Hole To Tap: Blind or Through Hole
Tool Coating: TiN Coated
Tool Substrate Material: HSS-E (5% Cobalt HSS)
Tolerance Class: NPT
Primary Application: Stainless Steel
Flat Width: 20.00mm
Material Food Group: (M), Also (P)
Inch Or Metric: Inch
Country of Origin: Germany
Series: 1088
Style: Semi-Bottoming
Flute End Type: Spiral Flute
Thread Chamfer: 2-3 Pitch Lead
Model: Blue Ring Tap
Shank Type: Plain Shank
Coolant Through: No Coolant Hole
Max Depth Of Thread: N/A
