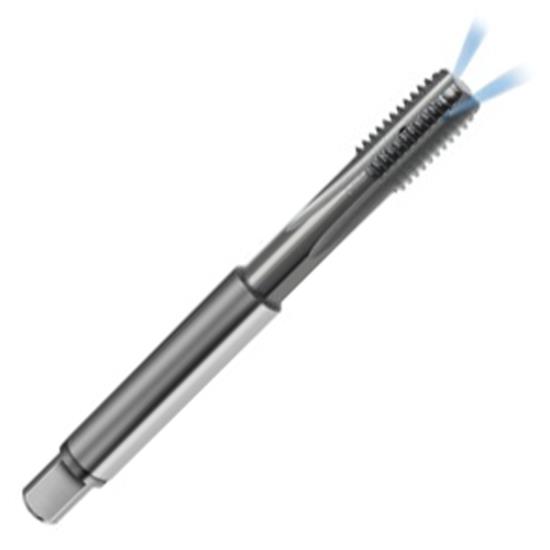

Guhring M18 x 2.5 D7/D8 Straight Flute Semi-Bottom CNC Cut Tap, 4 Flutes, Solid Carbide, Bright Finish, Radial Coolant Holes. HP Black/White Ring Tap For Cast Iron & Al-Alloys

GUHRING INC.

9018590180000

1859 18.000

M18 x 2.5

UPC: 4031093692649

Weight: 0.04188778 LBS

Brand: GUHRING INC.

$454.70

each

Add To My Favorites

Technical Details & Downloads

Technical/Extra Information Catalog Page Catalog Page Series 1859 Details

Product Description

Guhring High Performance Black, White Ring Cut Taps. Primarily Applicable For Thread Cutting Cast Iron And Al-Alloys. Series 1859 For Producing Right Hand Metric Threads Per Tolerance Class 6Hx. Tap Shank Made Per Din 376 Standard. Produced From Premium Solid Carbide Substrate, Bright Finish. Plain Cylindrical Shank Cnc Cut Taps, Radial Coolant Holes, Straight Flute Semi-Bottoming Style With 2-3 Pitch Lead Threads And 4 Flutes. Primarily Used For Threading Blind Or Through Holes.

Guhring High Performance Black, White Ring Thread Cutting Tap, Series 1859:
Made From Premium Solid Carbide with Bright Finish
Tap Shank Per DIN 376 Standard With Plain Cylindrical Shank and Radial Coolant Holes
Thread Limit Per Tolerance Class 6HX For Producing Right Hand Metric Threads
Straight Flute Semi-Bottoming Style With 2-3 Pitch Lead Threads and 4 Flutes For Tapping Blind or Through Holes
Primarily Applicable For Use In (K) Cast Iron, (N) Aluminum, Al-Alloys
Guhring Series 1859, Order Code 18.000, Part Number 9018590180000

This item is part of our complete offering of Guhring Cutting Tools, trusted worldwide for premium engineering, advanced coating technology, and high-performance CNC machining solutions. Explore Guhring Hole Making & Drilling Tools for precision drilling and finishing, Guhring Milling Tools & Carbide End Mills for high-efficiency material removal, Guhring Taps & Threading Tools for accurate thread production, and Guhring Reamers for tight tolerance hole finishing. You can also browse Guhring Grooving Systems and Guhring Tool Holding & Clamping Systems to build complete machining setups with maximum rigidity and consistency. Visit our main Guhring Cutting Tools page to compare sizes, coatings, geometries, and performance options to find the right tool for your application.

Made in Germany

GUHRING INC. Brand Home

Shipping & Delivery Options

BROOKFIELD, WISCONSIN, USA

Suncoast Shipping Deals

Min. order amount	Shipping Option	Special Rate	Max Weight
$100.00	UPS Blue 2 Business Days	$19.99	4 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.

$40.00 MINIMUM ORDER

If Ordered by 3:30pm Eastern Standard Time Guhring will Ship Same Business Day

Wisconsin

Additional Product Details

Technical Details

Manufacturer: GUHRING INC.
Manufacturer Part Number: 9018590180000
Thread Size: M18 x 2.5
Overall Length: 125.00mm
Shank Diameter: 14.00mm
Number Of Flutes: 4
Helix Angle: N/A
Type Of Tap: CNC Cut Tap
Thread Direction: Right Hand
Thread Limit: D7/D8
Thread Type: Metric
Tap Shank Type: DIN 376
Type Of Hole To Tap: Blind or Through Hole
Tool Coating: Bright Finish
Tool Substrate Material: Solid Carbide
Tolerance Class: 6HX
Primary Application: Cast Iron, Al-Alloys
Flat Width: 11.00mm
Material Food Group: (K), (N)
Inch Or Metric: Metric
Country of Origin: Germany
Series: 1859
Style: Semi-Bottoming
Flute End Type: Straight Flute
Thread Chamfer: 2-3 Pitch Lead
Model: Black, White Ring Tap
Shank Type: Plain Shank
Coolant Through: Radial Coolant Holes
Max Depth Of Thread: N/A

Guhring M18 x 2.5 D7/D8 Straight Flute Semi-Bottom CNC Cut Tap, 4 Flutes, Solid Carbide, Bright Finish, Radial Coolant Holes. HP Black/White Ring Tap For Cast Iron & Al-Alloys
