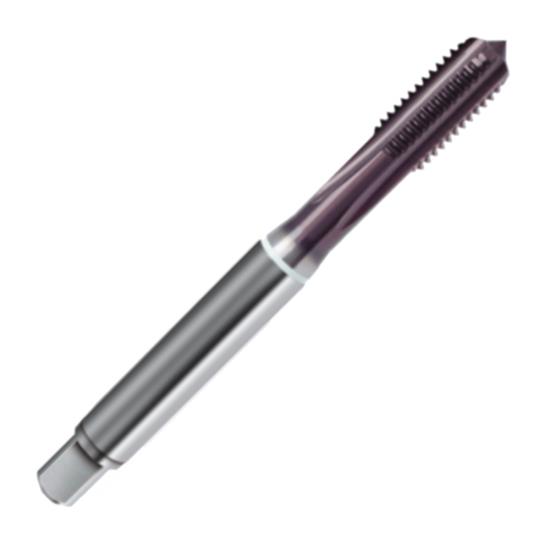

Guhring M6 x 1 D5/D6 Straight Flute Semi-Bottom CNC Cut Tap, 4 Flutes, HSS-E (5% Cobalt HSS), TiAlN Coated, No Coolant Hole. HP White Ring Tap For Cast Iron

Guhring M6 x 1 D5/D6 Straight Flute Semi-Bottom CNC Cut Tap, 4 Flutes, HSS-E (5% Cobalt HSS), TiAlN Coated, No Coolant Hole. HP White Ring Tap For Cast Iron
GUHRING INC.
9019180060000
9019180060000
1918 6.000
M6 x 1
UPC: 4031093338073
Weight: 0.03527392 LBS
Brand: GUHRING INC.
$60.29
(5% off)
$57.08
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information Catalog Page Series 1918 Details
Product Description

Guhring High Performance White Ring Cut Taps. Primarily Applicable For Thread Cutting Cast Iron. Series 1918 For Producing Right Hand Metric Threads Per Tolerance Class 6Hx. Tap Shank Made Per Din 371 Standard. Produced From Premium Hss-E (5% Cobalt Hss) Substrate, Tialn Coated Finish. Plain Cylindrical Shank Cnc Cut Taps, No Coolant Hole, Straight Flute Semi-Bottoming Style With 2-3 Pitch Lead Threads And 4 Flutes. Primarily Used For Threading Blind Or Through Holes.

  • Guhring High Performance White Ring Thread Cutting Tap, Series 1918:
  • Made From Premium HSS-E (5% Cobalt HSS) with TiAlN Coated Finish
  • Tap Shank Per DIN 371 Standard With Plain Cylindrical Shank and No Coolant Hole
  • Thread Limit Per Tolerance Class 6HX For Producing Right Hand Metric Threads
  • Straight Flute Semi-Bottoming Style With 2-3 Pitch Lead Threads and 4 Flutes For Tapping Blind or Through Holes
  • Primarily Applicable For Use In (K) Cast Iron
  • Guhring Series 1918, Order Code 6.000, Part Number 9019180060000

This item is part of our complete offering of Guhring Cutting Tools, trusted worldwide for premium engineering, advanced coating technology, and high-performance CNC machining solutions. Explore Guhring Hole Making & Drilling Tools for precision drilling and finishing, Guhring Milling Tools & Carbide End Mills for high-efficiency material removal, Guhring Taps & Threading Tools for accurate thread production, and Guhring Reamers for tight tolerance hole finishing. You can also browse Guhring Grooving Systems and Guhring Tool Holding & Clamping Systems to build complete machining setups with maximum rigidity and consistency. Visit our main Guhring Cutting Tools page to compare sizes, coatings, geometries, and performance options to find the right tool for your application.

Made in Germany
Shipping & Delivery Options
BROOKFIELD, WISCONSIN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$100.00 UPS Blue 2 Business Days $19.99 4 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$40.00 MINIMUM ORDER
If Ordered by 3:30pm Eastern Standard Time Guhring will Ship Same Business Day
Wisconsin Stock
7
Add to Cart

Additional Product Details

Technical Details

Manufacturer
GUHRING INC.
Manufacturer Part Number
9019180060000
Thread Size
M6 x 1
Overall Length
80.00mm
Shank Diameter
6.00mm
Number Of Flutes
4
Helix Angle
N/A
Type Of Tap
CNC Cut Tap
Thread Direction
Right Hand
Thread Limit
D5/D6
Thread Type
Metric
Tap Shank Type
DIN 371
Type Of Hole To Tap
Blind or Through Hole
Tool Coating
TiAlN Coated
Tool Substrate Material
HSS-E (5% Cobalt HSS)
Tolerance Class
6HX
Primary Application
Cast Iron
Flat Width
4.90mm
Material Food Group
(K)
Inch Or Metric
Metric
Country of Origin
Germany
Series
1918
Style
Semi-Bottoming
Flute End Type
Straight Flute
Thread Chamfer
2-3 Pitch Lead
Model
White Ring Tap
Shank Type
Plain Shank
Coolant Through
No Coolant Hole
Max Depth Of Thread
30.00mm
