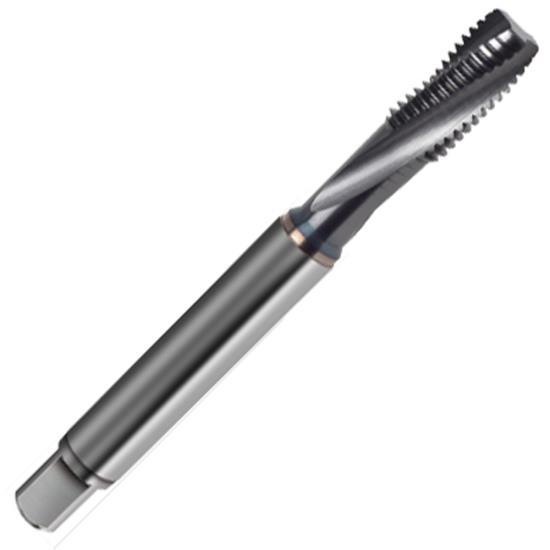

Guhring 5/8-18 H5/H6 Spiral Flute Semi-Bottom CNC Cut Tap, 4 Flutes, HSS-E-PM (PM Cobalt), TiCN Coated, No Coolant Hole. HP Silver Ring Tap For Titanium, Ti-Alloys & Ni-Alloys

GUHRING INC.

9029140158750

2914 15.875

5/8-18 0.6250

UPC: 4031093790246

Weight: 0.17857422 LBS

Brand: GUHRING INC.

$102.33

(5% off)

$96.87

each

Add To My Favorites

Technical Details & Downloads

Technical/Extra Information Catalog Page Series 2914 Details

Product Description

Guhring High Performance Silver Ring Cut Taps. Primarily Applicable For Thread Cutting Titanium, Ti-Alloys And Ni-Alloys. Series 2914 For Producing Right Hand Unf Threads Per Tolerance Class 3Bx. Tap Shank Made Per Din 376 Standard. Produced From Premium Hss-E-Pm (Cobalt Powdered Metallurgy) Substrate, Ticn Coated Finish. Plain Cylindrical Shank Cnc Cut Taps, No Coolant Hole, Spiral Flute Semi-Bottoming Style, 15° Helix Angle, 2-3 Pitch Lead Threads And 4 Flutes. Primarily Used For Threading Blind Holes.

Guhring High Performance Silver Ring Thread Cutting Tap, Series 2914:
Made From Premium HSS-E-PM (Cobalt Powdered Metallurgy) with TiCN Coated Finish
Tap Shank Per DIN 376 Standard With Plain Cylindrical Shank and No Coolant Hole
Thread Limit Per Tolerance Class 3BX For Producing Right Hand UNF Threads
Spiral Flute Semi-Bottoming Style With 15° Helix Angle, 2-3 Pitch Lead Threads and 4 Flutes For Tapping Blind Holes
Primarily Applicable For Use In (S) Heat-Resistant Super Alloys
Guhring Series 2914, Order Code 15.875, Part Number 9029140158750

This item is part of our complete offering of Guhring Cutting Tools, trusted worldwide for premium engineering, advanced coating technology, and high-performance CNC machining solutions. Explore Guhring Hole Making & Drilling Tools for precision drilling and finishing, Guhring Milling Tools & Carbide End Mills for high-efficiency material removal, Guhring Taps & Threading Tools for accurate thread production, and Guhring Reamers for tight tolerance hole finishing. You can also browse Guhring Grooving Systems and Guhring Tool Holding & Clamping Systems to build complete machining setups with maximum rigidity and consistency. Visit our main Guhring Cutting Tools page to compare sizes, coatings, geometries, and performance options to find the right tool for your application.

Made in Germany

GUHRING INC. Brand Home

Shipping & Delivery Options

BROOKFIELD, WISCONSIN, USA

Suncoast Shipping Deals

Min. order amount	Shipping Option	Special Rate	Max Weight
$100.00	UPS Blue 2 Business Days	$19.99	4 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.

$40.00 MINIMUM ORDER

If Ordered by 3:30pm Eastern Standard Time Guhring will Ship Same Business Day

Wisconsin Stock

Additional Product Details

Technical Details

Manufacturer: GUHRING INC.
Manufacturer Part Number: 9029140158750
Thread Size: 5/8-18 0.6250
Overall Length: 100.00mm
Shank Diameter: 12.00mm
Number Of Flutes: 4
Helix Angle: 15°
Type Of Tap: CNC Cut Tap
Thread Direction: Right Hand
Thread Limit: H5/H6
Thread Type: UNF
Tap Shank Type: DIN 376
Type Of Hole To Tap: Blind Hole
Tool Coating: TiCN Coated
Tool Substrate Material: HSS-E-PM (PM Cobalt)
Tolerance Class: 3BX
Primary Application: Ti-Alloys, Ni-Alloys
Flat Width: 9.00mm
Material Food Group: (S)
Inch Or Metric: Inch
Country of Origin: Germany
Series: 2914
Style: Semi-Bottoming
Flute End Type: Spiral Flute
Thread Chamfer: 2-3 Pitch Lead
Model: Silver Ring Tap
Shank Type: Plain Shank
Coolant Through: No Coolant Hole
Max Depth Of Thread: N/A
