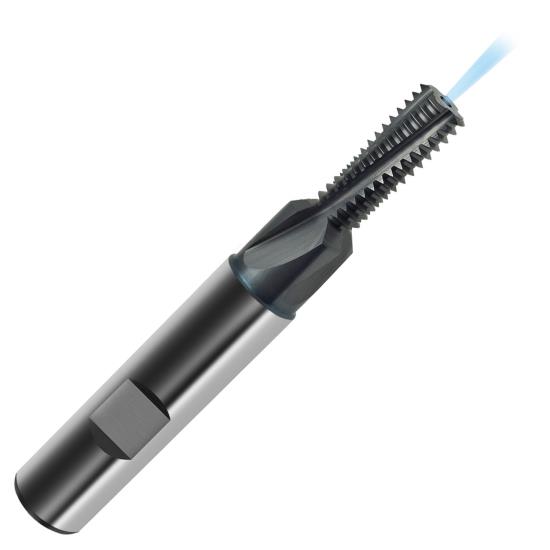

Guhring M14 x 1.50 Carbide Right Hand Cut Internal Thread Mill with Countersink, 16mm Weldon Flat Shank, 30.80mm Max Depth, 102mm OAL with Axial Coolant Hole, TiCN/Sirius Coated

Guhring M14 x 1.50 Carbide Right Hand Cut Internal Thread Mill with Countersink, 16mm Weldon Flat Shank, 30.80mm Max Depth, 102mm OAL with Axial Coolant Hole, TiCN/Sirius Coated
GUHRING INC.
9035460140070
9035460140070
3546 14.007
M14 x 1.50
UPC: 4031093625036
Weight: 0.49383488 LBS
Brand: GUHRING INC.
$897.63
each
Add To My Favorites Coupon Available
Technical Details & Downloads
Technical/Extra Information Catalog Page Series 3546 Details
Product Description

M14 X 1.50 Carbide Right Hand Cut Internal Thread Mill With Countersink, 16Mm Weldon Flat Shank, 30.80Mm Max Depth, 102Mm Oal With Axial Coolant Hole, Ticn / Sirius Coated. Please Note: Ticn Coating Transitions To Sirius Coating As Stock Is Replenished

  • Guhring Multi-Tooth Profile Combined Thread Mill with Countersink For Internal Threading
  • Type TMC SP, Series 3546: Right Hand Cutting 2XD 4 Flutes, Spiral Flute
  • Solid Carbide Thread Mill, Weldon Flat Shank, Axial Coolant Hole With TiCN / Sirius Coated Finish
  • 90° Included Countersink Angle Saves Machining Time
  • Guhring Series 3546, Order Code 14.007, Part Number 9035460140070

This item is part of our complete offering of Guhring Cutting Tools, trusted worldwide for premium engineering, advanced coating technology, and high-performance CNC machining solutions. Explore Guhring Hole Making & Drilling Tools for precision drilling and finishing, Guhring Milling Tools & Carbide End Mills for high-efficiency material removal, Guhring Taps & Threading Tools for accurate thread production, and Guhring Reamers for tight tolerance hole finishing. You can also browse Guhring Grooving Systems and Guhring Tool Holding & Clamping Systems to build complete machining setups with maximum rigidity and consistency. Visit our main Guhring Cutting Tools page to compare sizes, coatings, geometries, and performance options to find the right tool for your application.

Made in Germany
Shipping & Delivery Options
BROOKFIELD, WISCONSIN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$100.00 UPS Blue 2 Business Days $19.99 4 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$40.00 MINIMUM ORDER
If Ordered by 3:30pm Eastern Standard Time Guhring will Ship Same Business Day
Wisconsin
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
GUHRING INC.
Manufacturer Part Number
9035460140070
Cutter Diameter
11.20mm
Thread Size
M14 x 1.50
Overall Length
102mm
Shank Diameter
16mm
Number Of Flutes
4
Drill Point Angle
N/A
Thread Length
30.80mm
Thread Type
Metric
Tool Coating
TiCN / Sirius Coated
Tool Substrate Material
Solid Carbide
Primary Application
Internal Threading
Angle Per Side
45°
Hand Cutting Direction
Right Hand Cut
Included Angle
90° C'Sink
Country of Origin
Germany
Series
3546
Style
Spiral Flute
Model
Thread Mill with Countersink
Type
TMC SP
Shank Type
Weldon Flat Shank
Profile
Multi-Tooth Profile
Neck Diameter
15.50mm
LOC Multiple
2XD
Shank Length
48mm
Coolant Through
Axial Coolant Hole
