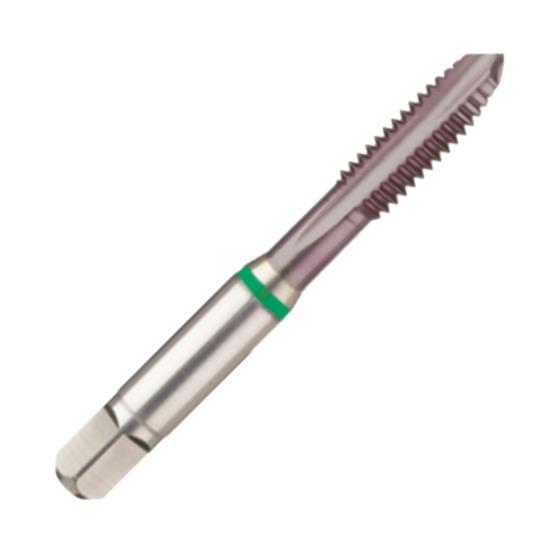

Guhring M2 x .4 D2/D3 Spiral Point Plug CNC Cut Tap, 3 Flutes, HSS-E (5% Cobalt HSS), TiCN Coated, No Coolant Hole. HP Green Ring Tap For Carbon Steels & Alloy Steels to 30HRc

GUHRING INC.

9039450020000

3945 2.000

M2 x .4

UPC: 4049844006386

Weight: 0.0110231 LBS

Brand: GUHRING INC.

$31.24

(5% off)

$29.58

each

Add To My Favorites

Technical Details & Downloads

Technical/Extra Information Catalog Page Series 3945 Details

Product Description

Guhring High Performance Green Ring Cut Taps. Primarily Applicable For Thread Cutting Steels And Universally In Most Materials. Series 3945 For Producing Right Hand Metric Threads Per Tolerance Class 6H. Tap Shank Made Per Ansi Shank Standard. Produced From Premium Hss-E (5% Cobalt Hss) Substrate, Ticn Coated Finish. Plain Cylindrical Shank Cnc Cut Taps, No Coolant Hole, Spiral Point Plug Style With 3.5-5 Pitch Lead Threads And 3 Flutes. Primarily Used For Threading Through Holes.

Guhring High Performance Green Ring Thread Cutting Tap, Series 3945:
Made From Premium HSS-E (5% Cobalt HSS) with TiCN Coated Finish
Tap Shank Per ANSI Shank Standard With Plain Cylindrical Shank and No Coolant Hole
Thread Limit Per Tolerance Class 6H For Producing Right Hand Metric Threads
Spiral Point Plug Style With 3.5-5 Pitch Lead Threads and 3 Flutes For Tapping Through Holes
Primarily Applicable For Use In (P) Steels
Also Suitable For Limited Use In (M) Stainless Steels, (K) Cast Iron, (N) Aluminum, Al-Alloys
Guhring Series 3945, Order Code 2.000, Part Number 9039450020000

This item is part of our complete offering of Guhring Cutting Tools, trusted worldwide for premium engineering, advanced coating technology, and high-performance CNC machining solutions. Explore Guhring Hole Making & Drilling Tools for precision drilling and finishing, Guhring Milling Tools & Carbide End Mills for high-efficiency material removal, Guhring Taps & Threading Tools for accurate thread production, and Guhring Reamers for tight tolerance hole finishing. You can also browse Guhring Grooving Systems and Guhring Tool Holding & Clamping Systems to build complete machining setups with maximum rigidity and consistency. Visit our main Guhring Cutting Tools page to compare sizes, coatings, geometries, and performance options to find the right tool for your application.

Made in Germany

GUHRING INC. Brand Home

Shipping & Delivery Options

BROOKFIELD, WISCONSIN, USA

Suncoast Shipping Deals

Min. order amount	Shipping Option	Special Rate	Max Weight
$100.00	UPS Blue 2 Business Days	$19.99	4 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.

$40.00 MINIMUM ORDER

If Ordered by 3:30pm Eastern Standard Time Guhring will Ship Same Business Day

Wisconsin Stock

107

Additional Product Details

Technical Details

Manufacturer: GUHRING INC.
Manufacturer Part Number: 9039450020000
Thread Size: M2 x .4
Overall Length: 1.752"
Shank Diameter: 0.141"
Number Of Flutes: 3
Helix Angle: N/A
Type Of Tap: CNC Cut Tap
Thread Direction: Right Hand
Thread Limit: D2/D3
Thread Type: Metric
Tap Shank Type: ANSI Shank
Type Of Hole To Tap: Through Hole
Tool Coating: TiCN Coated
Tool Substrate Material: HSS-E (5% Cobalt HSS)
Tolerance Class: 6H
Primary Application: Steels, Universal Use
Flat Width: 0.110"
Material Food Group: (P), Also (M), (K), (N)
Inch Or Metric: Metric
Country of Origin: Germany
Series: 3945
Style: Plug
Flute End Type: Spiral Point
Thread Chamfer: 3.5-5 Pitch Lead
Model: Green Ring Tap
Shank Type: Plain Shank
Coolant Through: No Coolant Hole
Max Depth Of Thread: 0.441"

Guhring M2 x .4 D2/D3 Spiral Point Plug CNC Cut Tap, 3 Flutes, HSS-E (5% Cobalt HSS), TiCN Coated, No Coolant Hole. HP Green Ring Tap For Carbon Steels & Alloy Steels to 30HRc
