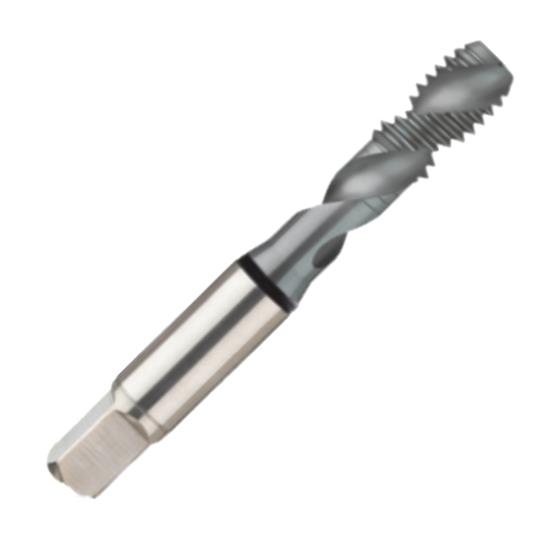

Guhring 7/16-14 H5/H6 Spiral Flute Semi-Bottom CNC Cut Tap, 2 Flutes, HSS-E (5% Cobalt HSS), MolyGlide® Coated, No Coolant Hole. HP Black Ring Tap For Aluminum & Al-Alloys

GUHRING INC.

9039700111130

3970 11.113

7/16-14 0.4375

UPC: 4031093752671

Weight: 0.07936632 LBS

Brand: GUHRING INC.

$49.93

(6% off)

$46.98

each

Add To My Favorites

Technical Details & Downloads

Technical/Extra Information Catalog Page Series 3970 Details

Product Description

Guhring High Performance Black Ring Cut Taps. Primarily Applicable For Thread Cutting Aluminum And Al-Alloys. Series 3970 For Producing Right Hand Unc Threads Per Tolerance Class 2B. Tap Shank Made Per Ansi Shank Standard. Produced From Premium Hss-E (5% Cobalt Hss) Substrate, Molyglide® Coated Finish. Plain Cylindrical Shank Cnc Cut Taps, No Coolant Hole, Spiral Flute Semi-Bottoming Style, 45° Helix Angle, 2-3 Pitch Lead Threads And 2 Flutes. Primarily Used For Threading Blind Holes.

Guhring High Performance Black Ring Thread Cutting Tap, Series 3970:
Made From Premium HSS-E (5% Cobalt HSS) with MolyGlide® Coated Finish
Tap Shank Per ANSI Shank Standard With Plain Cylindrical Shank and No Coolant Hole
Thread Limit Per Tolerance Class 2B For Producing Right Hand UNC Threads
Spiral Flute Semi-Bottoming Style With 45° Helix Angle, 2-3 Pitch Lead Threads and 2 Flutes For Tapping Blind Holes
Primarily Applicable For Use In (N) Aluminum, Al-Alloys
Guhring Series 3970, Order Code 11.113, Part Number 9039700111130

This item is part of our complete offering of Guhring Cutting Tools, trusted worldwide for premium engineering, advanced coating technology, and high-performance CNC machining solutions. Explore Guhring Hole Making & Drilling Tools for precision drilling and finishing, Guhring Milling Tools & Carbide End Mills for high-efficiency material removal, Guhring Taps & Threading Tools for accurate thread production, and Guhring Reamers for tight tolerance hole finishing. You can also browse Guhring Grooving Systems and Guhring Tool Holding & Clamping Systems to build complete machining setups with maximum rigidity and consistency. Visit our main Guhring Cutting Tools page to compare sizes, coatings, geometries, and performance options to find the right tool for your application.

Made in Germany

GUHRING INC. Brand Home

Shipping & Delivery Options

BROOKFIELD, WISCONSIN, USA

Suncoast Shipping Deals

Min. order amount	Shipping Option	Special Rate	Max Weight
$100.00	UPS Blue 2 Business Days	$19.99	4 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.

$40.00 MINIMUM ORDER

If Ordered by 3:30pm Eastern Standard Time Guhring will Ship Same Business Day

Wisconsin Stock

Additional Product Details

Technical Details

Manufacturer: GUHRING INC.
Manufacturer Part Number: 9039700111130
Thread Size: 7/16-14 0.4375
Overall Length: 3.161"
Shank Diameter: 0.323"
Number Of Flutes: 2
Helix Angle: 45°
Type Of Tap: CNC Cut Tap
Thread Direction: Right Hand
Thread Limit: H5/H6
Thread Type: UNC
Tap Shank Type: ANSI Shank
Type Of Hole To Tap: Blind Hole
Tool Coating: MolyGlide® Coated
Tool Substrate Material: HSS-E (5% Cobalt HSS)
Tolerance Class: 2B
Primary Application: Aluminum, Al-Alloys
Flat Width: 0.242"
Material Food Group: (N)
Inch Or Metric: Inch
Country of Origin: Germany
Series: 3970
Style: Semi-Bottoming
Flute End Type: Spiral Flute
Thread Chamfer: 2-3 Pitch Lead
Model: Black Ring Tap
Shank Type: Plain Shank
Coolant Through: No Coolant Hole
Max Depth Of Thread: N/A
