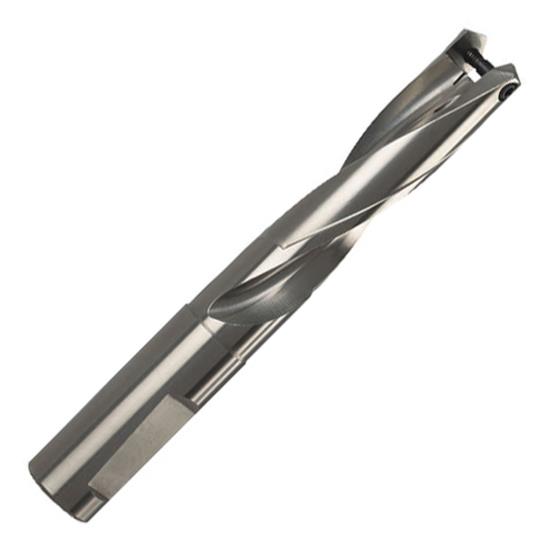

Guhring 0.4331"-0.4524" (11.00-11.49mm) Range, HT800WP, 3XD Replaceable Tip Drill. 1.441" Max Drill Depth, 12mm Whistle Notch Shank, 3.976"OAL, Nickel-Plated, Coolant Fed.9041070110000

Guhring 0.4331"-0.4524" (11.00-11.49mm) Range, HT800WP, 3XD Replaceable Tip Drill. 1.441" Max Drill Depth, 12mm Whistle Notch Shank, 3.976"OAL, Nickel-Plated, Coolant Fed.9041070110000
GUHRING INC.
9041070110000
9041070110000
4107 11.000
UPC: 4049844022119
Weight: 0.26675902 LBS
Brand: GUHRING INC.
$360.46
(24% off)
$275.40
each
7/26/2026
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information Catalog Page Series 4107 Details
Product Description

The Guhring Ht 800 Wp Interchangeable Insert Drilling System Is Ideal For The Production Of Large, Highly-Accurate Holes In A Variety Of Materials For Wind And Water Power Stations, Engine Plants Or Gas And Steam Turbines. The Ht 800 Wp Drill Bodies Offer The Highest Accuracy And Rigidity. The Open Flute Geometry Combined With Internal Cooling Guarantees Optimal Chip Evacuation Across A Broad Range Of Hole Depths. The Reinforced Shank Ensures Strong And Accurate Clamping Of The Drill In The Tool Holder. Due To The H6 Shank Tolerance, The Drill Bodies Will Fit A Variety Of Tool Holder Options. The Hardened Tool Steel And Nickel-Plated Surface Treatment Utilized During The Manufacturing Process For The Drill Bodies, Combined With Incremental Body Sizes In Steps Of 0.5Mm Up To 31.99Mm Diameter And 1.0Mm Above 32.00Mm Diameter, Results In Optimal Wear Resistance On The Drill Bodies As Well. The Small Incremental Diameter Transitions Of The Drill Bodies Provide Additional Benefits Other Than Simply Reducing Wear On The Bodies. Due To The Improved Guidance And Stabilization From Margin Contact While Drilling, The Rigidity Is Also Increased, Resulting In Longer Tool Life And Improved Workpiece Finishes. The Optimized Flute Geometry Of The Drill Bodies Results In Outstanding Chip Evacuation Capabilities, Even While Drilling Deeper Holes. Optimal Cooling And Lubrication Is Applied Through Coolant Ducts Which Exit Into The Flutes And Directly Onto The Cutting Edge, Resulting In Longer Tool Life And Better Chip Evacuation. The Precise And Easily Accessible Insert Seat Allows The Insert To Be Changed While The Drill Remains In The Machine Spindle. Due To The Unique Clamping Design, The Insert Can Be Changed More Times Than With Competitors’ Systems Before The Body Needs To Be Replaced Due To Fatigue Of The Insert Seat.

  • Guhring Series 4107 Type HT 800 WP 3XD Replaceable Tip Drill Body
  • Optimized Flute Design With Right Hand Helix, Right Hand Cut & Coolant Ducts Exiting Into The Flutes
  • Hardened Tool Steel Body With Reinforced Whistle Notch Shank & Nickel-Plated Surface Treatment
  • 0.4331" - 0.4524" (11.00-11.49mm) Diameter Drilling Range
  • Body Size 110 Replaceable Tip Drill Body Series 4107 Order Code 11.000
  • Guhring Part # 9041070110000

This item is part of our complete offering of Guhring Cutting Tools, trusted worldwide for premium engineering, advanced coating technology, and high-performance CNC machining solutions. Explore Guhring Hole Making & Drilling Tools for precision drilling and finishing, Guhring Milling Tools & Carbide End Mills for high-efficiency material removal, Guhring Taps & Threading Tools for accurate thread production, and Guhring Reamers for tight tolerance hole finishing. You can also browse Guhring Grooving Systems and Guhring Tool Holding & Clamping Systems to build complete machining setups with maximum rigidity and consistency. Visit our main Guhring Cutting Tools page to compare sizes, coatings, geometries, and performance options to find the right tool for your application.

Made in Germany
Shipping & Delivery Options
BROOKFIELD, WISCONSIN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$100.00 UPS Blue 2 Business Days $19.99 4 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$40.00 MINIMUM ORDER
If Ordered by 3:30pm Eastern Standard Time Guhring will Ship Same Business Day
Wisconsin Stock
1
Add to Cart

Additional Product Details

Technical Details

Manufacturer
GUHRING INC.
Manufacturer Part Number
9041070110000
Body Diameter
Body Size 110
Length Of Flute
1.441" 36.6mm
Overall Length
3.976" 101mm
Shank Diameter
0.4724" 12mm
Number Of Flutes
2
Drill Type
Replaceable Tip Drill Body
Tool Coating
Nickel-Plated
Tool Substrate Material
Hardened Tool Steel
Primary Application
High Performance Drilling
Hand Cutting Direction
Right Hand Cut
Inch Or Metric
Metric
Country of Origin
Germany
Series
4107
Type
Type HT 800 WP
Shank Type
Whistle Notch Shank
Drill Diameter
0.4331" - 0.4524" (11.00-11.49mm)
LOC Multiple
3XD
Shank Length
45mm
Coolant Through
Yes
Helix Type
Right Hand Helix
Form
Optimized Flute Design
