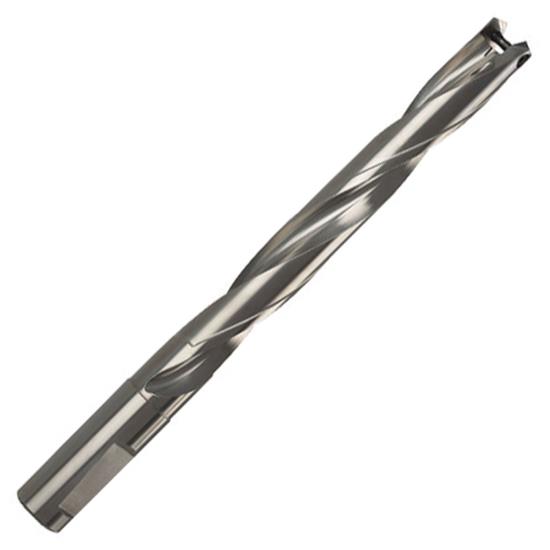

Guhring 0.8268"-0.8461" (21.00-21.49mm) Range, HT800WP, 7XD Replaceable Tip Drill. 6.087" Max Drill Depth, 1" Whistle Notch Shank, 9.724"OAL, Nickel-Plated, Coolant Fed.9041090210050

Guhring 0.8268"-0.8461" (21.00-21.49mm) Range, HT800WP, 7XD Replaceable Tip Drill. 6.087" Max Drill Depth, 1" Whistle Notch Shank, 9.724"OAL, Nickel-Plated, Coolant Fed.9041090210050
GUHRING INC.
9041090210050
9041090210050
4109 21.005
UPC: 4049844032231
Weight: 1.27647498 LBS
Brand: GUHRING INC.
$565.15
(26% off)
$420.01
each
7/26/2026
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information Catalog Page Series 4109 Details
Product Description

The Guhring Ht 800 Wp Interchangeable Insert Drilling System Is Ideal For The Production Of Large, Highly-Accurate Holes In A Variety Of Materials For Wind And Water Power Stations, Engine Plants Or Gas And Steam Turbines. The Ht 800 Wp Drill Bodies Offer The Highest Accuracy And Rigidity. The Open Flute Geometry Combined With Internal Cooling Guarantees Optimal Chip Evacuation Across A Broad Range Of Hole Depths. The Reinforced Shank Ensures Strong And Accurate Clamping Of The Drill In The Tool Holder. Due To The H6 Shank Tolerance, The Drill Bodies Will Fit A Variety Of Tool Holder Options. The Hardened Tool Steel And Nickel-Plated Surface Treatment Utilized During The Manufacturing Process For The Drill Bodies, Combined With Incremental Body Sizes In Steps Of 0.5Mm Up To 31.99Mm Diameter And 1.0Mm Above 32.00Mm Diameter, Results In Optimal Wear Resistance On The Drill Bodies As Well. The Small Incremental Diameter Transitions Of The Drill Bodies Provide Additional Benefits Other Than Simply Reducing Wear On The Bodies. Due To The Improved Guidance And Stabilization From Margin Contact While Drilling, The Rigidity Is Also Increased, Resulting In Longer Tool Life And Improved Workpiece Finishes. The Optimized Flute Geometry Of The Drill Bodies Results In Outstanding Chip Evacuation Capabilities, Even While Drilling Deeper Holes. Optimal Cooling And Lubrication Is Applied Through Coolant Ducts Which Exit Into The Flutes And Directly Onto The Cutting Edge, Resulting In Longer Tool Life And Better Chip Evacuation. The Precise And Easily Accessible Insert Seat Allows The Insert To Be Changed While The Drill Remains In The Machine Spindle. Due To The Unique Clamping Design, The Insert Can Be Changed More Times Than With Competitors’ Systems Before The Body Needs To Be Replaced Due To Fatigue Of The Insert Seat.

  • Guhring Series 4109 Type HT 800 WP 7XD Replaceable Tip Drill Body
  • Optimized Flute Design With Right Hand Helix, Right Hand Cut & Coolant Ducts Exiting Into The Flutes
  • Hardened Tool Steel Body With Reinforced Whistle Notch Shank & Nickel-Plated Surface Treatment
  • 0.8268" - 0.8461" (21.00-21.49mm) Diameter Drilling Range
  • Body Size 210 Replaceable Tip Drill Body Series 4109 Order Code 21.005
  • Guhring Part # 9041090210050

This item is part of our complete offering of Guhring Cutting Tools, trusted worldwide for premium engineering, advanced coating technology, and high-performance CNC machining solutions. Explore Guhring Hole Making & Drilling Tools for precision drilling and finishing, Guhring Milling Tools & Carbide End Mills for high-efficiency material removal, Guhring Taps & Threading Tools for accurate thread production, and Guhring Reamers for tight tolerance hole finishing. You can also browse Guhring Grooving Systems and Guhring Tool Holding & Clamping Systems to build complete machining setups with maximum rigidity and consistency. Visit our main Guhring Cutting Tools page to compare sizes, coatings, geometries, and performance options to find the right tool for your application.

Made in Germany
Shipping & Delivery Options
BROOKFIELD, WISCONSIN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$100.00 UPS Blue 2 Business Days $19.99 4 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$40.00 MINIMUM ORDER
If Ordered by 3:30pm Eastern Standard Time Guhring will Ship Same Business Day
Wisconsin Stock
5
Add to Cart

Additional Product Details

Technical Details

Manufacturer
GUHRING INC.
Manufacturer Part Number
9041090210050
Body Diameter
Body Size 210
Length Of Flute
6.087" 154.6mm
Overall Length
9.724" 247mm
Shank Diameter
1.0000" 1"
Number Of Flutes
2
Drill Type
Replaceable Tip Drill Body
Tool Coating
Nickel-Plated
Tool Substrate Material
Hardened Tool Steel
Primary Application
High Performance Drilling
Hand Cutting Direction
Right Hand Cut
Inch Or Metric
Inch
Country of Origin
Germany
Series
4109
Type
Type HT 800 WP
Shank Type
Whistle Notch Shank
Drill Diameter
0.8268" - 0.8461" (21.00-21.49mm)
LOC Multiple
7XD
Shank Length
56mm
Coolant Through
Yes
Helix Type
Right Hand Helix
Form
Optimized Flute Design
