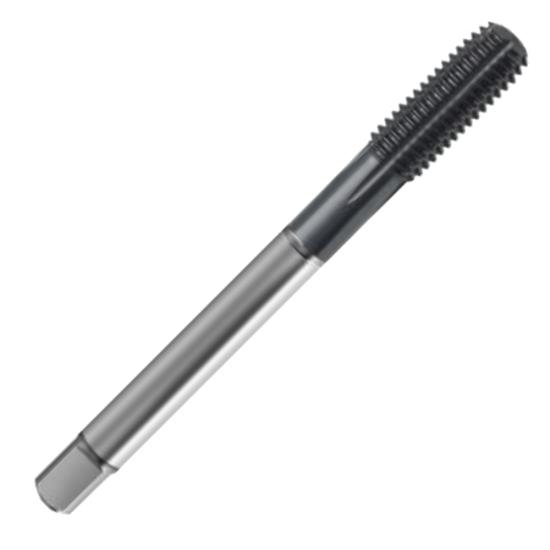

Guhring 3/8-16 H8/H9 Straight Flute Semi-Bottom CNC Form Tap w/Oil Grooves, HSS-E-PM (PM Cobalt), TiCN Coated, No Coolant Hole. General Purpose Form Tap For Universal Thread Forming

Guhring 3/8-16 H8/H9 Straight Flute Semi-Bottom CNC Form Tap w/Oil Grooves, HSS-E-PM (PM Cobalt), TiCN Coated, No Coolant Hole. General Purpose Form Tap For Universal Thread Forming
GUHRING INC.
9043770095250
9043770095250
4377 9.525
3/8-16 0.3750 FORM
UPC: 4049844228764
Weight: 0.11684486 LBS
Brand: GUHRING INC.
$101.10
(5% off)
$95.69
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information Catalog Page Series 4377 Details
Product Description

Guhring General Purpose Thread Forming Taps. Primarily Applicable For Thread Forming Universally In Most Materials. Series 4377 For Producing Right Hand Unc Threads Per Tolerance Class 2Bx. Tap Shank Made Per Ansi Shank/Din Length Standard. Produced From Premium Hss-E-Pm (Cobalt Powdered Metallurgy) Substrate, Ticn Coated Finish. Plain Cylindrical Shank Cnc Form Taps, No Coolant Hole And Are Straight Flute Semi-Bottoming Style With 2-3 Pitch Lead Threads And Oil Grooves. Primarily Used For Threading Blind Or Through Holes.

  • Guhring General Purpose Thread Forming Tap, Series 4377:
  • Made From Premium HSS-E-PM (Cobalt Powdered Metallurgy) with TiCN Coated Finish
  • Tap Shank Per ANSI Shank/DIN Length Standard With Plain Cylindrical Shank and No Coolant Hole
  • Thread Limit Per Tolerance Class 2BX For Producing Right Hand UNC Threads
  • Straight Flute Semi-Bottoming Style With 2-3 Pitch Lead Threads and Oil Grooves For Tapping Blind or Through Holes
  • Primarily Applicable For Use In (P) Steels, (M) Stainless Steels, (S) Heat-Resistant Super Alloys
  • Also Suitable For Limited Use In (N) Aluminum, Al-Alloys
  • Guhring Series 4377, Order Code 9.525, Part Number 9043770095250

This item is part of our complete offering of Guhring Cutting Tools, trusted worldwide for premium engineering, advanced coating technology, and high-performance CNC machining solutions. Explore Guhring Hole Making & Drilling Tools for precision drilling and finishing, Guhring Milling Tools & Carbide End Mills for high-efficiency material removal, Guhring Taps & Threading Tools for accurate thread production, and Guhring Reamers for tight tolerance hole finishing. You can also browse Guhring Grooving Systems and Guhring Tool Holding & Clamping Systems to build complete machining setups with maximum rigidity and consistency. Visit our main Guhring Cutting Tools page to compare sizes, coatings, geometries, and performance options to find the right tool for your application.

Made in Germany
Shipping & Delivery Options
BROOKFIELD, WISCONSIN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$100.00 UPS Blue 2 Business Days $19.99 4 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$40.00 MINIMUM ORDER
If Ordered by 3:30pm Eastern Standard Time Guhring will Ship Same Business Day
Wisconsin Stock
111
Add to Cart

Additional Product Details

Technical Details

Manufacturer
GUHRING INC.
Manufacturer Part Number
9043770095250
Thread Size
3/8-16 0.3750 FORM
Overall Length
3.937"
Shank Diameter
0.381"
Number Of Flutes
5
Helix Angle
N/A
Type Of Tap
CNC Form Tap
Thread Direction
Right Hand
Thread Limit
H8/H9
Thread Type
UNC
Tap Shank Type
ANSI Shank/DIN Length
Type Of Hole To Tap
Blind or Through Hole
Tool Coating
TiCN Coated
Tool Substrate Material
HSS-E-PM (PM Cobalt)
Tolerance Class
2BX
Primary Application
Universal Materials
Flat Width
0.286"
Material Food Group
(P), (M), (S), Also (N)
Inch Or Metric
Inch
Country of Origin
Germany
Series
4377
Style
Semi-Bottoming
Flute End Type
Straight Flute
Thread Chamfer
2-3 Pitch Lead
Model
General Purpose Form Tap
Shank Type
Plain Shank
Coolant Through
No Coolant Hole
Max Depth Of Thread
1.456"
