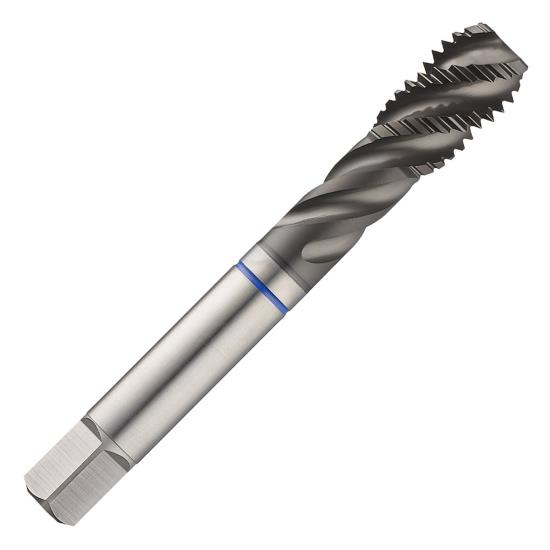

Guhring 3-56 H3/H4 Spiral Flute Semi-Bottom CNC Cut Tap, 3 Flutes, HSS-E-PM (PM Cobalt), Slidur Coated, No Coolant Hole. HP Pionex Tap For Universal Use In All Materials

Guhring 3-56 H3/H4 Spiral Flute Semi-Bottom CNC Cut Tap, 3 Flutes, HSS-E-PM (PM Cobalt), Slidur Coated, No Coolant Hole. HP Pionex Tap For Universal Use In All Materials
GUHRING INC.
9046530025150
9046530025150
4653 2.515
3-56 0.0990
UPC: 4049844358676
Weight: 0.0110231 LBS
Brand: GUHRING INC.
$58.03
(5% off)
$54.92
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information Series 4653 Details
Product Description

Guhring High Performance Pionex Cut Taps. Primarily Applicable For Thread Cutting Universally In Most Materials. Series 4653 For Producing Right Hand Unf Threads Per Tolerance Class 2Bx. Tap Shank Made Per Ansi Shank/Din Length Standard. Produced From Premium Hss-E-Pm (Cobalt Powdered Metallurgy) Substrate, Slidur Coated Finish. Plain Cylindrical Shank Cnc Cut Taps, No Coolant Hole, Spiral Flute Semi-Bottoming Style, 45° Helix Angle, 2-3 Pitch Lead Threads And 3 Flutes. Primarily Used For Threading Blind Holes.

  • Guhring High Performance Pionex Thread Cutting Tap, Series 4653:
  • Made From Premium HSS-E-PM (Cobalt Powdered Metallurgy) with Slidur Coated Finish
  • Tap Shank Per ANSI Shank/DIN Length Standard With Plain Cylindrical Shank and No Coolant Hole
  • Thread Limit Per Tolerance Class 2BX For Producing Right Hand UNF Threads
  • Spiral Flute Semi-Bottoming Style With 45° Helix Angle, 2-3 Pitch Lead Threads and 3 Flutes For Tapping Blind Holes
  • Primarily Applicable For Use In (P) Steels, (M) Stainless Steels
  • Also Suitable For Limited Use In (K) Cast Iron, (N) Aluminum, Al-Alloys, (S) Heat-Resistant Super Alloys
  • Guhring Series 4653, Order Code 2.515, Part Number 9046530025150

This item is part of our complete offering of Guhring Cutting Tools, trusted worldwide for premium engineering, advanced coating technology, and high-performance CNC machining solutions. Explore Guhring Hole Making & Drilling Tools for precision drilling and finishing, Guhring Milling Tools & Carbide End Mills for high-efficiency material removal, Guhring Taps & Threading Tools for accurate thread production, and Guhring Reamers for tight tolerance hole finishing. You can also browse Guhring Grooving Systems and Guhring Tool Holding & Clamping Systems to build complete machining setups with maximum rigidity and consistency. Visit our main Guhring Cutting Tools page to compare sizes, coatings, geometries, and performance options to find the right tool for your application.

Made in Germany
Shipping & Delivery Options
BROOKFIELD, WISCONSIN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$100.00 UPS Blue 2 Business Days $19.99 4 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$40.00 MINIMUM ORDER
If Ordered by 3:30pm Eastern Standard Time Guhring will Ship Same Business Day
Wisconsin Stock
20
Add to Cart

Additional Product Details

Technical Details

Manufacturer
GUHRING INC.
Manufacturer Part Number
9046530025150
Thread Size
3-56 0.0990
Overall Length
2.205"
Shank Diameter
0.141"
Number Of Flutes
3
Helix Angle
45°
Type Of Tap
CNC Cut Tap
Thread Direction
Right Hand
Thread Limit
H3/H4
Thread Type
UNF
Tap Shank Type
ANSI Shank/DIN Length
Type Of Hole To Tap
Blind Hole
Tool Coating
Slidur Coated
Tool Substrate Material
HSS-E-PM (PM Cobalt)
Tolerance Class
2BX
Primary Application
Universal Materials
Flat Width
0.110"
Material Food Group
(P), (M), Also (K), (N), (S)
Inch Or Metric
Inch
Country of Origin
Germany
Series
4653
Style
Semi-Bottoming
Flute End Type
Spiral Flute
Thread Chamfer
2-3 Pitch Lead
Model
Pionex Tap
Shank Type
Plain Shank
Coolant Through
No Coolant Hole
Max Depth Of Thread
0.631"
