Guhring 4mm Minimum Circle Diameter System 104 LHFace Grooving, Flat Bottom Stick Insert, 1.5mm Groove Width, .05mm Radius, 17mm Max Bore Depth, 3mm (T-Max) Groove Depth, Bright Uncoated Finish

Guhring 4mm Minimum Circle Diameter System 104 LHFace Grooving, Flat Bottom Stick Insert, 1.5mm Groove Width, .05mm Radius, 17mm Max Bore Depth, 3mm (T-Max) Groove Depth, Bright Uncoated Finish Guhring 4mm Minimum Circle Diameter System 104 LHFace Grooving, Flat Bottom Stick Insert, 1.5mm Groove Width, .05mm Radius, 17mm Max Bore Depth, 3mm (T-Max) Groove Depth, Bright Uncoated Finish
GUHRING INC.
9251950040040
9251950040040
25195 4.004
GA104.0150.005.17.40.L, Uncoated
UPC: 4049844194748
Weight: 0.01322772 LBS
Brand: GUHRING INC.
$57.23
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information Series 25195 Details
Product Description

4Mm Minimum Circle Diameter System 104 Left Hand Face Grooving, Flat Bottom Stick Insert, 1.5Mm Groove Width, .05Mm Radius, 17Mm Max Bore Depth, 3Mm (T-Max) Groove Depth, Bright Uncoated Finish. Guhring Made In Germany. Tool Number Ga104.0150.005.17.40.L, Uncoated, System 104 Face Grooving, Flat Bottom Left Hand Stick Insert, Series 25195, Order Code 4.004, Part Number 9251950040040

  • Guhring Micro-Precision ID Turning System 104 Series 25195
  • Solid Carbide Left Hand Stick Insert With Bright Uncoated Finish For Face Grooving, Flat Bottom
  • Tool Number GA104.0150.005.17.40.L, Uncoated, Series 25195, Order Code 4.004, Part Number 9251950040040

This item is part of our complete offering of Guhring Cutting Tools, trusted worldwide for premium engineering, advanced coating technology, and high-performance CNC machining solutions. Explore Guhring Hole Making & Drilling Tools for precision drilling and finishing, Guhring Milling Tools & Carbide End Mills for high-efficiency material removal, Guhring Taps & Threading Tools for accurate thread production, and Guhring Reamers for tight tolerance hole finishing. You can also browse Guhring Grooving Systems and Guhring Tool Holding & Clamping Systems to build complete machining setups with maximum rigidity and consistency. Visit our main Guhring Cutting Tools page to compare sizes, coatings, geometries, and performance options to find the right tool for your application.

Made in Germany
Shipping & Delivery Options
BROOKFIELD, WISCONSIN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$100.00 UPS Blue 2 Business Days $19.99 4 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$40.00 MINIMUM ORDER
If Ordered by 3:30pm Eastern Standard Time Guhring will Ship Same Business Day
Wisconsin
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
GUHRING INC.
Manufacturer Part Number
9251950040040
Minimum Diameter
4.00mm Circle
Groove Width
1.50mm
Overall Length
35mm
Shank Diameter
4mm
Radius Size
0.05mm
Tool Coating
Bright Uncoated
Primary Application

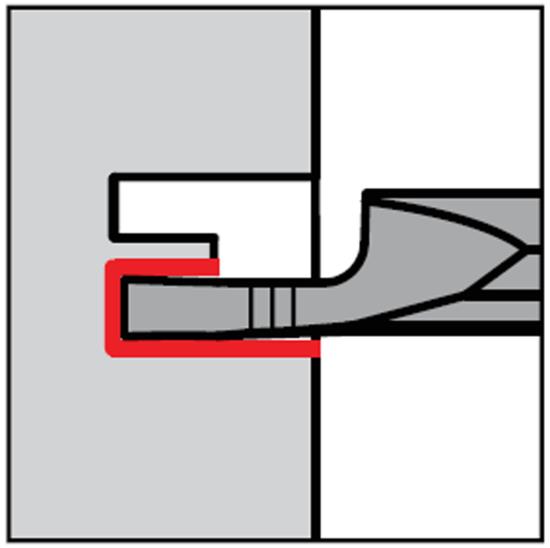

Face Grooving, Flat Bottom
Hand
Left Hand
Country of Origin
Germany
Series
25195
Model
System 104
Type
Stick Insert
Shank Type
Quick Change Shank
Projection Length
3.00mm (T-Max)
Maximum Bore Depth
17.00mm
