Guhring 5mm Minimum Bore System 106 Left Hand ID Threading Stick Insert, Metric Full Profile Thread, Size M6 x 1, 12mm Max Bore Depth, Bright Uncoated Finish

Guhring 5mm Minimum Bore System 106 Left Hand ID Threading Stick Insert, Metric Full Profile Thread, Size M6 x 1, 12mm Max Bore Depth, Bright Uncoated Finish Guhring 5mm Minimum Bore System 106 Left Hand ID Threading Stick Insert, Metric Full Profile Thread, Size M6 x 1, 12mm Max Bore Depth, Bright Uncoated Finish
GUHRING INC.
9257790060100
9257790060100
25779 6.010
GG106.VM06.100.12.50.L, Uncoated
UPC: 4049844269095
Weight: 0.03086468 LBS
Brand: GUHRING INC.
$46.03
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information Series 25779 Details
Product Description

5Mm Minimum Bore System 106 Left Hand Id Threading Stick Insert, Metric Full Profile Thread, Size M6 X 1, 12Mm Max Bore Depth, Bright Uncoated Finish. Guhring Made In Germany. Tool Number Gg106.Vm06.100.12.50.L, Uncoated, System 106 Id Threading Left Hand Stick Insert, Series 25779, Order Code 6.010, Part Number 9257790060100

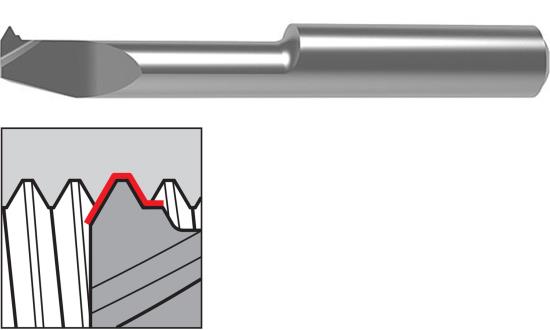

  • Guhring Micro-Precision ID Turning System 106 Series 25779
  • Solid Carbide Left Hand Stick Insert With Bright Uncoated Finish For ID Threading
  • Tool Number GG106.VM06.100.12.50.L, Uncoated, Series 25779, Order Code 6.010, Part Number 9257790060100

This item is part of our complete offering of Guhring Cutting Tools, trusted worldwide for premium engineering, advanced coating technology, and high-performance CNC machining solutions. Explore Guhring Hole Making & Drilling Tools for precision drilling and finishing, Guhring Milling Tools & Carbide End Mills for high-efficiency material removal, Guhring Taps & Threading Tools for accurate thread production, and Guhring Reamers for tight tolerance hole finishing. You can also browse Guhring Grooving Systems and Guhring Tool Holding & Clamping Systems to build complete machining setups with maximum rigidity and consistency. Visit our main Guhring Cutting Tools page to compare sizes, coatings, geometries, and performance options to find the right tool for your application.

Made in Germany
Shipping & Delivery Options
BROOKFIELD, WISCONSIN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$100.00 UPS Blue 2 Business Days $19.99 4 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$40.00 MINIMUM ORDER
If Ordered by 3:30pm Eastern Standard Time Guhring will Ship Same Business Day
Wisconsin
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
GUHRING INC.
Manufacturer Part Number
9257790060100
Thread Size
M6 x 1
Minimum Bore
5mm
Overall Length
37mm
Shank Diameter
6mm
Thread Type
Metric
Tool Coating
Bright Uncoated
Primary Application
ID Threading
Hand
Left Hand
Country of Origin
Germany
Series
25779
Model
System 106
Type
Stick Insert
Shank Type
Quick Change Shank
Threads Per Inch
25.4 TPI
Thread Pitch
1.00 mm
Profile

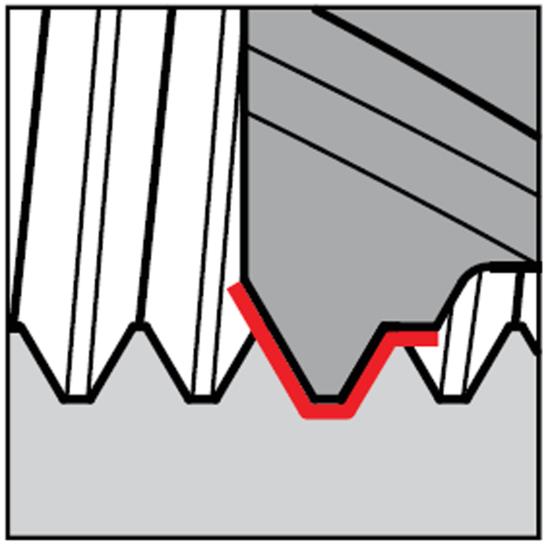

Full Profile
Tip Flat
0.115mm
Point Angle
60°
Projection Length
0.60mm (T-Max)
Maximum Bore Depth
12.00mm
