Guhring 5mm Minimum Bore System 106 Right Hand ID Boring and Front/Back Chamfering 45° Stick Insert, 12mm Max Bore Depth, .80mm (T-Max) Projection, .20mm Tip Radius, nano-A Coated Finish

Guhring 5mm Minimum Bore System 106 Right Hand ID Boring and Front/Back Chamfering 45° Stick Insert, 12mm Max Bore Depth, .80mm (T-Max) Projection, .20mm Tip Radius, nano-A Coated Finish Guhring 5mm Minimum Bore System 106 Right Hand ID Boring and Front/Back Chamfering 45° Stick Insert, 12mm Max Bore Depth, .80mm (T-Max) Projection, .20mm Tip Radius, nano-A Coated Finish
GUHRING INC.
9258660062100
9258660062100
25866 6.210
GT106.4547.020.12.50.R, nano-A
UPC: 4049844265219
Weight: 0.03086468 LBS
Brand: GUHRING INC.
$43.41
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information Series 25866 Details
Product Description

5Mm Minimum Bore System 106 Right Hand Id Boring And Front/Back Chamfering 45° Stick Insert, 12Mm Max Bore Depth, .80Mm (T-Max) Projection, .20Mm Tip Radius, Nano-A Coated Finish. Guhring Made In Germany. Tool Number Gt106.4547.020.12.50.R, Nano-A, System 106 Id Boring And Front/Back Chamfering 45° Right Hand Stick Insert, Series 25866, Order Code 6.210, Part Number 9258660062100

  • Guhring Micro-Precision ID Turning System 106 Series 25866

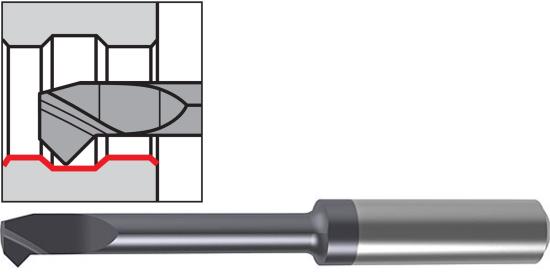

  • Solid Carbide Right Hand Stick Insert With nano-A Coated Finish For ID Boring and Front/Back Chamfering 45°
  • Tool Number GT106.4547.020.12.50.R, nano-A, Series 25866, Order Code 6.210, Part Number 9258660062100

This item is part of our complete offering of Guhring Cutting Tools, trusted worldwide for premium engineering, advanced coating technology, and high-performance CNC machining solutions. Explore Guhring Hole Making & Drilling Tools for precision drilling and finishing, Guhring Milling Tools & Carbide End Mills for high-efficiency material removal, Guhring Taps & Threading Tools for accurate thread production, and Guhring Reamers for tight tolerance hole finishing. You can also browse Guhring Grooving Systems and Guhring Tool Holding & Clamping Systems to build complete machining setups with maximum rigidity and consistency. Visit our main Guhring Cutting Tools page to compare sizes, coatings, geometries, and performance options to find the right tool for your application.

Made in Germany
Shipping & Delivery Options
BROOKFIELD, WISCONSIN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$100.00 UPS Blue 2 Business Days $19.99 4 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$40.00 MINIMUM ORDER
If Ordered by 3:30pm Eastern Standard Time Guhring will Ship Same Business Day
Wisconsin
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
GUHRING INC.
Manufacturer Part Number
9258660062100
Minimum Bore
5mm
Overall Length
37mm
Shank Diameter
6mm
Radius Size
0.20mm
Tool Coating
nano-A Coated
Primary Application

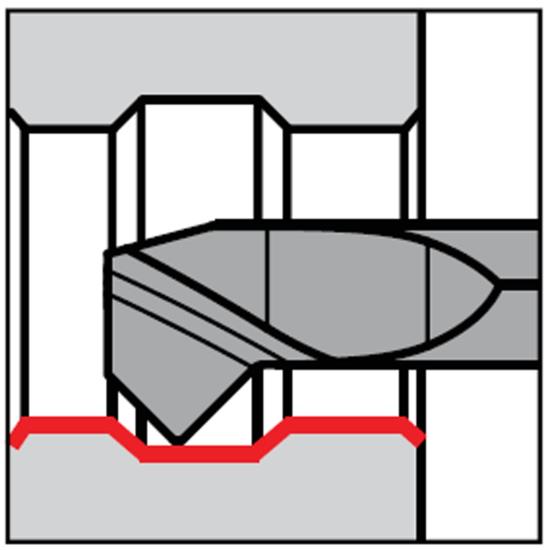

ID Boring and Front/Back Chamfering 45°
Hand
Right Hand
Country of Origin
Germany
Series
25866
Model
System 106
Type
Stick Insert
Shank Type
Quick Change Shank
Point Angle
45° Face Angle
Projection Length
0.80mm (T-Max)
Maximum Bore Depth
12.00mm
Tip Angle/dt>
45° Relief Angle
