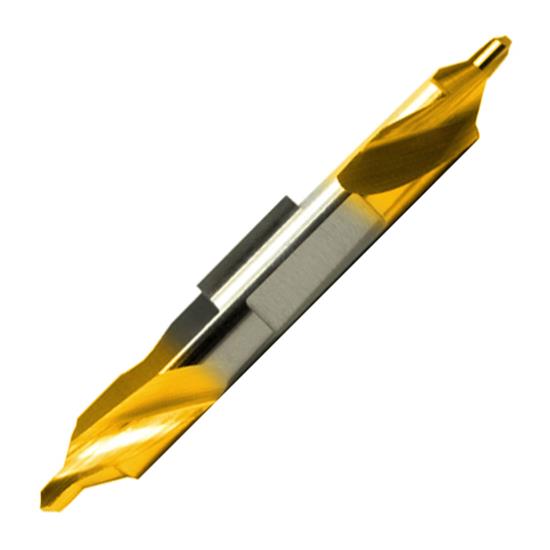

#18 HSS Double End, Bell Hey Type, Right Hand Cut, 60° Center Drill, TiN Coated. 3/4" Body, 1/4" Drill, 3.5000" Overall Length. KEO® Made in USA Part # 906-000-269

#18 HSS Double End, Bell Hey Type, Right Hand Cut, 60° Center Drill, TiN Coated. 3/4" Body, 1/4" Drill, 3.5000" Overall Length. KEO® Made in USA Part # 906-000-269
ARCH CUTTING TOOLS
906000269
906-000-269
KEO-103-011820-TIN
906-000-269
103-011820-TIN
Weight: 0.455 LBS
Brand: ARCH CUTTING TOOLS
$108.61
(30% off)
$76.17
each
Add To My Favorites
Technical Details & Downloads
Catalog Page
Product Description

Designed For Machinists Requiring Reliable Results, This Inch-Size Double End, Regular Length Bell Hey Type Center Drill Is Used In Automatic Facing And Centering Machines For Repeatability, Secure Holding, And Stable Performance Are Critical. It Uses A 60° Primary Angle With A 120° Secondary Protective Angle, Combining Production-Friendly Hey Type Geometry With The Added Center Protection Of A Bell Style. The Flats On The Tool Help Lock It Securely In The Chuck And Also Support The Facing Geometry, Improving Stability During Specialized Combined Facing And Centering Operations. Regular Length Tools Are The First Choice For Standard Centering Jobs Because They Provide Maximum Rigidity, Better Stability, And More Consistent Accuracy When Reach Is Not A Limitation. Double End Construction Provides Two Usable Ends For Better Tool Economy And Lower Cost Per Edge. High Speed Steel With Tin Coated Finish For Everyday Shop Use For Added Lubricity And Wear Resistance Are Beneficial. Right Hand Cutting Direction Supports Standard Spindle Rotation. Giving Operators Confidence In Every Setup.

  • Double End, Regular Length Bell Hey Type Center Drill built for automatic facing and centering machines
  • Inch Size Tool for standard imperial machining applications
  • Regular Length design for standard centering applications with maximum rigidity
  • 60° Primary Angle for accurate center creation in automatic machine work
  • 120° Secondary Angle for center protection during repeated cycles and secondary operations
  • Tool flats for secure chuck locking and added support of the facing geometry
  • High Speed Steel with TiN Coated Finish for everyday shop use where added lubricity and wear resistance are beneficial
  • Right Hand Cutting Direction for standard spindle rotation
  • Made in USA

This item is part of our complete offering of ARCH Cutting Tools, trusted for high-performance CNC machining across drilling, milling, holemaking, and indexable applications. Explore Patriot HP Cutting Tools for advanced solid carbide and high-performance machining solutions, KEO Cutting Tools for precision countersinks, center drills, and holemaking tools, Ultra-Dex Cutting Tools for productive indexable milling, drilling, and insert-based machining, and Revere Cutting Tools for high-performance carbide end mills and milling solutions. Visit our main ARCH Cutting Tools page to compare tool styles, coatings, geometries, and performance options to find the right solution for your application.

Made in U.S.A.
Shipping & Delivery Options
FLUSHING, MICHIGAN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$100.00 UPS Blue 2 Business Days $19.99 4 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 2:30pm Eastern Standard Time Arch will ship same Business Day.
Factory Stock
1
Add to Cart

Additional Product Details

Technical Details

Manufacturer
ARCH CUTTING TOOLS
Manufacturer Part Number
906-000-269
Body Diameter
0.7500" (3/4")
Overall Length
3.5000"
Radius Size
N/A
Number Of Flutes
2
Drill Point Angle
118°
Tool Coating
TiN Coated
Tool Substrate Material
High Speed Steel
Hand Cutting Direction
Right Hand
Included Angle
60°
Inch Or Metric
Inch
Country of Origin
U.S.A.
Series
906
Style
Regular Length
Single Or Double End
Double End
Brand
KEO®
Size
0.2500" (#18)
Type
Hey Type Bell
Drill Diameter
0.2500" (1/4")
Secondary Point Angle
120°
