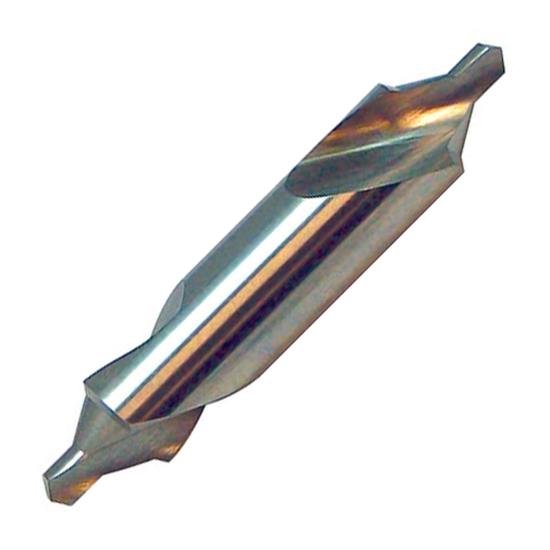

1.25 mm Drill x 5.00 mm Body, HSS Double End, Bell Type, Right Hand Cut, 60° Center Drill, Uncoated. 40 mm Overall Length. KEO® Made in USA Part # 906-000-360

1.25 mm Drill x 5.00 mm Body, HSS Double End, Bell Type, Right Hand Cut, 60° Center Drill, Uncoated. 40 mm Overall Length. KEO® Made in USA Part # 906-000-360
ARCH CUTTING TOOLS
906000360
906-000-360
KEO-103-017050
906-000-360
103-017050
Weight: 0.014 LBS
Brand: ARCH CUTTING TOOLS
$17.25
(30% off)
$12.10
each
Add To My Favorites
Technical Details & Downloads
Catalog Page
Product Description

Designed For Consistent Machining Performance, This Metric-Size Double End, Regular Length Bell Type Center Drill Uses A 60° Primary Angle And A 120° Secondary Protective Angle. Bell Type Center Drills Are Chosen Over Plain Type Tools When The Extra Chamfer Support Is Beneficial, Especially When Components May Be Moved Between Machines For Additional Operations. The 120° Secondary Angle Helps Reinforce The Center Hole, Reduce Edge Breakdown, And Protect The Center During Handling, Re-Fixturing, And Secondary Machining Steps. Regular Length Tools Are The First Choice For Standard Centering Jobs Because They Provide Maximum Rigidity, Better Stability, And More Consistent Accuracy When Reach Is Not A Limitation. Double End Construction Provides Two Usable Ends For Better Tool Economy And Lower Cost Per Edge. High Speed Steel With Uncoated Finish For General-Purpose Centering In Aluminum, Brass, Mild Steel, And Lower Speed Shop Work. Right Hand Cutting Direction Supports Standard Spindle Rotation. Making It A Strong Choice For Daily Shop Use.

  • Double End, Regular Length Bell Type Center Drill designed for standard centering
  • Metric Size Tool for metric-based machining and OEM print specifications
  • Regular Length design for standard centering applications with maximum rigidity
  • 60° Primary Angle for accurate center creation
  • 120° Secondary Angle for center protection during re-fixturing and multi-operation machining
  • High Speed Steel with Uncoated Finish for general-purpose centering in aluminum, brass, mild steel, and lower speed shop work
  • Right Hand Cutting Direction for standard spindle rotation
  • Made in USA

This item is part of our complete offering of ARCH Cutting Tools, trusted for high-performance CNC machining across drilling, milling, holemaking, and indexable applications. Explore Patriot HP Cutting Tools for advanced solid carbide and high-performance machining solutions, KEO Cutting Tools for precision countersinks, center drills, and holemaking tools, Ultra-Dex Cutting Tools for productive indexable milling, drilling, and insert-based machining, and Revere Cutting Tools for high-performance carbide end mills and milling solutions. Visit our main ARCH Cutting Tools page to compare tool styles, coatings, geometries, and performance options to find the right solution for your application.

Made in U.S.A.
Shipping & Delivery Options
FLUSHING, MICHIGAN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$100.00 UPS Blue 2 Business Days $19.99 4 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 2:30pm Eastern Standard Time Arch will ship same Business Day.
Factory Stock
625
Add to Cart

Additional Product Details

Technical Details

Manufacturer
ARCH CUTTING TOOLS
Manufacturer Part Number
906-000-360
Body Diameter
0.1969" (5.00 mm)
Overall Length
1.5748" (40.00 mm)
Radius Size
N/A
Number Of Flutes
2
Drill Point Angle
118°
Tool Coating
Bright Uncoated
Tool Substrate Material
High Speed Steel
Hand Cutting Direction
Right Hand
Included Angle
60°
Inch Or Metric
Metric
Country of Origin
U.S.A.
Series
906
Style
Regular Length
Single Or Double End
Double End
Brand
KEO®
Size
0.0492" (1.25 mm)
Type
Bell
Drill Diameter
0.0492" (1.25 mm)
Secondary Point Angle
120°
