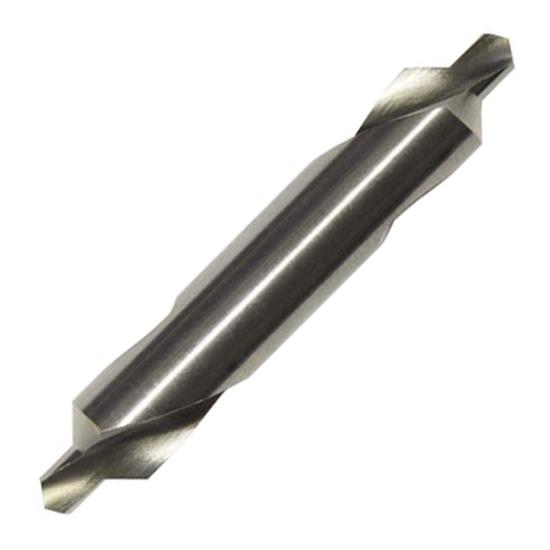

#00000 Carbide Double End, Plain Type, Right Hand Cut, 60° Center Drill, Uncoated. 1/8" Body, 0.0100" Drill, 1.5000" Overall Length. KEO® Made in USA Part # 906-000-409

#00000 Carbide Double End, Plain Type, Right Hand Cut, 60° Center Drill, Uncoated. 1/8" Body, 0.0100" Drill, 1.5000" Overall Length. KEO® Made in USA Part # 906-000-409
ARCH CUTTING TOOLS
906000409
906-000-409
KEO-103-019010
906-000-409
103-019010
Weight: 0.01 LBS
Brand: ARCH CUTTING TOOLS
$55.58
(30% off)
$38.98
each
Add To My Favorites
Technical Details & Downloads
Catalog Page
Product Description

Optimized For Accurate And Repeatable Operations, This Inch-Size Double End, Regular Length Plain Type Center Drill Uses A Standard 60° Center Angle Without A Secondary Protective Chamfer. Plain Type Center Drills Are A Practical Choice For Standard Centering Jobs For A Simple, Efficient Center Hole Is Needed And The Extra Chamfer Protection Of A Bell Type Is Not Required. Regular Length Tools Are The First Choice For Standard Centering Jobs Because They Provide Maximum Rigidity, Better Stability, And More Consistent Accuracy When Reach Is Not A Limitation. Double End Construction Provides Two Usable Ends For Better Tool Economy And Lower Cost Per Edge. Carbide With Uncoated Finish For Rigid Setups, Non-Ferrous Materials, And High-Speed Machining For Coating Is Not Required. Right Hand Cutting Direction Supports Standard Spindle Rotation. Helping Machinists Maintain Accuracy Across Setups. These Micro-Size Center Drills Are Designed For Ultra-Precision Centering In Miniature Part Manufacturing, Commonly Used In Swiss-Type Lathes, Micro Cnc Machining Centers, And High-Speed Turning Applications Across Medical, Electronics, And Aerospace Industries.

  • Double End, Regular Length Plain Type Center Drill built for standard centering
  • Inch Size Tool for standard imperial machining applications
  • Regular Length design for standard centering applications with maximum rigidity
  • 60° Included Angle for standard center formation
  • Plain Type geometry for economical centering without a secondary protective chamfer
  • Carbide with Uncoated Finish for rigid setups, non-ferrous materials, and high-speed machining where coating is not required
  • Right Hand Cutting Direction for standard spindle rotation
  • Micro diameter design for ultra-precision centering in miniature part manufacturing and Swiss-type machining
  • Made in USA

This item is part of our complete offering of ARCH Cutting Tools, trusted for high-performance CNC machining across drilling, milling, holemaking, and indexable applications. Explore Patriot HP Cutting Tools for advanced solid carbide and high-performance machining solutions, KEO Cutting Tools for precision countersinks, center drills, and holemaking tools, Ultra-Dex Cutting Tools for productive indexable milling, drilling, and insert-based machining, and Revere Cutting Tools for high-performance carbide end mills and milling solutions. Visit our main ARCH Cutting Tools page to compare tool styles, coatings, geometries, and performance options to find the right solution for your application.

Made in U.S.A.
Shipping & Delivery Options
FLUSHING, MICHIGAN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$100.00 UPS Blue 2 Business Days $19.99 4 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 2:30pm Eastern Standard Time Arch will ship same Business Day.
Factory Stock
74
Add to Cart

Additional Product Details

Technical Details

Manufacturer
ARCH CUTTING TOOLS
Manufacturer Part Number
906-000-409
Body Diameter
0.1250" (1/8")
Overall Length
1.5000"
Radius Size
N/A
Number Of Flutes
2
Drill Point Angle
118°
Tool Coating
Bright Uncoated
Tool Substrate Material
Carbide
Hand Cutting Direction
Right Hand
Included Angle
60°
Inch Or Metric
Inch
Country of Origin
U.S.A.
Series
906
Style
Regular Length
Single Or Double End
Double End
Brand
KEO®
Size
0.0100" (#00000)
Type
Plain
Drill Diameter
0.0100"
Secondary Point Angle
N/A
