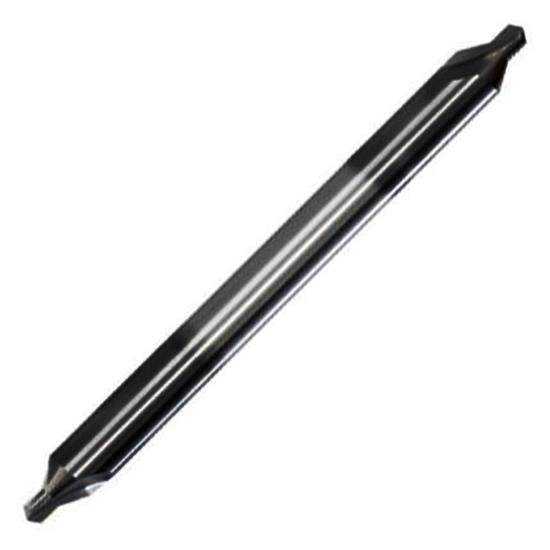

#4-1/2 x 5" Long Series HSS Double End, Plain Type, Right Hand Cut, 60° Center Drill, AlTiN Coated. 3/8" Body, 9/64" Drill. KEO® Made in USA Part # 907-000-768

#4-1/2 x 5" Long Series HSS Double End, Plain Type, Right Hand Cut, 60° Center Drill, AlTiN Coated. 3/8" Body, 9/64" Drill. KEO® Made in USA Part # 907-000-768
ARCH CUTTING TOOLS
907000768
907-000-768
KEO-103-024550-ALTIN
907-000-768
103-024550-ALTIN
Weight: 0.162 LBS
Brand: ARCH CUTTING TOOLS
$53.91
(30% off)
$37.81
each
Add To My Favorites
Technical Details & Downloads
Catalog Page
Product Description

Designed For Demanding Shop Environments, This Inch-Size Double End, Long Length Plain Type Center Drill Uses A Standard 60° Center Angle Without A Secondary Protective Chamfer. Plain Type Center Drills Are A Practical Choice For Standard Centering Jobs For A Simple, Efficient Center Hole Is Needed And The Extra Chamfer Protection Of A Bell Type Is Not Required. This Long Series Tool Has An Overall Length Of 5.0000" And Is Used In Applications That Need Clearance Over Shoulders, Hubs, Fixturing, Or Other Obstructing Features. Machinists Should Always Choose The Shortest Length That Will Do The Job, Moving To Longer Lengths Only When The Added Reach Is Truly Necessary. Double End Construction Provides Two Usable Ends For Better Tool Economy And Lower Cost Per Edge. High Speed Steel With Altin Coated Finish For Added Heat Resistance And Longer Life In Steels And Tougher General-Purpose Applications. Right Hand Cutting Direction Supports Standard Spindle Rotation. Making It A Strong Choice For Daily Shop Use.

  • Double End, Long Length Plain Type Center Drill ideal for extended reach centering operations
  • Inch Size Tool for standard imperial machining applications
  • 5.0000" Overall Length (OAL) for added reach over features, shoulders, and fixturing
  • 60° Included Angle for standard center formation
  • Plain Type geometry for economical centering without a secondary protective chamfer
  • High Speed Steel with AlTiN Coated Finish for added heat resistance and longer life in steels and tougher general-purpose applications
  • Right Hand Cutting Direction for standard spindle rotation
  • Made in USA

This item is part of our complete offering of ARCH Cutting Tools, trusted for high-performance CNC machining across drilling, milling, holemaking, and indexable applications. Explore Patriot HP Cutting Tools for advanced solid carbide and high-performance machining solutions, KEO Cutting Tools for precision countersinks, center drills, and holemaking tools, Ultra-Dex Cutting Tools for productive indexable milling, drilling, and insert-based machining, and Revere Cutting Tools for high-performance carbide end mills and milling solutions. Visit our main ARCH Cutting Tools page to compare tool styles, coatings, geometries, and performance options to find the right solution for your application.

Made in U.S.A.
Shipping & Delivery Options
FLUSHING, MICHIGAN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$100.00 UPS Blue 2 Business Days $19.99 4 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 2:30pm Eastern Standard Time Arch will ship same Business Day.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
ARCH CUTTING TOOLS
Manufacturer Part Number
907-000-768
Body Diameter
0.3750" (3/8")
Overall Length
5.0000"
Radius Size
N/A
Number Of Flutes
2
Drill Point Angle
118°
Tool Coating
AlTiN Coated
Tool Substrate Material
High Speed Steel
Hand Cutting Direction
Right Hand
Included Angle
60°
Inch Or Metric
Inch
Country of Origin
U.S.A.
Series
907
Style
Long Length
Single Or Double End
Double End
Brand
KEO®
Size
0.1406" (#4-1/2)
Type
Plain
Drill Diameter
0.1406" (9/64")
Secondary Point Angle
N/A
