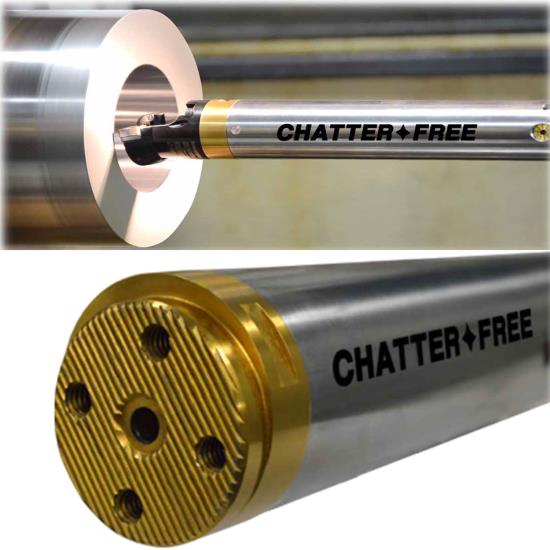

Chatter-Free 1.250" x 16" Long, 10:1 Ratio Serrated Modular Boring Bar, 1.575"Min. Bore, Takes Serrated 'SH' Head 32mm Diameter. Made in USA, ULTRA-DEX® (ARCH Cutting Tools), Part # 910-000-057

Chatter-Free 1.250" x 16" Long, 10:1 Ratio Serrated Modular Boring Bar, 1.575"Min. Bore, Takes Serrated 'SH' Head 32mm Diameter. Made in USA, ULTRA-DEX® (ARCH Cutting Tools), Part # 910-000-057
ARCH CUTTING TOOLS
910000057
910-000-057
UD-SCFT B1250-16
910-000-057
SCFT B1250-16
Weight: 5.7 LBS
Brand: ARCH CUTTING TOOLS
$3,027.81
(21% off)
$2,388.94
each
Add To My Favorites
Technical Details & Downloads
Catalog Page
Product Description

Ultra-Dex® Stealth™ Anti-Vibration Modular Boring Bar. Our Chatter-Free Tooling (Cft) Utilizes Tunable Internal Damping Technology. This Technology Enables Extended Reaches Of 5X To 10X Bar Diameter And Even Up To 12X & 14X Bar Diameter With Our Carbide Reinforced Bars. Increase Productivity With Higher Feed Rates And Improved Surface Finishes. The Cft Modular System Gives The Operator The Ability To Perform Multiple Operations With One Bar. We Offer Heads For Roughing, Finishing, Grooving, And Threading. Tunable Internal Dampening Technology Provides Optimal Dynamic Stability, Yielding Significant Increases In Machining Performance. Most Importantly, The Bars Pay For Themselves Quickly By Increasing Speed And Precision. Additionally, You Can Leave Chatter-Free Tooling “Cft” In The Machine And Use It For Deep Or Shallow Bore Applications, Thus Reducing Changeover And Setup Time.

  • ULTRA-DEX® Series 910 Stealth™ Anti-Vibration Modular Bar, Fully Tunable
  • Fully tunable boring bar (arrives pre-tuned)
  • Labeled dial for ease of tuning
  • Quick setup flat located on connection end of bar
  • Solves difficult deep boring applications
  • Increase surface finish
  • Increase output by more aggressive cutting
  • Increase tool life from reduced vibration
  • Multiple head configurations

This item is part of our complete offering of ARCH Cutting Tools, trusted for high-performance CNC machining across drilling, milling, holemaking, and indexable applications. Explore Patriot HP Cutting Tools for advanced solid carbide and high-performance machining solutions, KEO Cutting Tools for precision countersinks, center drills, and holemaking tools, Ultra-Dex Cutting Tools for productive indexable milling, drilling, and insert-based machining, and Revere Cutting Tools for high-performance carbide end mills and milling solutions. Visit our main ARCH Cutting Tools page to compare tool styles, coatings, geometries, and performance options to find the right solution for your application.

Made in U.S.A.
Shipping & Delivery Options
FLUSHING, MICHIGAN, USA
  • UPS
$50.00 MINIMUM ORDER
If ordered by 2:30pm Eastern Standard Time Arch will ship same Business Day.
Factory Stock
1
Add to Cart

Additional Product Details

Technical Details

Manufacturer
ARCH CUTTING TOOLS
Manufacturer Part Number
910-000-057
Head Diameter
32mm
Minimum Bore
1.575"
Overall Length
16.00"
Shank Diameter
1.250"
End Style
Serrated Connection
Tool Substrate Material
Steel
Hand
Neutral
Uses Insert
SH32 Serrated Head
Inch Or Metric
Inch
Country of Origin
U.S.A.
Series
910
Style
Tunable From Side
Brand
ULTRA-DEX®
Screw Type
10-24 HB
Model
Stealth™ Anti-Vibration Modular Bar
Shank Type
Round Shank Without Flat
Coolant Through
Coolant-Thru
Maximum Bore Depth
10XD
Working Space Minimum
6.750" Overhang
Working Space Maximum
12.500" Overhang
