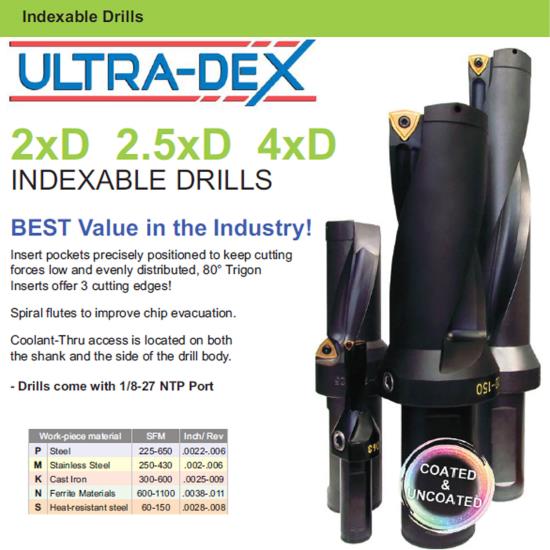

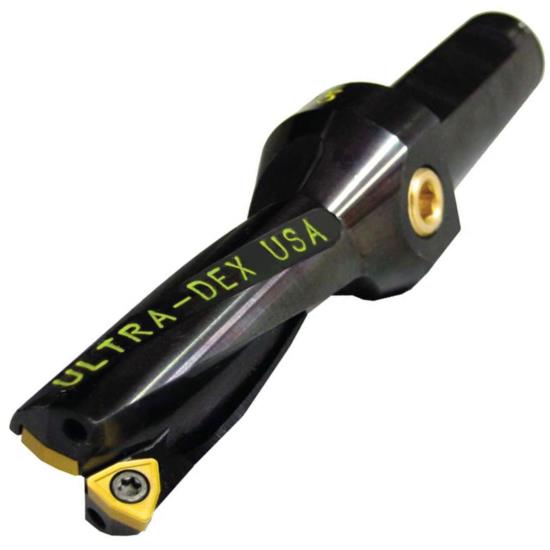

Ultra-Dex® 2Xd, 2.5Xd And 4Xd Indexable Drills Offer You One Of The Best Values In The Industry. Manufactured From Hardened High Quality Tool Steel For Rigidity & Wear Resistance. These Drills Are Engineered For Universal Use - Suitable For Both Rotating And Stationary Drilling Operations And Use Economical Industry Standard 80° Trigon Inserts With 3 Cutting Edges. The Same Insert Can Be Used As Both The Inboard & Outboard Insert With No Risk Of Mixing Up Inerts. The Engineered Flute Design Has Been Optimized For Superior Chip Evacuation & Rigidity. Precisely Positioned Insert Pockets Keep Cutting Forces Low And Evenly Distributed. These Drills Come Equipped With 1/8-27 N.P.T. Coolant Entry Ports On Both The Shank End And On The Side Of The Drill Body. Available With An Affordable Black Oxide Coating For Increased Lubricity And Corrosion Resistance, Or A High Performance Ion Nitride Treatment For Superior Wear/Galling Resistance And Exceptional Surface Hardness For Protection Against Chip Wash.

• Hardened high quality tool steel for rigidity & wear resistance
• Engineered for universal use - suitable for both rotating and stationary operations
• Uses economical industry standard 80° trigon inserts with 3 cutting edges
• Same insert can be used as inboard & outboard insert + No risk of mixing up inner & outer
• Engineered flute design optimized for superior chip evacuation & rigidity
• Precisely positioned insert pockets keep cutting forces low and evenly distributed
• Drills come equipped with 1/8-27 N.P.T. coolant entry ports on both shank end and side of drill body
• Available with an affordable black oxide coating for increased lubricity and corrosion resistance, or a high performance ion nitride treatment for superior wear/galling resistance and exceptional surface hardness for protection against chip wash
• Inserts sold separately
