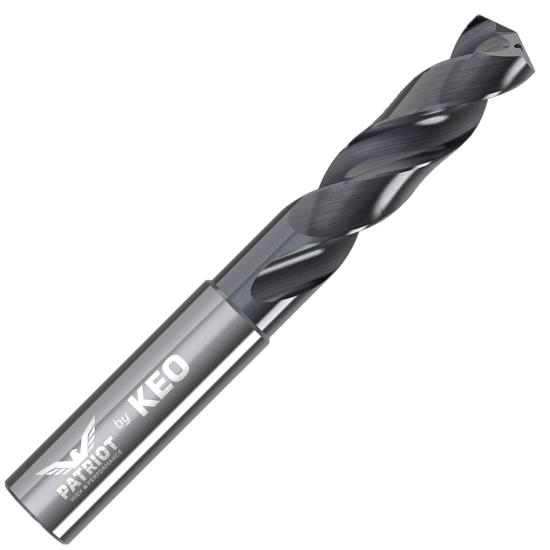

13.50mm (0.5315") Diameter 2 Flute 140° Point, Coolant Though, 3XD PATRIOT HP® 928 Solid Carbide Drill, AlCrN Coated. 14mm Shank, 43mm Max Drill Depth, 107mm OAL. KEO® USA Part # 928-000-209

13.50mm (0.5315") Diameter 2 Flute 140° Point, Coolant Though, 3XD PATRIOT HP® 928 Solid Carbide Drill, AlCrN Coated. 14mm Shank, 43mm Max Drill Depth, 107mm OAL. KEO® USA Part # 928-000-209
ARCH CUTTING TOOLS
928000209
928-000-209
KEO-928-000-209
928-000-209
928-000-209
Weight: 0.501 LBS
Brand: ARCH CUTTING TOOLS
$324.47
(15% off)
$275.80
each
7/31/2026
Add To My Favorites
Technical Details & Downloads
Catalog Page
Product Description

Patriot Hp® 928 Solid Carbide Drills In 3Xd Configuration Are Engineered For Rigid, High-Accuracy Shallow Hole Drilling In Cnc Machining. The 140° Point Angle Reduces Thrust And Improves Centering To Minimize Walking On Entry, Delivering Superior Positional Accuracy And Consistent Hole Size. The Short 3Xd Design Maximizes Stiffness And Limits Deflection For Tight Tolerance Work. Through Coolant Delivers Fluid To The Cutting Edge For Chip Evacuation And Heat Control. Advanced Edge Preparation Strengthens The Cutting Edge To Resist Micro-Chipping And Extend Tool Life, While Wide Flute Geometry Improves Chip Flow, Reduces Cutting Forces, And Lowers Spindle Load For Stable Operation. Alcrn Coated Finish Improves Heat Resistance And Wear Protection. Designed For Steel, Stainless Steel, Cast Iron, And Non-Ferrous Materials, These Drills Provide Repeatable Performance And High-Quality Surface Finish In Production Environments And Are Compatible With Dry, Flood Coolant, And Mql Strategies.

  • 2 Flute,Solid Carbide,High Performance Finish
  • 140° point improves entry stability and positioning
  • 3xD configuration delivers high rigidity for precision drilling
  • through coolant delivers fluid to the cutting edge for chip evacuation and heat control
  • Edge prep increases durability and wear resistance
  • Optimized flutes enhance chip evacuation and stability
  • AlCrN coated finish improves heat resistance and wear protection
  • Consistent hole size and surface finish
  • For steel,stainless steel,cast iron,and non-ferrous alloys
  • Dry,flood,and MQL capable
  • Made in USA

This item is part of our complete offering of ARCH Cutting Tools, trusted for high-performance CNC machining across drilling, milling, holemaking, and indexable applications. Explore Patriot HP Cutting Tools for advanced solid carbide and high-performance machining solutions, KEO Cutting Tools for precision countersinks, center drills, and holemaking tools, Ultra-Dex Cutting Tools for productive indexable milling, drilling, and insert-based machining, and Revere Cutting Tools for high-performance carbide end mills and milling solutions. Visit our main ARCH Cutting Tools page to compare tool styles, coatings, geometries, and performance options to find the right solution for your application.

Made in U.S.A.
Shipping & Delivery Options
FLUSHING, MICHIGAN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$100.00 UPS Blue 2 Business Days $19.99 4 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 2:30pm Eastern Standard Time Arch will ship same Business Day.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
ARCH CUTTING TOOLS
Manufacturer Part Number
928-000-209
Overall Length
4.2126" (107 mm)
Shank Diameter
0.5512" (14mm)
Number Of Flutes
2
Drill Point Angle
140°
Drill Type
PATRIOT HP® 3XD Drill
Tool Coating
AlCrN Coated
Tool Substrate Material
Carbide
Hand Cutting Direction
Right Hand
Inch Or Metric
Metric
Country of Origin
U.S.A.
Series
928
Brand
PATRIOT HP®
Drill Diameter
0.5315" (13.50 mm)
LOC Multiple
3XD
Shank Length
1.7717" (45 mm)
Coolant Through
Coolant Through
Depth Of Cut
1.6929" (43 mm)
