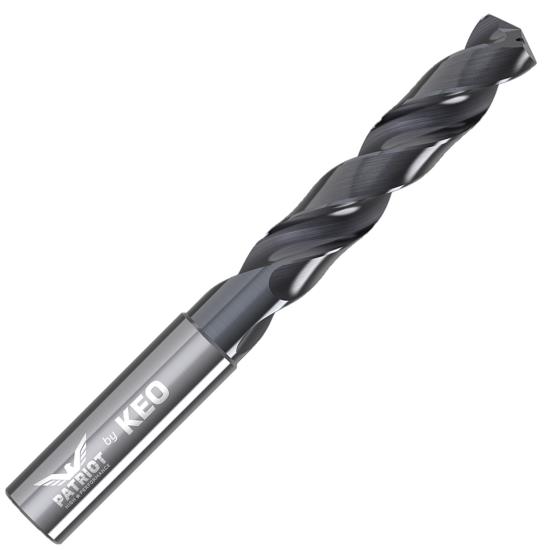

#64 (0.0360") Diameter 2 Flute 140° Point, Coolant Though, 5XD PATRIOT HP® 928 Solid Carbide Drill, AlCrN Coated. 4mm Shank, 5mm Max Drill Depth, 58mm OAL. KEO® USA Part # 928-000-244

#64 (0.0360") Diameter 2 Flute 140° Point, Coolant Though, 5XD PATRIOT HP® 928 Solid Carbide Drill, AlCrN Coated. 4mm Shank, 5mm Max Drill Depth, 58mm OAL. KEO® USA Part # 928-000-244
ARCH CUTTING TOOLS
928000244
928-000-244
KEO-928-000-244
928-000-244
928-000-244
Weight: 0.012 LBS
Brand: ARCH CUTTING TOOLS
$152.19
(15% off)
$129.36
each
7/31/2026
Add To My Favorites
Technical Details & Downloads
Catalog Page
Product Description

Patriot Hp® 928 Solid Carbide Drills In 5Xd Configuration Offer A Balanced Combination Of Reach, Rigidity, And Performance For General-Purpose Cnc Drilling. The 140° Point Angle Reduces Thrust And Improves Positioning To Deliver Stable Entry And Consistent Hole Quality Across A Wide Range Of Materials. The 5Xd Length Extends Reach While Maintaining Stability For Versatile Applications. Through Coolant Delivers Fluid To The Cutting Edge For Chip Evacuation And Heat Control. Advanced Edge Preparation Enhances Durability And Edge Strength For Longer Tool Life, While Optimized Flute Geometry Improves Chip Evacuation And Reduces Cutting Forces For Smoother Operation. Alcrn Coating Enhances Tool Life And Reduces Friction. Designed For Steel, Stainless Steel, Cast Iron, And Non-Ferrous Materials, These Drills Provide Reliable Productivity With Dry, Flood Coolant, Or Mql Machining.

  • 2 Flute,Solid Carbide,High Performance Finish
  • 140° point enhances entry stability and reduces thrust
  • Balanced 5xD design for general purpose drilling
  • through coolant delivers fluid to the cutting edge for chip evacuation and heat control
  • Strengthened cutting edges resist chipping
  • Optimized flutes lower cutting loads and improve stability
  • AlCrN coating enhances tool life and reduces friction
  • Consistent hole size and finish
  • Designed for steel,stainless steel,cast iron,and non-ferrous materials
  • Compatible with dry,flood,and MQL
  • Made in USA

This item is part of our complete offering of ARCH Cutting Tools, trusted for high-performance CNC machining across drilling, milling, holemaking, and indexable applications. Explore Patriot HP Cutting Tools for advanced solid carbide and high-performance machining solutions, KEO Cutting Tools for precision countersinks, center drills, and holemaking tools, Ultra-Dex Cutting Tools for productive indexable milling, drilling, and insert-based machining, and Revere Cutting Tools for high-performance carbide end mills and milling solutions. Visit our main ARCH Cutting Tools page to compare tool styles, coatings, geometries, and performance options to find the right solution for your application.

Made in U.S.A.
Shipping & Delivery Options
FLUSHING, MICHIGAN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$100.00 UPS Blue 2 Business Days $19.99 4 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 2:30pm Eastern Standard Time Arch will ship same Business Day.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
ARCH CUTTING TOOLS
Manufacturer Part Number
928-000-244
Overall Length
2.2835" (58 mm)
Shank Diameter
0.1575" (4mm)
Number Of Flutes
2
Drill Point Angle
140°
Drill Type
PATRIOT HP® 5XD Drill
Tool Coating
AlCrN Coated
Tool Substrate Material
Carbide
Hand Cutting Direction
Right Hand
Inch Or Metric
Inch
Country of Origin
U.S.A.
Series
928
Brand
PATRIOT HP®
Drill Diameter
0.0360" (#64)
LOC Multiple
5XD
Shank Length
1.1024" (28 mm)
Coolant Through
Coolant Through
Depth Of Cut
0.1969" (5 mm)
