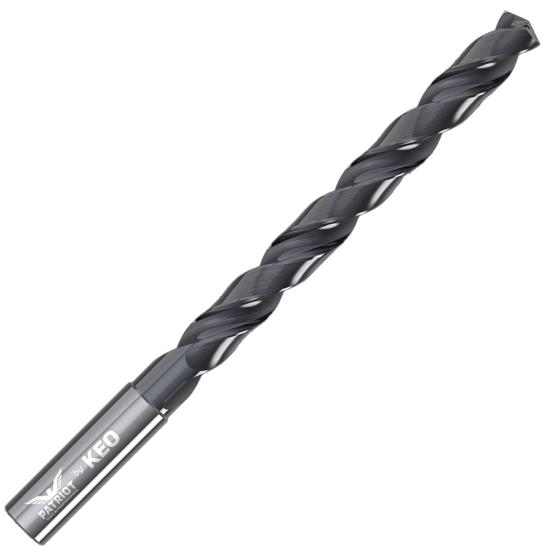

#53 (0.0595") Diameter 2 Flute 140° Point, Coolant Though, 8XD PATRIOT HP® 928 Solid Carbide Drill, AlCrN Coated. 4mm Shank, 15mm Max Drill Depth, 58mm OAL. KEO® USA Part # 928-000-504

#53 (0.0595") Diameter 2 Flute 140° Point, Coolant Though, 8XD PATRIOT HP® 928 Solid Carbide Drill, AlCrN Coated. 4mm Shank, 15mm Max Drill Depth, 58mm OAL. KEO® USA Part # 928-000-504
ARCH CUTTING TOOLS
928000504
928-000-504
KEO-928-000-504
928-000-504
928-000-504
Weight: 0.013 LBS
Brand: ARCH CUTTING TOOLS
$206.55
(15% off)
$175.57
each
7/31/2026
Add To My Favorites
Technical Details & Downloads
Catalog Page
Product Description

Designed For Depth, Patriot Hp® 928 8Xd Solid Carbide Drills Provide Stable Performance In Deep Hole Drilling. A 140° Point Angle Lowers Thrust And Improves Entry Control, Supporting Accurate Hole Location At Greater Depths. The Extended 8Xd Configuration Enables Reach While Optimized Flute Geometry Maintains Chip Flow And Reduces Cutting Forces. Precision Through Coolant Improves Chip Evacuation And Stabilizes Cutting Temperatures. Advanced Edge Prep Reinforces The Cutting Edge For Longer Life, And A High-Performance Coating Improves Resistance To Heat, Oxidation, And Thermal Shock. Suitable For Steel, Stainless Steel, Cast Iron, And Non-Ferrous Materials, These Drills Deliver Consistent Deep-Hole Results In Cnc Machining With Dry, Flood, Or Mql Strategies.

  • 2 Flute,Solid Carbide,High Performance Finish
  • 140° point enhances positioning for deep holes
  • 8xD configuration supports deep reach applications
  • precision through coolant improves chip evacuation and stabilizes cutting temperatures
  • Reinforced cutting edge extends tool life in demanding cuts
  • Optimized flutes improve chip transport and reduce cutting forces
  • AlCrN coating enhances tool life and reduces friction
  • Consistent deep hole performance
  • Suitable for steel,stainless steel,cast iron,and non-ferrous alloys
  • Dry,flood,and MQL capable
  • Made in USA

This item is part of our complete offering of ARCH Cutting Tools, trusted for high-performance CNC machining across drilling, milling, holemaking, and indexable applications. Explore Patriot HP Cutting Tools for advanced solid carbide and high-performance machining solutions, KEO Cutting Tools for precision countersinks, center drills, and holemaking tools, Ultra-Dex Cutting Tools for productive indexable milling, drilling, and insert-based machining, and Revere Cutting Tools for high-performance carbide end mills and milling solutions. Visit our main ARCH Cutting Tools page to compare tool styles, coatings, geometries, and performance options to find the right solution for your application.

Made in U.S.A.
Shipping & Delivery Options
FLUSHING, MICHIGAN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$100.00 UPS Blue 2 Business Days $19.99 4 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 2:30pm Eastern Standard Time Arch will ship same Business Day.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
ARCH CUTTING TOOLS
Manufacturer Part Number
928-000-504
Overall Length
2.2835" (58 mm)
Shank Diameter
0.1575" (4mm)
Number Of Flutes
2
Drill Point Angle
140°
Drill Type
PATRIOT HP® 8XD Drill
Tool Coating
AlCrN Coated
Tool Substrate Material
Carbide
Hand Cutting Direction
Right Hand
Inch Or Metric
Inch
Country of Origin
U.S.A.
Series
928
Brand
PATRIOT HP®
Drill Diameter
0.0595" (#53)
LOC Multiple
8XD
Shank Length
1.1024" (28 mm)
Coolant Through
Coolant Through
Depth Of Cut
0.5906" (15 mm)
