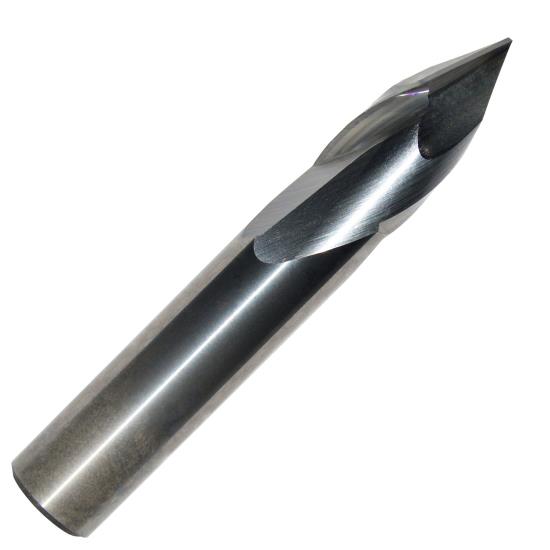

3/4" Diameter x 60° Point Angle 2 Flute Carbide Drill Mill, Uncoated. 0.7500" Shank, 1.5000" Length Of Cut, 4.0000" Overall Length, KEO® Made in USA Part # 933-000-023

3/4" Diameter x 60° Point Angle 2 Flute Carbide Drill Mill, Uncoated. 0.7500" Shank, 1.5000" Length Of Cut, 4.0000" Overall Length, KEO® Made in USA Part # 933-000-023
ARCH CUTTING TOOLS
933000023
933-000-023
KEO-103-043246
933-000-023
103-043246
Weight: 0.954 LBS
Brand: ARCH CUTTING TOOLS
$255.77
(30% off)
$179.37
each
Add To My Favorites
Technical Details & Downloads
Catalog Page
Product Description

Designed For Maximum Versatility, This Inch Size Drill Mill Performs Spot Drilling, Chamfering, V-Grooving, Edge Breaking, And Light Milling In A Single Tool, Making It Ideal For Reducing Tool Changes And Improving Machining Efficiency. The 60° Included Angle Is Ideal For Spot Drilling And Precision Chamfering. Manufactured From Carbide, This Tool Is Optimized Based On Flute Design And Coating. 2 Flute Design With Uncoated Finish Is Recommended For Steels, Stainless, And High-Heat Applications Where Improved Chip Evacuation And Heat Resistance Are Required And Aluminum And Non-Ferrous Materials Where Chip Evacuation Is Critical And Best Suited For Aluminum And Non-Ferrous Materials To Minimize Built-Up Edge.

  • 2 Flute Drill Mill for spot drilling, chamfering, V-grooving, edge breaking, and light milling
  • Inch Size Tool for standard imperial machining applications
  • 60° Included Angle for spot drilling and precision chamfering
  • 2 Flute Design with Uncoated Finish is recommended where chip evacuation is critical and is best suited for aluminum and non-ferrous materials to minimize built-up edge
  • Right Hand Cutting Direction for standard spindle rotation
  • Made in USA

This item is part of our complete offering of ARCH Cutting Tools, trusted for high-performance CNC machining across drilling, milling, holemaking, and indexable applications. Explore Patriot HP Cutting Tools for advanced solid carbide and high-performance machining solutions, KEO Cutting Tools for precision countersinks, center drills, and holemaking tools, Ultra-Dex Cutting Tools for productive indexable milling, drilling, and insert-based machining, and Revere Cutting Tools for high-performance carbide end mills and milling solutions. Visit our main ARCH Cutting Tools page to compare tool styles, coatings, geometries, and performance options to find the right solution for your application.

Made in U.S.A.
Shipping & Delivery Options
FLUSHING, MICHIGAN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$100.00 UPS Blue 2 Business Days $19.99 4 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 2:30pm Eastern Standard Time Arch will ship same Business Day.
Factory Stock
6
Add to Cart

Additional Product Details

Technical Details

Manufacturer
ARCH CUTTING TOOLS
Manufacturer Part Number
933-000-023
Cutter Diameter
0.7500" (3/4")
Length Of Cut
1.5000"
Overall Length
4.0000"
Shank Diameter
0.7500"
Number Of Flutes
2
Drill Point Angle
60°
Tool Coating
Bright Uncoated
Tool Substrate Material
Carbide
Hand Cutting Direction
Right Hand
Inch Or Metric
Inch
Country of Origin
U.S.A.
Series
933
Single Or Double End
Single End
Brand
KEO®
