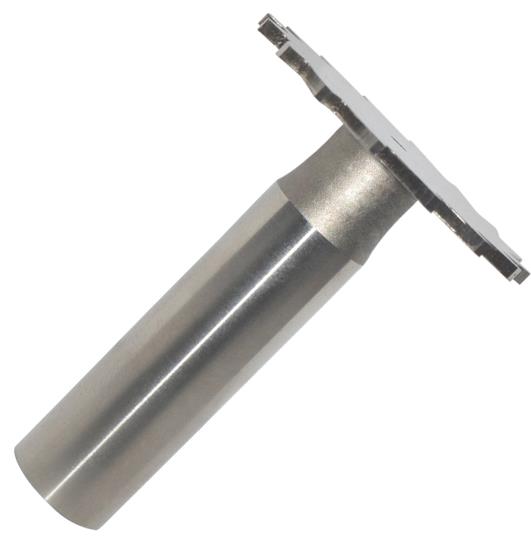

7/8" Diameter x 1/32" Wide Narrow Width Keyseat Cutter. 1/2" Shank, 2.0313" OAL, 12 Tooth, Straight Tooth HSS, Uncoated, Right Hand Cut. KEO® Made in USA (Arch Cutting Tools) Part #943-000-557

7/8" Diameter x 1/32" Wide Narrow Width Keyseat Cutter. 1/2" Shank, 2.0313" OAL, 12 Tooth, Straight Tooth HSS, Uncoated, Right Hand Cut. KEO® Made in USA (Arch Cutting Tools) Part #943-000-557
ARCH CUTTING TOOLS
943000557
943-000-557
KEO-103-069060
943-000-557
103-069060
Weight: 0.13 LBS
Brand: ARCH CUTTING TOOLS
$65.68
(30% off)
$46.06
each
Add To My Favorites
Technical Details & Downloads
Catalog Page
Product Description

The “Narrow Width” Keyseat Cutters From Keo® Are Milling Tools Designed To Cut Narrow Keyways, Woodruff Seats Or Slots Where The Width Of The Slot Is Small (I.E., Cw = Small). Unlike Standard Width Keyseat Cutters, These Are Built For Narrower Slot Widths (“Narrow Width” Meaning Thinner Cutting Width Relative To Diameter) And Thus Suited To Applications Where The Slot Or Keyseat Is Shallow Or Minimal Width.

  • Designed for milling narrow keyseats, Woodruff keyways, and precision slots where reduced slot width is required.
  • Made from premium high-speed steel (HSS) for excellent toughness, strength, and general-purpose durability.
  • Ideal for fine or shallow slotting operations that standard-width keyseat cutters cannot reach.
  • Provides a cost-effective solution for tight-tolerance, narrow-slot applications.
  • Made in the USA by KEO® Cutter.

This item is part of our complete offering of ARCH Cutting Tools, trusted for high-performance CNC machining across drilling, milling, holemaking, and indexable applications. Explore Patriot HP Cutting Tools for advanced solid carbide and high-performance machining solutions, KEO Cutting Tools for precision countersinks, center drills, and holemaking tools, Ultra-Dex Cutting Tools for productive indexable milling, drilling, and insert-based machining, and Revere Cutting Tools for high-performance carbide end mills and milling solutions. Visit our main ARCH Cutting Tools page to compare tool styles, coatings, geometries, and performance options to find the right solution for your application.

Made in U.S.A.
Shipping & Delivery Options
FLUSHING, MICHIGAN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$100.00 UPS Blue 2 Business Days $19.99 4 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 2:30pm Eastern Standard Time Arch will ship same Business Day.
Factory Stock
8
Add to Cart

Additional Product Details

Technical Details

Manufacturer
ARCH CUTTING TOOLS
Manufacturer Part Number
943-000-557
Head Diameter
0.8750" (7/8")
ANSI Part Number
N/A
Overall Length
2.0313"
Shank Diameter
0.5000" 1/2"
Number Of Flutes
12
Tool Coating
Bright Uncoated
Tool Substrate Material
High Speed Steel
Tooth Configuration
Straight Tooth
Hand Cutting Direction
Right Hand Cut
Cutter Width
0.0313" (1/32")
Inch Or Metric
Inch
Country of Origin
U.S.A.
Series
943
Style
Narrow Width
Brand
KEO®
Type
Narrow Width Keyseat Cutter
Depth Of Cut
0.314
