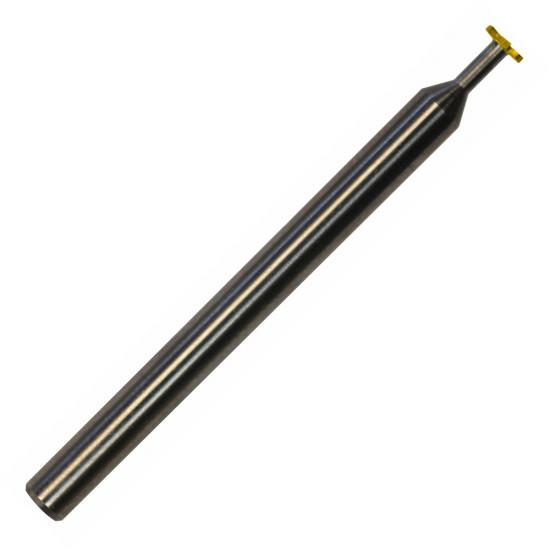

3/8" Diameter x 2mm Wide Small Solid Carbide Keyseat Cutter. 3/8" Shank, 2" OAL, 8 Tooth, Straight Tooth, TiN Coated, Right Hand Cut. KEO® Made in USA (Arch Cutting Tools) Part #943-001-226

3/8" Diameter x 2mm Wide Small Solid Carbide Keyseat Cutter. 3/8" Shank, 2" OAL, 8 Tooth, Straight Tooth, TiN Coated, Right Hand Cut. KEO® Made in USA (Arch Cutting Tools) Part #943-001-226
ARCH CUTTING TOOLS
943001226
943-001-226
KEO-103-061097-TIN
943-001-226
103-061097-TIN
Weight: 0.12 LBS
Brand: ARCH CUTTING TOOLS
$111.67
(30% off)
$78.31
each
Add To My Favorites
Technical Details & Downloads
Catalog Page
Product Description

These Cutters Are Full-Solid Carbide Slotting And Keyseat Milling Tools Designed For Narrow Keyways/Slots.

  • Made from solid micro-grain carbide for maximum hardness, rigidity, and wear resistance.
  • Designed for machining Woodruff keyseats, straight keyways, and precision slots to standard dimensions.
  • Provides superior cutting performance, tool life, and dimensional accuracy compared to HSS or cobalt cutters.
  • Suitable for high-speed machining and applications involving hard or abrasive materials.
  • Titanium Nitride (TiN) is a physical vapor deposition (PVD) coating that forms a thin, extremely hard ceramic layer on the surface of cutting tools.

This item is part of our complete offering of ARCH Cutting Tools, trusted for high-performance CNC machining across drilling, milling, holemaking, and indexable applications. Explore Patriot HP Cutting Tools for advanced solid carbide and high-performance machining solutions, KEO Cutting Tools for precision countersinks, center drills, and holemaking tools, Ultra-Dex Cutting Tools for productive indexable milling, drilling, and insert-based machining, and Revere Cutting Tools for high-performance carbide end mills and milling solutions. Visit our main ARCH Cutting Tools page to compare tool styles, coatings, geometries, and performance options to find the right solution for your application.

Made in U.S.A.
Shipping & Delivery Options
FLUSHING, MICHIGAN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$100.00 UPS Blue 2 Business Days $19.99 4 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 2:30pm Eastern Standard Time Arch will ship same Business Day.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
ARCH CUTTING TOOLS
Manufacturer Part Number
943-001-226
Head Diameter
0.3750" (3/8")
ANSI Part Number
N/A
Overall Length
2.0000"
Shank Diameter
0.3750" 3/8"
Number Of Flutes
8
Tool Coating
TiN Coated
Tool Substrate Material
Carbide
Tooth Configuration
Straight Tooth
Hand Cutting Direction
Right Hand Cut
Cutter Width
0.0787" (2mm)
Inch Or Metric
Metric
Country of Origin
U.S.A.
Series
943
Style
Small Solid Carbide
Brand
KEO®
Type
Small Solid Carbide Slot Cutter
