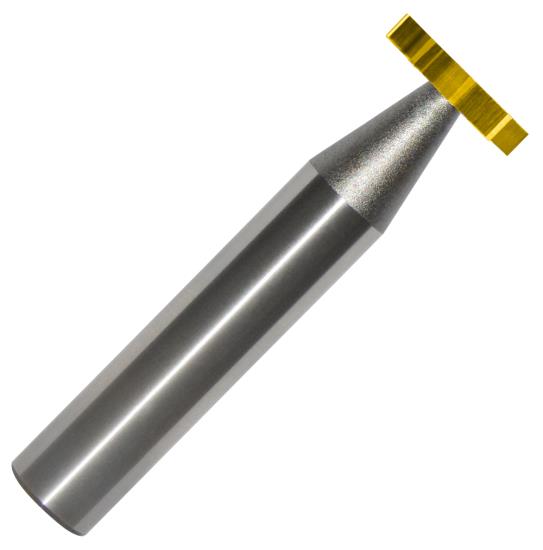

22.5mm Diameter x 6mm Wide, DIN850 Metric Woodruff Keyseat Cutter, Right Hand Cut. 12 Teeth Straight Tooth High Speed Steel, TiN Coated. KEO® Made in USA (Arch Cutting Tools) Part #943-001-542

22.5mm Diameter x 6mm Wide, DIN850 Metric Woodruff Keyseat Cutter, Right Hand Cut. 12 Teeth Straight Tooth High Speed Steel, TiN Coated. KEO® Made in USA (Arch Cutting Tools) Part #943-001-542
ARCH CUTTING TOOLS
943001542
943-001-542
KEO-103-068350-TIN
943-001-542
103-068350-TIN
Brand: ARCH CUTTING TOOLS
$116.31
(30% off)
$81.57
each
Add To My Favorites
Technical Details & Downloads
Catalog Page
Product Description

Keo®’S Hss Keyseat Cutters Are Milling Cutters Designed Specifically To Cut Keyseats (Including Woodruff Keyway Seats) Or Narrow Slots In A Workpiece. They Are Made Of High-Speed Steel For Moderate To General-Purpose Slotting/Keyseat Work.

  • Manufactured from premium high-speed steel (HSS) for durability, toughness, and general-purpose versatility.
  • Designed for machining Woodruff Keyseats, straight keyways, and narrow slots to ANSI and standard Keyseat dimensions.
  • Provides reliable performance in a wide range of materials and machining conditions.
  • Titanium Nitride (TiN) is a physical vapor deposition (PVD) coating that forms a thin, extremely hard ceramic layer on the surface of cutting tools.

This item is part of our complete offering of ARCH Cutting Tools, trusted for high-performance CNC machining across drilling, milling, holemaking, and indexable applications. Explore Patriot HP Cutting Tools for advanced solid carbide and high-performance machining solutions, KEO Cutting Tools for precision countersinks, center drills, and holemaking tools, Ultra-Dex Cutting Tools for productive indexable milling, drilling, and insert-based machining, and Revere Cutting Tools for high-performance carbide end mills and milling solutions. Visit our main ARCH Cutting Tools page to compare tool styles, coatings, geometries, and performance options to find the right solution for your application.

Made in U.S.A.
Shipping & Delivery Options
FLUSHING, MICHIGAN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$100.00 UPS Blue 2 Business Days $19.99 4 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 2:30pm Eastern Standard Time Arch will ship same Business Day.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
ARCH CUTTING TOOLS
Manufacturer Part Number
943-001-542
Head Diameter
0.8858" (22.5mm)
ANSI Part Number
A 22.5 x 6
Overall Length
2.4803" (63mm)
Shank Diameter
0.3937" 10mm
Number Of Flutes
12
Tool Coating
TiN Coated
Tool Substrate Material
High Speed Steel
Tooth Configuration
Straight Tooth
Hand Cutting Direction
Right Hand Cut
Cutter Width
0.2362" (6mm)
Inch Or Metric
Metric
Country of Origin
U.S.A.
Series
943
Style
DIN850, Form A
Brand
KEO®
Type
Woodruff Keyseat Cutter
