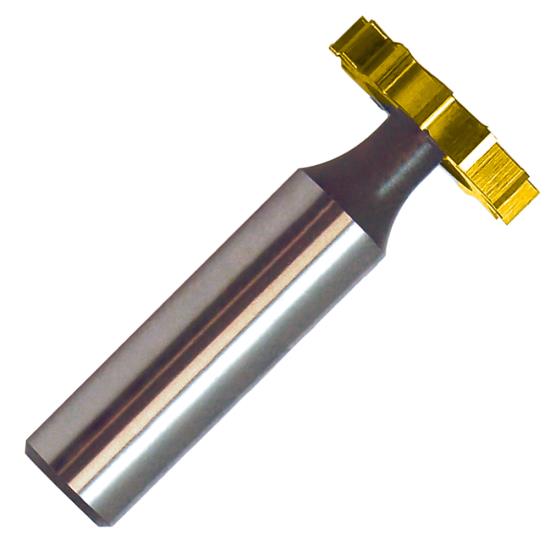

#302-1/2 American Standard Woodruff Keyseat Cutter. 5/16" Diameter x 3/32" Wide, Left Hand Cut. 8 Teeth Straight Tooth HSS, TiN Coated. KEO® Made in USA (Arch Cutting Tools) Part #943-001-885

#302-1/2 American Standard Woodruff Keyseat Cutter. 5/16" Diameter x 3/32" Wide, Left Hand Cut. 8 Teeth Straight Tooth HSS, TiN Coated. KEO® Made in USA (Arch Cutting Tools) Part #943-001-885
ARCH CUTTING TOOLS
943001885
943-001-885
KEO-103-093940-TIN
943-001-885
103-093940-TIN
Brand: ARCH CUTTING TOOLS
$73.49
(30% off)
$51.54
each
Add To My Favorites
Technical Details & Downloads
Catalog Page
Product Description

American Standard Woodruff Keyseat Cutters Are Intentionally Manufactured With An Oversized Diameter To Allow For Tool Sharpening. The Diameter Oversize Tolerances For American Standard Woodruff Keyseat Cutters Are As Follows: +.010" To +.015" For Diameters 1/4" Through 3/4"; +.012" To +.017" For Diameters 7/8" Through 1-1/8"; And +.015" To +.020" For Diameters 1-1/4" Through 1-1/2". These Keo® Keyseat (Or Woodruff-Keyseat Style) Cutters Are Made Of High-Speed Steel, With A Left-Hand Cutting Direction. That Means The Cutter Is Intended To Rotate Opposite The Direction Of A Normal Right-Hand Cutter — So That It Cuts When The Spindle Rotates Counter-Clockwise, And The Feed Direction Corresponds Accordingly.

  • Precision cutters made from high-speed steel (HSS) for strength, durability, and reliable general-purpose machining.
  • Designed specifically for Woodruff keyseats, straight keyways, and narrow slots that require a left-hand cutting direction.
  • Ideal for setups where the spindle rotation or feed direction necessitates a left-hand tool.
  • Provides excellent value and versatility for both production and maintenance operations.
  • Titanium Nitride (TiN) is a physical vapor deposition (PVD) coating that forms a thin, extremely hard ceramic layer on the surface of cutting tools.

This item is part of our complete offering of ARCH Cutting Tools, trusted for high-performance CNC machining across drilling, milling, holemaking, and indexable applications. Explore Patriot HP Cutting Tools for advanced solid carbide and high-performance machining solutions, KEO Cutting Tools for precision countersinks, center drills, and holemaking tools, Ultra-Dex Cutting Tools for productive indexable milling, drilling, and insert-based machining, and Revere Cutting Tools for high-performance carbide end mills and milling solutions. Visit our main ARCH Cutting Tools page to compare tool styles, coatings, geometries, and performance options to find the right solution for your application.

Made in U.S.A.
Shipping & Delivery Options
FLUSHING, MICHIGAN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$100.00 UPS Blue 2 Business Days $19.99 4 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 2:30pm Eastern Standard Time Arch will ship same Business Day.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
ARCH CUTTING TOOLS
Manufacturer Part Number
943-001-885
Head Diameter
0.3125" (5/16")
ANSI Part Number
#302½ - American Standard
Overall Length
2.0938"
Shank Diameter
0.5000" 1/2"
Number Of Flutes
8
Tool Coating
TiN Coated
Tool Substrate Material
High Speed Steel
Tooth Configuration
Straight Tooth
Hand Cutting Direction
Left Hand Cut
Cutter Width
0.0938" (3/32")
Inch Or Metric
Inch
Country of Origin
U.S.A.
Series
943
Style
American Standard
Brand
KEO®
Type
Woodruff Keyseat Cutter
