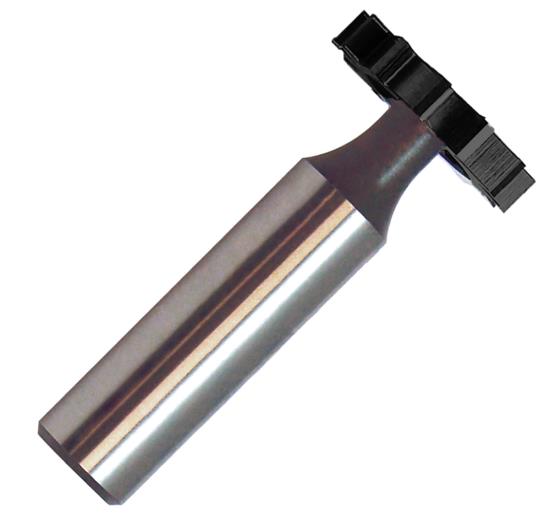

#606 American Standard Woodruff Keyseat Cutter. 3/4" Diameter x 3/16" Wide, Right Hand Cut. 10 Teeth Straight Tooth Cobalt, AlTiN Coated. KEO® Made in USA (Arch Cutting Tools) Part #943-002-520

#606 American Standard Woodruff Keyseat Cutter. 3/4" Diameter x 3/16" Wide, Right Hand Cut. 10 Teeth Straight Tooth Cobalt, AlTiN Coated. KEO® Made in USA (Arch Cutting Tools) Part #943-002-520
ARCH CUTTING TOOLS
943002520
943-002-520
KEO-103-094034-ALTIN
943-002-520
103-094034-ALTIN
Weight: 0.13 LBS
Brand: ARCH CUTTING TOOLS
$103.66
(30% off)
$72.70
each
Add To My Favorites
Technical Details & Downloads
Catalog Page
Product Description

American Standard Woodruff Keyseat Cutters Are Intentionally Manufactured With An Oversized Diameter To Allow For Tool Sharpening. The Diameter Oversize Tolerances For American Standard Woodruff Keyseat Cutters Are As Follows: +.010" To +.015" For Diameters 1/4" Through 3/4"; +.012" To +.017" For Diameters 7/8" Through 1-1/8"; And +.015" To +.020" For Diameters 1-1/4" Through 1-1/2". The “Cobalt” Version Of Keo®’S Keyseat Cutters Are Slotting Or Woodruff Key-Seat Cutters Made Of Cobalt-Alloy Tool Steel (Sometimes Labelled Hss-Co) That Provide Higher Speed/Cutting Capability And Greater Wear-Resistance Compared To Standard Hss Versions. They Are Still Built As Keyseat Cutters (For Woodruff Keysets Or Narrow Slots), Designed Around Matching Key/Slot Standards.

  • Manufactured from premium cobalt high-speed steel (HSS-Co) for superior hardness and heat resistance.
  • Designed for machining Woodruff keyseats, straight keyways, and narrow slots to precise standard dimensions.
  • Offers a performance step-up from standard HSS cutters—ideal for tougher materials and higher-speed operations.
  • Combines durability, edge retention, and cost-effectiveness for general to heavy-duty keyseat work.
  • AlTiN Coated (Aluminum Titanium Nitride) is a high-performance PVD (Physical Vapor Deposition) coating engineered for extreme temperature resistance, exceptional hardness, and superior oxidation stability.

This item is part of our complete offering of ARCH Cutting Tools, trusted for high-performance CNC machining across drilling, milling, holemaking, and indexable applications. Explore Patriot HP Cutting Tools for advanced solid carbide and high-performance machining solutions, KEO Cutting Tools for precision countersinks, center drills, and holemaking tools, Ultra-Dex Cutting Tools for productive indexable milling, drilling, and insert-based machining, and Revere Cutting Tools for high-performance carbide end mills and milling solutions. Visit our main ARCH Cutting Tools page to compare tool styles, coatings, geometries, and performance options to find the right solution for your application.

Made in U.S.A.
Shipping & Delivery Options
FLUSHING, MICHIGAN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$100.00 UPS Blue 2 Business Days $19.99 4 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 2:30pm Eastern Standard Time Arch will ship same Business Day.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
ARCH CUTTING TOOLS
Manufacturer Part Number
943-002-520
Head Diameter
0.7500" (3/4")
ANSI Part Number
#606 - American Standard
Overall Length
2.1875"
Shank Diameter
0.5000" 1/2"
Number Of Flutes
10
Tool Coating
AlTiN Coated
Tool Substrate Material
Cobalt
Tooth Configuration
Straight Tooth
Hand Cutting Direction
Right Hand Cut
Cutter Width
0.1875" (3/16")
Inch Or Metric
Inch
Country of Origin
U.S.A.
Series
943
Style
American Standard
Brand
KEO®
Type
Woodruff Keyseat Cutter
