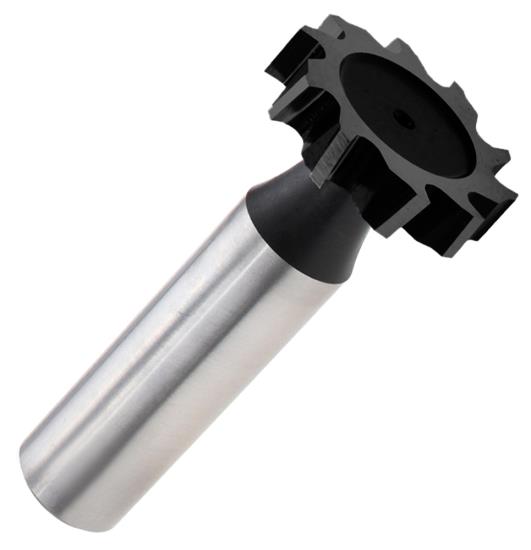

#707 American Standard Woodruff Keyseat Cutter. 7/8" Diameter x 7/32" Wide, Right Hand Cut. 10 Teeth Staggered Tooth Cobalt, AlTiN Coated. KEO® Made in USA (Arch Cutting Tools) Part #943-002-531

#707 American Standard Woodruff Keyseat Cutter. 7/8" Diameter x 7/32" Wide, Right Hand Cut. 10 Teeth Staggered Tooth Cobalt, AlTiN Coated. KEO® Made in USA (Arch Cutting Tools) Part #943-002-531
ARCH CUTTING TOOLS
943002531
943-002-531
KEO-103-094047-ALTIN
943-002-531
103-094047-ALTIN
Weight: 0.14 LBS
Brand: ARCH CUTTING TOOLS
$135.99
(30% off)
$95.37
each
Add To My Favorites
Technical Details & Downloads
Catalog Page
Product Description

American Standard Woodruff Keyseat Cutters Are Intentionally Manufactured With An Oversized Diameter To Allow For Tool Sharpening. The Diameter Oversize Tolerances For American Standard Woodruff Keyseat Cutters Are As Follows: +.010" To +.015" For Diameters 1/4" Through 3/4"; +.012" To +.017" For Diameters 7/8" Through 1-1/8"; And +.015" To +.020" For Diameters 1-1/4" Through 1-1/2". This Keo® Cutter Is Designed For Keyseat/Keyway Milling Operations: Cutting Radial Slots, Keyways, Or Similar Features In Shafts, Hubs, Gear Blanks, Etc. Made From Cobalt Steel And Features A Staggered-Tooth Geometry, Its Cutting Teeth Are Offset Or Staggered Around The Circumference To Enhance Chip Clearance And Enable More Aggressive Cutting. For Example: Fast-Cutting Cobalt Keyseat Milling Cutters Have A Staggered-Tooth Design Which Allows Cutters To Operate At High Speeds To Process Workpieces Quickly.

  • Built from cobalt alloy tool steel (HSS-Co) for improved hardness and wear resistance.
  • Staggered-tooth geometry (alternating deeper/shallow tooth pattern) aids chip evacuation, reduces chatter, enables higher feed rates.
  • Designed specifically for keyseat/Woodruff-keyway slotting applications.
  • Made in the USA by KEO® Cutter.
  • AlTiN Coated (Aluminum Titanium Nitride) – A high-performance PVD coating known for its exceptional heat resistance, hardness, and oxidation stability.

This item is part of our complete offering of ARCH Cutting Tools, trusted for high-performance CNC machining across drilling, milling, holemaking, and indexable applications. Explore Patriot HP Cutting Tools for advanced solid carbide and high-performance machining solutions, KEO Cutting Tools for precision countersinks, center drills, and holemaking tools, Ultra-Dex Cutting Tools for productive indexable milling, drilling, and insert-based machining, and Revere Cutting Tools for high-performance carbide end mills and milling solutions. Visit our main ARCH Cutting Tools page to compare tool styles, coatings, geometries, and performance options to find the right solution for your application.

Made in U.S.A.
Shipping & Delivery Options
FLUSHING, MICHIGAN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$100.00 UPS Blue 2 Business Days $19.99 4 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 2:30pm Eastern Standard Time Arch will ship same Business Day.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
ARCH CUTTING TOOLS
Manufacturer Part Number
943-002-531
Head Diameter
0.8750" (7/8")
ANSI Part Number
#707 - American Standard
Overall Length
2.2188"
Shank Diameter
0.5000" 1/2"
Number Of Flutes
10
Tool Coating
AlTiN Coated
Tool Substrate Material
Cobalt
Tooth Configuration
Staggered Tooth
Hand Cutting Direction
Right Hand Cut
Cutter Width
0.2188" (7/32")
Inch Or Metric
Inch
Country of Origin
U.S.A.
Series
943
Style
American Standard
Brand
KEO®
Type
Woodruff Keyseat Cutter
