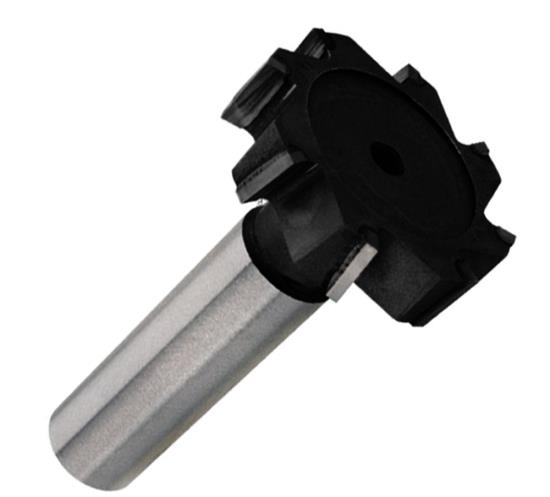

#1011 American Standard Woodruff Keyseat Cutter. 1-3/8" O.D. x 5/16" Wide, Right Hand Cut. 8 Teeth Staggered Tooth Carbide Tipped, AlTiN Coated. KEO® Made in USA (Arch Cutting Tools) Part #943-002-618

#1011 American Standard Woodruff Keyseat Cutter. 1-3/8" O.D. x 5/16" Wide, Right Hand Cut. 8 Teeth Staggered Tooth Carbide Tipped, AlTiN Coated. KEO® Made in USA (Arch Cutting Tools) Part #943-002-618
ARCH CUTTING TOOLS
943002618
943-002-618
KEO-103-094152-ALTIN
943-002-618
103-094152-ALTIN
Weight: 0.23 LBS
Brand: ARCH CUTTING TOOLS
$509.30
(30% off)
$357.17
each
Add To My Favorites
Technical Details & Downloads
Catalog Page
Product Description

American Standard Woodruff Keyseat Cutters Are Intentionally Manufactured With An Oversized Diameter To Allow For Tool Sharpening. The Diameter Oversize Tolerances For American Standard Woodruff Keyseat Cutters Are As Follows: +.010" To +.015" For Diameters 1/4" Through 3/4"; +.012" To +.017" For Diameters 7/8" Through 1-1/8"; And +.015" To +.020" For Diameters 1-1/4" Through 1-1/2". This Tool Is A Keyseat (Or Keyway) Milling Cutter Engineered For Slotting Operations Such As Keyseats, Woodruff Key Slots, And Similar Radial Slots In Shafts/Hubs. It Combines A Carbide-Tipped Cutting Edge With A Staggered-Tooth Geometry, Mounted On A Steel Shank Body. The Staggered-Tooth Design Improves Cutting Efficiency And Chip Ejection; The Carbide Tips Enhance Wear Resistance, Thermal Stability, And Cutting Speed Capability. For Example: “These Standard Keyseat Milling Cutters Have Carbide-Tipped Steel Cutting Edges That Provide Excellent Wear Resistance, Heat Resistance, And Retain Their Hardness Better Than High-Speed Steel Or Cobalt Steel Cutting Edges. The Body (Shank/Steel) Offers Better Shock Absorption And Flexibility Compared To Solid Carbide Tools, Which Makes It Robust In Typical Milling Setups.

  • Designed for milling Keyseats, Woodruff keyways, and narrow slots to standard dimensions.
  • Combines carbide cutting edges with a tough steel body, providing durability and wear resistance at a lower cost than full-solid carbide.
  • Made in the USA by KEO® Cutter.
  • AlTiN Coated (Aluminum Titanium Nitride) – A high-performance PVD coating known for its exceptional heat resistance, hardness, and oxidation stability.

This item is part of our complete offering of ARCH Cutting Tools, trusted for high-performance CNC machining across drilling, milling, holemaking, and indexable applications. Explore Patriot HP Cutting Tools for advanced solid carbide and high-performance machining solutions, KEO Cutting Tools for precision countersinks, center drills, and holemaking tools, Ultra-Dex Cutting Tools for productive indexable milling, drilling, and insert-based machining, and Revere Cutting Tools for high-performance carbide end mills and milling solutions. Visit our main ARCH Cutting Tools page to compare tool styles, coatings, geometries, and performance options to find the right solution for your application.

Made in U.S.A.
Shipping & Delivery Options
FLUSHING, MICHIGAN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$100.00 UPS Blue 2 Business Days $19.99 4 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 2:30pm Eastern Standard Time Arch will ship same Business Day.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
ARCH CUTTING TOOLS
Manufacturer Part Number
943-002-618
Head Diameter
1.3750" (1-3/8")
ANSI Part Number
#1011 - American Standard
Overall Length
2.3125"
Shank Diameter
0.5000" 1/2"
Number Of Flutes
8
Tool Coating
AlTiN Coated
Tool Substrate Material
Carbide Tipped
Tooth Configuration
Staggered Tooth
Hand Cutting Direction
Right Hand Cut
Cutter Width
0.3125" (5/16")
Inch Or Metric
Inch
Country of Origin
U.S.A.
Series
943
Style
American Standard
Brand
KEO®
Type
Woodruff Keyseat Cutter
