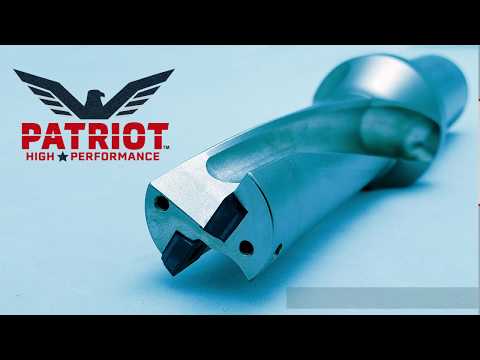

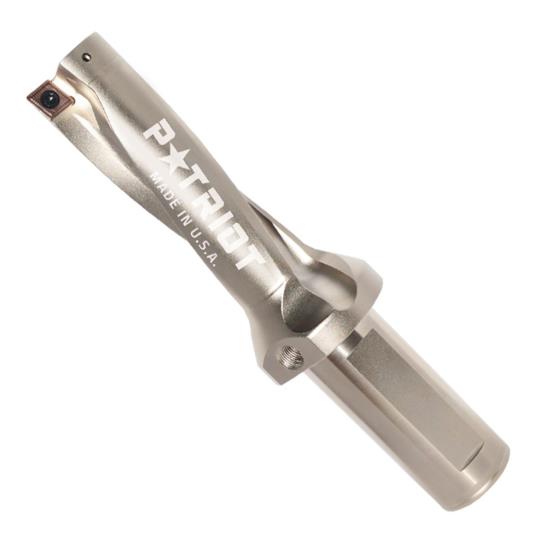

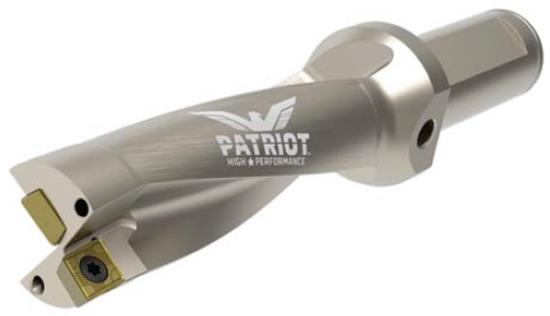

1-3/4" Diameter 4XD PATRIOT HP® Indexable Drill, Nickel Coated, Coolant-Thru, 1-1/2"Shank, 7.197"Max Drill Depth. Made in USA, ULTRA-DEX® (ARCH Cutting Tools), Part # 970-000-086

1-3/4" Diameter 4XD PATRIOT HP® Indexable Drill, Nickel Coated, Coolant-Thru, 1-1/2"Shank, 7.197"Max Drill Depth. Made in USA, ULTRA-DEX® (ARCH Cutting Tools), Part # 970-000-086 1-3/4" Diameter 4XD PATRIOT HP® Indexable Drill, Nickel Coated, Coolant-Thru, 1-1/2"Shank, 7.197"Max Drill Depth. Made in USA, ULTRA-DEX® (ARCH Cutting Tools), Part # 970-000-086
ARCH CUTTING TOOLS
970000086
970-000-086
UD-PD1-1750-4D-150
970-000-086
PD1-1750-4D-150
Weight: 5.3 LBS
Brand: ARCH CUTTING TOOLS
$964.08
(21% off)
$760.66
each
Add To My Favorites
Technical Details & Downloads
Catalog Page
Product Description

The Patriot Hp® 970 Pd1 Indexable Drill Has A Premium Tool Steel Cutter Body, Directed Coolant-Thru Channels And Electroless Nickel Coating. Together, These Premium Features Provide Longer Tool Life, Increased Chip Evacuation, Increased Rigidity And Wear Resistance While Reducing Chip Wash, Making It The First Choice For Indexable Drilling In All Iso Class Materials. With An X-Offset Design, This Versatile Drill Series Also Excels In Non-Rotating Operations Like Facing, Boring, O.D. Turning And I.D. Turning, Plus It Will Drill From A Solid, Is Capable Of Half-Cylindrical Drilling And Entering Slanted Workpieces. The Pd1 Is Available In Length To Diameter Ratios Of 2Xd, 3Xd And 4Xd In Diameters Ranging From 0.5625” (15Mm) To 2.125” (54Mm). The Drills Are Paired With Our Proprietary Patriot Hp 914 Positive Geometry, Single-Sided Inserts With 4 Cutting Edges. The New And Improved 4-Edge Insert Design Provides Excellent Chip Formation And Evacuation With Lower Spindle Loads. Plus, The Same Insert Is Used In Both The Inboard & Outboard Insert Pockets, Eliminating The Risk Of Mixing Up Inserts. Proudly Made In Flushing, Michigan Usa

  • Hardened high quality tool steel & electroless nickel coated for rigidity, wear resistance & reduced chip wash
  • New and Improved 4-edge insert design to provide excellent chip control with lower spindle loads
  • Same insert can be used as inboard & outboard insert + No risk of mixing up inner & outer
  • Engineered flute design optimized for superior chip evacuation & rigidity
  • Able to offset and drill into slant workpieces without pre-drilling
  • 2-port internal coolant system for high-efficient drilling
  • X-offset design to adjust diameter size on turning centers, and optimize tolerances on machining centers
  • Inserts sold separately

This item is part of our complete offering of ARCH Cutting Tools, trusted for high-performance CNC machining across drilling, milling, holemaking, and indexable applications. Explore Patriot HP Cutting Tools for advanced solid carbide and high-performance machining solutions, KEO Cutting Tools for precision countersinks, center drills, and holemaking tools, Ultra-Dex Cutting Tools for productive indexable milling, drilling, and insert-based machining, and Revere Cutting Tools for high-performance carbide end mills and milling solutions. Visit our main ARCH Cutting Tools page to compare tool styles, coatings, geometries, and performance options to find the right solution for your application.

Made in U.S.A.
Shipping & Delivery Options
FLUSHING, MICHIGAN, USA
  • UPS
$50.00 MINIMUM ORDER
If ordered by 2:30pm Eastern Standard Time Arch will ship same Business Day.
Factory Stock
3
Add to Cart

Additional Product Details

Technical Details

Manufacturer
ARCH CUTTING TOOLS
Manufacturer Part Number
970-000-086
Overall Length
11.040"
Shank Diameter
1.500" 1-1/2"
Tool Coating
Nickel Coated
Tool Substrate Material
Tool Steel
Uses Insert
PD1 125812
Inch Or Metric
Inch
Country of Origin
U.S.A.
Series
970 PD1
Brand
PATRIOT HP®
Screw Type
PD1-5
Shank Type
Weldon Flat Shank
Drill Diameter
1.7500" 1-3/4"
LOC Multiple
4XD
Coolant Through
Coolant Through
Depth Of Cut
7.197"
