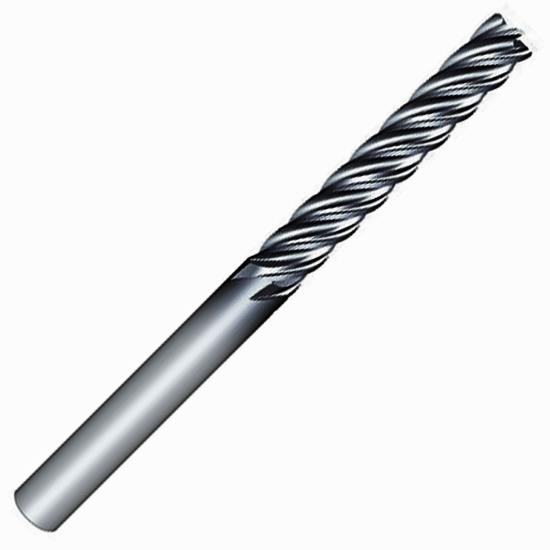

1" Diameter with .060" Radius 5 Flute Extra-Long Length Finisher. 3.0000" Length Of Cut, 5.0000" OAL, AlCrN Coated. PATRIOT HP® 976 Series, Made in USA, Part #976-000-423

1" Diameter with .060" Radius 5 Flute Extra-Long Length Finisher. 3.0000" Length Of Cut, 5.0000" OAL, AlCrN Coated. PATRIOT HP® 976 Series, Made in USA, Part #976-000-423
ARCH CUTTING TOOLS
976000423
976-000-423
KEO-976-000-423
976-000-423
976-000-423
Weight: 2 LBS
Brand: ARCH CUTTING TOOLS
$744.54
(34% off)
$489.54
each
Add To My Favorites
Technical Details & Downloads
Catalog Page
Product Description

High Performance 5 Flute Solid Carbide Square End End Mill Designed For Long Length Machining In Titanium, Stainless Steels, Alloy Steels, And Hardened Materials. Engineered With Advanced Variable Pitch Geometry And A Reinforced Core To Reduce Chatter And Improve Stability During High Efficiency Milling And Side Cutting Applications. Premium Submicron Carbide Substrate Combined With Alcrn Coated Finish Delivers Exceptional Heat Resistance, Extended Tool Life, And Superior Surface Finishes In Demanding Cnc Environments. Best Used For Increased Feed Rates And Side Milling Where Higher Flute Counts Improve Productivity Without Sacrificing Stability.

  • 5 Flute Design Made From Solid Carbide with AlCrN Coated Finish
  • Square End Geometry for Precision CNC Milling Applications
  • Long Length Configuration for Optimal Reach and Rigidity
  • Variable Pitch Design Reduces Chatter and Improves Surface Finish
  • Optimized for Titanium Stainless Steel and Alloy Steel Machining
  • Optimized for High Efficiency Milling and Increased Feed Rates
  • Ideal for Side Milling and Productivity Driven Applications
  • Made in USA

This item is part of our complete offering of ARCH Cutting Tools, trusted for high-performance CNC machining across drilling, milling, holemaking, and indexable applications. Explore Patriot HP Cutting Tools for advanced solid carbide and high-performance machining solutions, KEO Cutting Tools for precision countersinks, center drills, and holemaking tools, Ultra-Dex Cutting Tools for productive indexable milling, drilling, and insert-based machining, and Revere Cutting Tools for high-performance carbide end mills and milling solutions. Visit our main ARCH Cutting Tools page to compare tool styles, coatings, geometries, and performance options to find the right solution for your application.

Made in U.S.A.
Shipping & Delivery Options
FLUSHING, MICHIGAN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$100.00 UPS Blue 2 Business Days $19.99 4 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 2:30pm Eastern Standard Time Arch will ship same Business Day.
Factory Stock
11
Add to Cart

Additional Product Details

Technical Details

Manufacturer
ARCH CUTTING TOOLS
Manufacturer Part Number
976-000-423
Cutter Diameter
1.0000" (1")
Length Of Cut
3.0000"
Overall Length
5.0000"
Shank Diameter
1.0000" (1")
Radius Size
0.060"
Number Of Flutes
5
Helix Angle
Variable Helix
End Style
Radius
Tool Coating
AlCrN Coated
Tool Substrate Material
Carbide
Hand Cutting Direction
Right Hand
Inch Or Metric
Inch
Country of Origin
U.S.A.
Series
976
Style
Extra Long Length
Single Or Double End
Single End
Center Cutting
Center Cutting
Brand
PATRIOT HP®
Type Of End Mill
Finisher
Shank Type
Plain Shank
Shank Length
2.3750"
Coolant Through
No Coolant Holes
Helix Type
Variable Index
