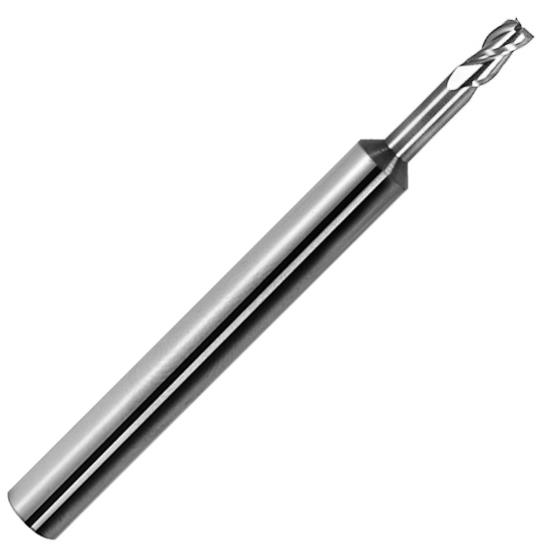

3/64" Diameter with .010" Radius 3 Flute Extended Reach 5XD REVERE® Quarter Horse Carbide End Mill. 1/4" Shank, 0.1406" LOC, 0.2300" Reach, 2.5000" OAL, Uncoated. Made in USA, Part #977-000-070

3/64" Diameter with .010" Radius 3 Flute Extended Reach 5XD REVERE® Quarter Horse Carbide End Mill. 1/4" Shank, 0.1406" LOC, 0.2300" Reach, 2.5000" OAL, Uncoated. Made in USA, Part #977-000-070
ARCH CUTTING TOOLS
977000070
977-000-070
KEO-977-000-070
977-000-070
977-000-070
Weight: 0.06 LBS
Brand: ARCH CUTTING TOOLS
$53.52
(30% off)
$37.53
each
Add To My Favorites
Technical Details & Downloads
Catalog Page
Product Description

High Performance 3 Flute Solid Carbide Square End End Mill Featuring A 1/4" Shank Engineered To Maximize Rigidity And Minimize Tool Deflection. The Quarter Horse Design Pairs A Compact Cutting Diameter With A Larger Shank To Deliver Strength, Speed, And Precision Under Aggressive Machining Conditions. Designed For Micro Machining Where Deflection Control And Rigidity Are Critical. 5Xd Extended Reach Design Provides Added Reach For Deeper Pocketing And Wall Clearance Without Sacrificing Rigidity. Optimized Flute Geometry Improves Chip Evacuation, Cutting Stability, And Surface Finish. Uncoated Substrate Delivers Sharp Cutting Edges Ideal For Aluminum And Non Ferrous Materials Requiring Clean Finishes.

  • 3 Flute Design Made From Solid Carbide with Uncoated Finish
  • Quarter Horse Design with 1/4" shank Increases Rigidity and Reduces Deflection
  • Square End Geometry for Precision CNC Milling
  • 5XD Extended Reach for Deeper Pocketing and Wall Clearance
  • Optimized for Micro Machining Applications
  • Improved Chip Evacuation Enhances Surface Finish and Tool Life
  • Made in USA

This item is part of our complete offering of ARCH Cutting Tools, trusted for high-performance CNC machining across drilling, milling, holemaking, and indexable applications. Explore Patriot HP Cutting Tools for advanced solid carbide and high-performance machining solutions, KEO Cutting Tools for precision countersinks, center drills, and holemaking tools, Ultra-Dex Cutting Tools for productive indexable milling, drilling, and insert-based machining, and Revere Cutting Tools for high-performance carbide end mills and milling solutions. Visit our main ARCH Cutting Tools page to compare tool styles, coatings, geometries, and performance options to find the right solution for your application.

Made in U.S.A.
Shipping & Delivery Options
FLUSHING, MICHIGAN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$100.00 UPS Blue 2 Business Days $19.99 4 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 2:30pm Eastern Standard Time Arch will ship same Business Day.
Factory Stock
10
Add to Cart

Additional Product Details

Technical Details

Manufacturer
ARCH CUTTING TOOLS
Manufacturer Part Number
977-000-070
Cutter Diameter
0.0469" (3/64")
Length Of Cut
0.1406"
Overall Length
2.5000"
Shank Diameter
0.2500" (1/4")
Radius Size
0.010"
Number Of Flutes
3
End Style
Radius
Tool Coating
Bright Uncoated
Tool Substrate Material
Carbide
Hand Cutting Direction
Right Hand
Inch Or Metric
Inch
Country of Origin
U.S.A.
Series
977
Style
Long Reach
Single Or Double End
Single End
Center Cutting
Center Cutting
Brand
REVERE®
Type Of End Mill
Finisher
Model
Quarter Horse
Shank Type
Plain Shank
Reach Multiple
5XD
Shank Length
2.1675"
Coolant Through
No Coolant Holes
