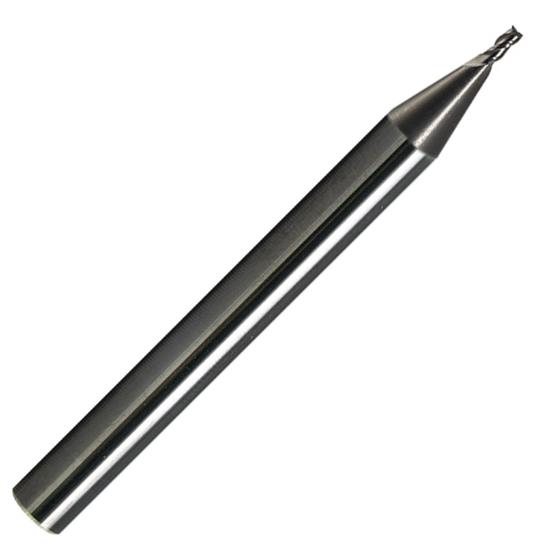

5.00mm Diameter with .30mm Radius 3 Flute Standard Length REVERE® Quarter Horse Carbide End Mill. 6mm Shank, 15mm LOC, 63.50mm OAL, Uncoated. Made in USA, Part #977-000-445

5.00mm Diameter with .30mm Radius 3 Flute Standard Length REVERE® Quarter Horse Carbide End Mill. 6mm Shank, 15mm LOC, 63.50mm OAL, Uncoated. Made in USA, Part #977-000-445
ARCH CUTTING TOOLS
977000445
977-000-445
KEO-977-000-445
977-000-445
977-000-445
Weight: 0.06 LBS
Brand: ARCH CUTTING TOOLS
$58.33
(30% off)
$40.91
each
Add To My Favorites
Technical Details & Downloads
Catalog Page
Product Description

High Performance 3 Flute Solid Carbide Square End End Mill Featuring A 6Mm Shank Engineered To Maximize Rigidity And Minimize Tool Deflection. The Quarter Horse Design Pairs A Compact Cutting Diameter With A Larger Shank To Deliver Strength, Speed, And Precision Under Aggressive Machining Conditions. Optimized For Small To Medium Diameter Machining With Improved Stability And Control. Standard Length Offers A Balanced Combination Of Reach And Rigidity For General Purpose Machining Applications. Optimized Flute Geometry Improves Chip Evacuation, Cutting Stability, And Surface Finish. Uncoated Substrate Delivers Sharp Cutting Edges Ideal For Aluminum And Non Ferrous Materials Requiring Clean Finishes.

  • 3 Flute Design Made From Solid Carbide with Uncoated Finish
  • Quarter Horse Design with 6mm shank Increases Rigidity and Reduces Deflection
  • Square End Geometry for Precision CNC Milling
  • Standard Length for Balanced Reach and Stability
  • Optimized for Small to Medium Diameter Milling Applications
  • Improved Chip Evacuation Enhances Surface Finish and Tool Life
  • Made in USA

This item is part of our complete offering of ARCH Cutting Tools, trusted for high-performance CNC machining across drilling, milling, holemaking, and indexable applications. Explore Patriot HP Cutting Tools for advanced solid carbide and high-performance machining solutions, KEO Cutting Tools for precision countersinks, center drills, and holemaking tools, Ultra-Dex Cutting Tools for productive indexable milling, drilling, and insert-based machining, and Revere Cutting Tools for high-performance carbide end mills and milling solutions. Visit our main ARCH Cutting Tools page to compare tool styles, coatings, geometries, and performance options to find the right solution for your application.

Made in U.S.A.
Shipping & Delivery Options
FLUSHING, MICHIGAN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$100.00 UPS Blue 2 Business Days $19.99 4 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 2:30pm Eastern Standard Time Arch will ship same Business Day.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
ARCH CUTTING TOOLS
Manufacturer Part Number
977-000-445
Cutter Diameter
0.1969" (5.00 mm)
Length Of Cut
0.5906" (15.00 mm)
Overall Length
2.5000" (63.50 mm)
Shank Diameter
0.2362" (6.00 mm)
Radius Size
0.0118" (0.30 mm)
Number Of Flutes
3
End Style
Radius
Tool Coating
Bright Uncoated
Tool Substrate Material
Carbide
Hand Cutting Direction
Right Hand
Inch Or Metric
Metric
Country of Origin
U.S.A.
Series
977
Style
Standard Length
Single Or Double End
Single End
Center Cutting
Center Cutting
Brand
REVERE®
Type Of End Mill
Finisher
Model
Quarter Horse
Shank Type
Plain Shank
Shank Length
1.8083" (45.93 mm)
Coolant Through
No Coolant Holes
