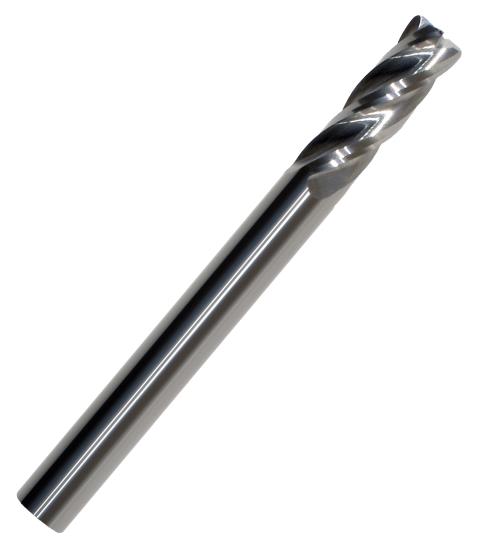

0.1875" 3/16" 4 Flute Single End .120 Corner Radius Carbide End Mill Flute Length 1-1/8", Overall Length 3" HTC-350-4183-120R
0.1875" 3/16" 4 Flute Single End .120 Corner Radius Carbide End Mill Flute Length 1-1/8", Overall Length 3" HTC-350-4183-120R
0.1875" 3/16" 4 Flute Single End .120 Corner Radius Carbide End Mill Flute Length 1-1/8", Overall Length 3" HTC-350-4183-120R
0.1875" 3/16" 4 Flute Single End .120 Corner Radius Carbide End Mill Flute Length 1-1/8", Overall Length 3" HTC-350-4183-120R
3504183120R
350-4183-120R
Weight: 0.0135 LBS
Brand: HTC TOOL-CUTTER MFG
$19.39
each
IF IN STOCK WILL SHIP WITHIN 1 BUSINESS DAY
Stock
Item
Stock
Item
Additional Product Details
Technical Details
- Manufacturer
- HTC TOOL-CUTTER MFG
- Manufacturer Part Number
- 350-4183-120R
- Tool Diameter
- 0.1875" 3/16"
- Length Of Cut
- 1.1250" 1-1/8"
- Overall Length
- 3.0000" 3"
- Shank Diameter
- 0.1875" 3/16"
- Radius Size
- 0.120"
- Number Of Flutes
- 4
- Helix Angle
- 30°
- End Style
- Radius
- Tool Coating
- None
- Primary Application
- General Purpose
- Country of Origin
- U.S.A.
- Series
- HTC-350
- Single Or Double End
- Single End
