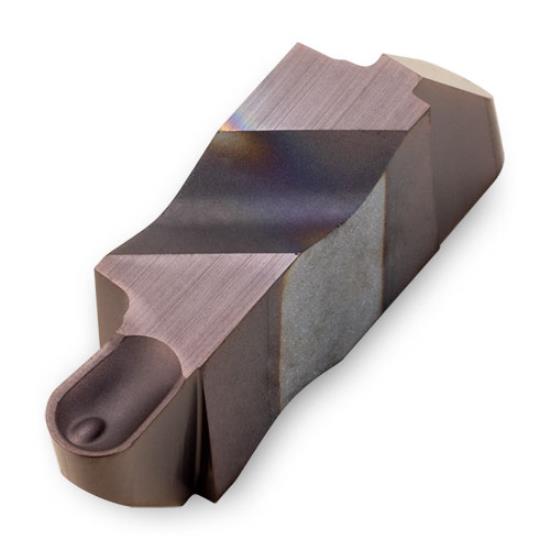

FLR-3062R-CB TT9010 I-Notch Grooving Insert

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
FLR-3062R-CB TT9010 I-Notch Grooving Insert FLR-3062R-CB TT9010 I-Notch Grooving Insert
INGERSOLL CUTTING TOOLS
2416481
2416481
FLR-3062R-CB TT9010
FLR-3062R-CB TT9010
Brand: INGERSOLL CUTTING TOOLS
$29.80
(5% off)
$28.44
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

Flr-3062R-Cb Tt9010 I-Notch Grooving Insert Iso Item #Flr-3062R-Cb Tt9010 Ingersoll Part #2416481 Ssc - Insert Seat Size: 3. Wb - Body Width: 0.195. Cdx - Cutting Depth Max.: 0.180. Re - Corner Radius: 0.062. Ih - Insert Hand: Right. Noi - Number Of Indexes: 2. Cw - Cutting Width: 0.125. S - Thickness: 0.344. Feedgn - Grooving Feed Min.: 0.004. Feedgx - Grooving Feed Max.: 0.014. Ssc - Insert Seat Size: 3. Wb - Body Width: 0.195. Cdx - Cutting Depth Max.: 0.180. Cw - Cutting Width: 0.125. Re - Corner Radius: 0.062. Ih - Insert Hand: Right. Noi - Number Of Indexes: 2. S - Thickness: 0.344. Feedgn - Grooving Feed Min.: 0.004. Feedgx - Grooving Feed Max.: 0.014.

  • Double-ended inserts for grooving
  • Patented chipbreaker
  • Full radius
  • Double-ended inserts for grooving
  • Patented chipbreaker
  • Full radius
  • Standard Groove Depth
  • For Grooving & Threading.
  • .500-2.000" Shank
  • Coolant Thru
  • Standard Groove Depth
  • Perpendicular for Grooving & Threading
  • .750-1.250" Shank
  • Standard Groove Depth
  • For Grooving & Threading
  • .750-1.250" Shank
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
2416481
Radius Size
0.062"
Hand
Right
Grade
TT9010
