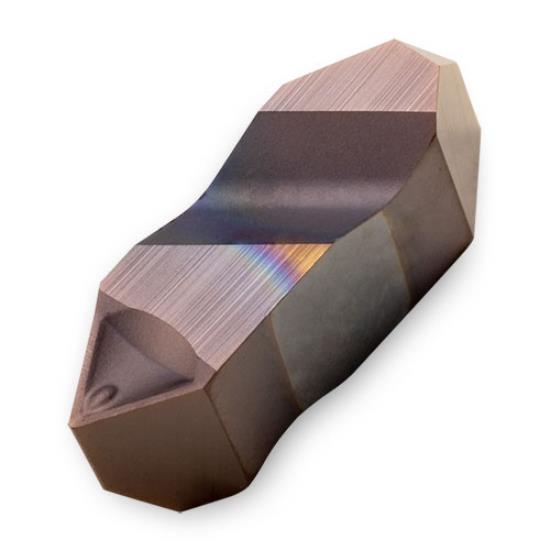

FLT-3L-CB TT9010 I-Notch Threading Insert
This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
2416565
2416565
FLT-3L-CB TT9010
FLT-3L-CB TT9010
Weight: 0.2 LBS
Brand: INGERSOLL CUTTING TOOLS
Product Description
Flt-3L-Cb Tt9010 I-Notch Threading Insert Iso Item #Flt-3L-Cb Tt9010 Ingersoll Part #2416565 Ssc - Insert Seat Size: 3. Wb - Body Width: 0.195. Tpin - Threads Per Inch Min. External: 8. Tpix - Threads Per Inch Max. External: 20. Tpin2 - Threads Per Inch Min. 2 Internal: 8. Tpix2 - Threads Per Inch Max. 2 Internal: 12. Nt - Tooth Count: 1. Re - Corner Radius: 0.007. Pdx - Profile Distance Ex: 0.098. Pna - Profile Included Angle: 60. S - Insert Thickness: 0.344. Ih - Insert Hand: Left. Thft - Thread Form Type: Vp60 - V-Profile 60°. Tpt - Thread Profile Type: Partial. Noi - Number Of Indexes: 2. Ssc - Insert Seat Size: 3. Wb - Body Width: 0.195. Tpin - Threads Per Inch Min. External: 8. Tpix - Threads Per Inch Max. External: 20. Tpin2 - Threads Per Inch Min. 2 Internal: 8. Tpix2 - Threads Per Inch Max. 2 Internal: 12. Nt - Tooth Count: 1. Re - Corner Radius: 0.007. Pdx - Profile Distance Ex: 0.098. Pna - Profile Included Angle: 60. S - Insert Thickness: 0.344. Ih - Insert Hand: Left. Thft - Thread Form Type: Vp60 - V-Profile 60°. Ttp - Thread Type: External & Internal. Tpt - Thread Profile Type: Partial. Noi - Number Of Indexes: 2.
- Double-ended inserts for threading
- 60 Degree V partial profile
- Patented chipbreaker
- FCB-Finishing in softer materials
- CB-General purpose
- HCB-Heavier depths of cut
- Double-ended inserts for threading
- 60deg V partial profile
- Patented chipbreaker
- FCB-Finishing in softer materials
- CB-General purpose
- HCB-Heavier depths of cut
- Standard Groove Depth
- For Grooving & Threading.
- .500-2.000" Shank
- Coolant Thru
- Standard Groove Depth
- Perpendicular for Grooving & Threading
- .750-1.250" Shank
- Standard Groove Depth
- For Grooving & Threading
- .750-1.250" Shank
Shipping & Delivery Options
Illinois
Suncoast Shipping Deals
| Min. order amount |
Shipping Option |
Special Rate |
Max Weight |
|
$50.00
|
UPS Blue 2 Business Days |
$19.99 |
5 LBS |
| Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout. |
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Additional Product Details
Technical Details
- Manufacturer
- INGERSOLL CUTTING TOOLS
- Manufacturer Part Number
- 2416565
- Hand
- Left
