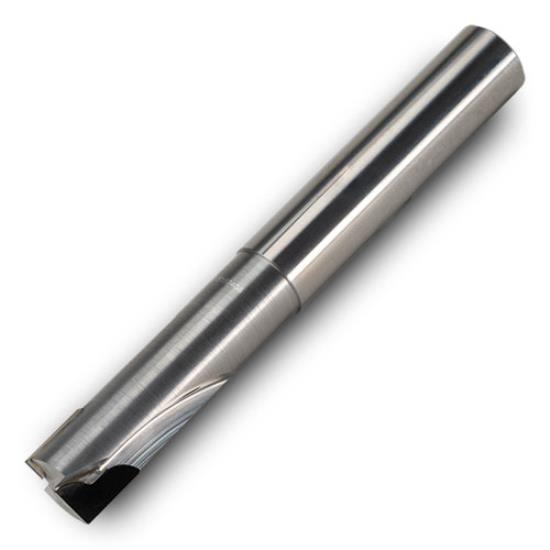

Ebsti15z01cm05l10c01 Tedi Brazed End Mill Pcd Dc - Cutting Diameter : 0.156. Apmx - Depth Of Cut Max.: 0.394. Oal - Overall Length: 2.64. Zeff - Eff. Teeth: 1. Dcon - Shank Diameter : 5.00 Mm. Csp - Coolant: Yes. Kapr - Cutting Edge Angle: 90.0. Hand - Hand: Right. Lux - Usable Length Max.: 1.39. Bs - Wiper Length: 0.079. Bch - Corner Chamfer Length: 0.004. Kch - Corner Chamfer Angle: 45. Dc - Cutting Dia.: 0.156. Apmx - Depth Of Cut Max.: 0.394. Oal - Overall Length: 2.64. Zeff - Eff. Teeth: 1. Dcon - Shank Dia.: 5.00 Mm. Csp - Coolant: Yes. Kapr - Cutting Edge Angle: 90.0. Hand - Hand: Right. Lux - Usable Length Max.: 1.39. Bs - Wiper Length: 0.079. Bch - Corner Chamfer Length: 0.004. Kch - Corner Chamfer Angle: 45.

• 0.1875-.500"
• Carbide Cylindrical Shanks
• 0.787" Max. DOC
• 0.1875-.500"
• Carbide Cylindrical Shanks
• 0.787" Max. DOC
• DIN 6499/ISO 15488-B Collet
• Single Diameter (Metric)
• 8 Slot Rubber Sealed Design with 4 Cooling Jets directing coolant flow to the cutting edge
• AA High Precision
• 0.005 mm TIR
• Collapse Range 0.2 mm Max
• Super Finish Surface with Anti-Corrosion protection
• 100 Bar Max
• For use with solid shank cutting tools
• Recommended for improved runout & clamping torque
• ER Series DIN 6499 /ISO15488-B Spring Collet
• Inch/Metric Combination
• .0004" TIR
• Hard Touch Coated
• NOTE: ER11 COLLETS SHOWN WITH .039" (1 mm) CLAMPING RANGE HAVE BEEN PHASED OUT AND REPLACED WITH .020" (0.5 mm) CLAMPING RANGE
• ER Series DIN 6499 Spring Collet
• Inch/Metric Combination
• AA High Precision
• .0002" TIR
• Hard Touch coated
• ER11 Series DIN 6499 Spring Collet
• Combination Inch/Metric
• AA High Precision
• .0002" TIR
• Hard Touch coated
• OBSOLETE - See SC*HYDRO*HD
• Sealed Reduction Sleeve (Metric)
• For use in hydraulic milling chucks
• Note: Sleeves are compatible with all cylindrical shanks and flatted shanks 6-20 mm diameter (Sleeves are not recommended for use with flatted shanks over 20 mm diameter)
• Sealed Reduction Sleeve (Inch to Metric)
• For use in hydraulic milling chucks
• Max Runout 0.0001"
• Note: Sleeves are compatible with all cylindrical shanks and Weldon shanks .250"-.750" diameter (Sleeves are not recommended for use with Weldon shanks over .750" diameter)
• Sealed Reduction Sleeve (Metric)
• For use in hydraulic milling chucks
• Runout Accuracy <0.003 mm
• Max Coolant Pressure 85 Bar
• Note: Sleeves are compatible with all cylindrical shanks and flatted shanks 6-20 mm diameter (Sleeves are not recommended for use with flatted shanks over 20 mm diameter)
