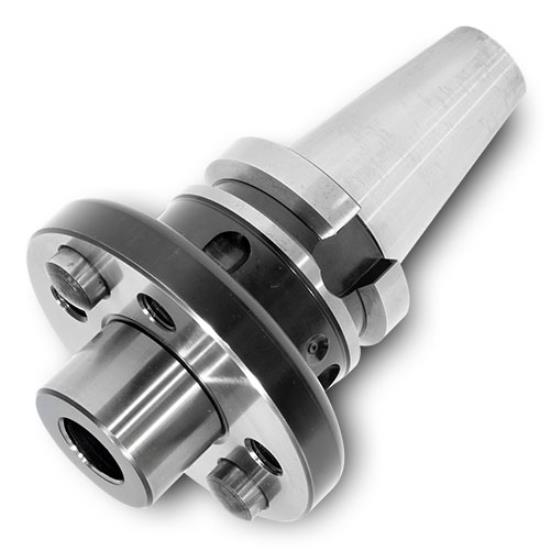

API440BC22100 TediMill Holder
This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
2901860
2901860
API440BC22100
API440BC22100
Weight: 0.013 LBS
Brand: INGERSOLL CUTTING TOOLS
Product Description
Api440bc22100 Tedimill Holder Iso Item #Api440bc22100 Ingersoll Part #2901860 G - Connection Code Workpiece Side: Bt40. D2 - Connection Code Workpiece Side: It.Te.Di. 22 Mm Pilot (Type B). H1 - Gauge Length: 100.00 Mm. D1 - Hub Diameter : 58.00 Mm. H2 - Pilot Length: 19.00 Mm. G2 - Lock Screw Thread: M10. Lf - Functional Length: 100.0 Mm. Ccms - Connection Code Machine Side: Bt40. Dcon - Connection Dia Workpiece Side: 22.00 Mm. Bd - Body Dia.: 58.00 Mm. Lsc - Clamping Length: 19.0 Mm. Pin - Drive Pin Size: 10.4 Mm. Holder Shape: B. Tdz2 - Thread Size 2: M10. Cnsc - Coolant Entry Style Code: 1. Cxsc - Coolant Exit Style Code: 1. Dcp - Data Chip Provision: No.
- MAS 403
- For Metric and Inch Face Mills
- MAS 403
- For Metric and Inch Face Mills
- 02.000-10.000"
- 3 or 6 mm Depth of cut
- Aluminum or steel bodies
- 02.000-10.000"
- 3 or 6 mm Depth of cut
- Aluminum or steel bodies
- 040-400 mm
- 3 or 6 mm Depth of cut
- Aluminum, titanium, or steel bodies
- 040-400 mm
- 3 or 6 mm Depth of cut
- Aluminum, titanium, or steel bodies
- 02.500-10.000"
- 0.43" Max. Depth of Cut
- Bi-metal or steel bodies
- 02.500-10.000"
- 0.43" Max. Depth of Cut
- Steel or bi-metal cutter bodies
- 02.500-5.000"
- 0.43" Max. Depth of Cut
- 02.50-5.00" Fixed Pocket Face Mill
- 0.43" Max DOC
- 063-250 mm
- 11 mm Max. Depth of Cut
- Bi-metal or steel bodies
- 063-250 mm
- 0.43" Max. Depth of Cut
- Bi-metal or steel bodies
- 02.000-5.000"
- 0.16" Max. Depth of Cut
- Aluminum or bi-metal bodies
- 050-125 mm
- 4 mm Max. Depth of Cut
- Bi-metal or steel bodies
- 02.000-5.000"
- 0.16" Max. Depth of Cut
- Bi-metal or steel bodies
- 050-125 mm
- 4 mm Max. Depth of Cut
- Bi-metal or steel bodies
